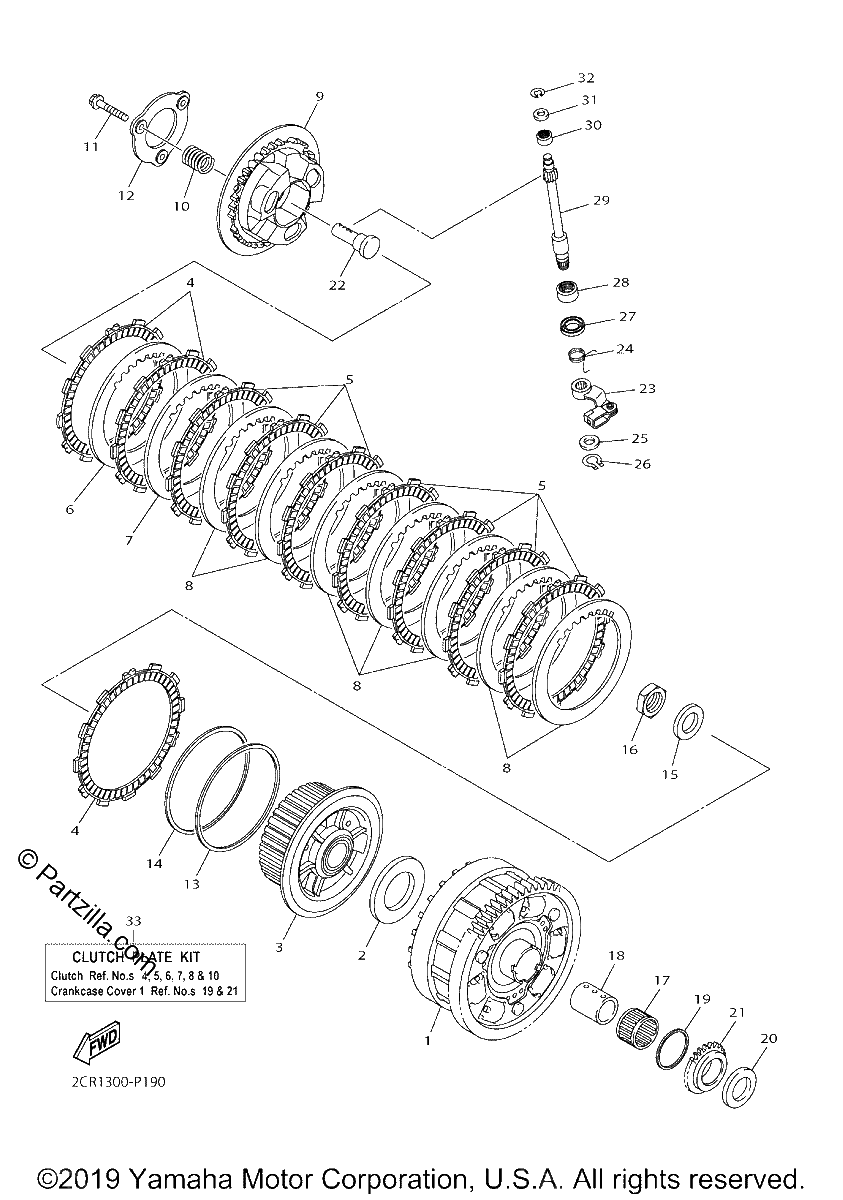

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PRIMARY DRIVEN GEAR COMP.
$552.30¢276 150
#2
PLATE, THRUST 1
$17.01¢8 506
#3
BOSS, CLUTCH
$172.11¢86 056
#4
PLATE, FRICTION 2
$29.98¢14 988
#5
PLATE, FRICTION
$27.07¢13 538
#6
PLATE, CLUTCH 1
$8.03¢4 013
#7
PLATE, CLUTCH 2 | (T 2.3)
$12.65¢6 325
#7
PLATE, CLUTCH 2 | UR (T 2.0)
$9.05¢4 525
#7
PLATE, CLUTCH 2 | UR (T 2.6)
$9.05¢4 525
#8
PLATE, CLUTCH 2 | (T 2.3)
$12.65¢6 325
#9
PRESSURE PLATE ASSY
$146.58¢73 288
#10
SPRING, COMPRESSION
$13.70¢6 850
#11
SCREW, SPRING
$2.97¢1 487
#12
PLATE, PRESSURE 2
$9.51¢4 756
#13
PLATE, SEAT
$8.03¢4 013
#14
SPRING, CUSHION
$26.96¢13 481
#15
WASHER, CONICAL SPRING
$17.49¢8 744
#16
NUT
$15.14¢7 569
#17
BEARING
$38.89¢19 444
#18
SPACER 1
$62.41¢31 206
#19
WASHER, PLATE
$8.38¢4 188
#20
PLATE, THRUST 1
$12.98¢6 488
#21
SPROCKET, DRIVE
$133.20¢66 600
#22
ROD, PUSH 1
$61.08¢30 538
#23
PUSH LEVER ASSY
$33.27¢16 638
#24
SPRING, TORSION
$5.07¢2 537
#25
WASHER, PLATE
$7.48¢3 738
#26
CIRCLIP
$4.65¢2 325
#27
OIL SEAL
$8.73¢4 363
#28
BEARING
$17.49¢8 744
#29
AXLE, PUSH LEVER
$75.65¢37 825
#30
BEARING
$23.80¢11 900
#31
WASHER, PLATE
$2.99¢1 494
#32
CIRCLIP
$3.60¢1 800
#33
Clutch Plate Kit
$477.49¢238 744
