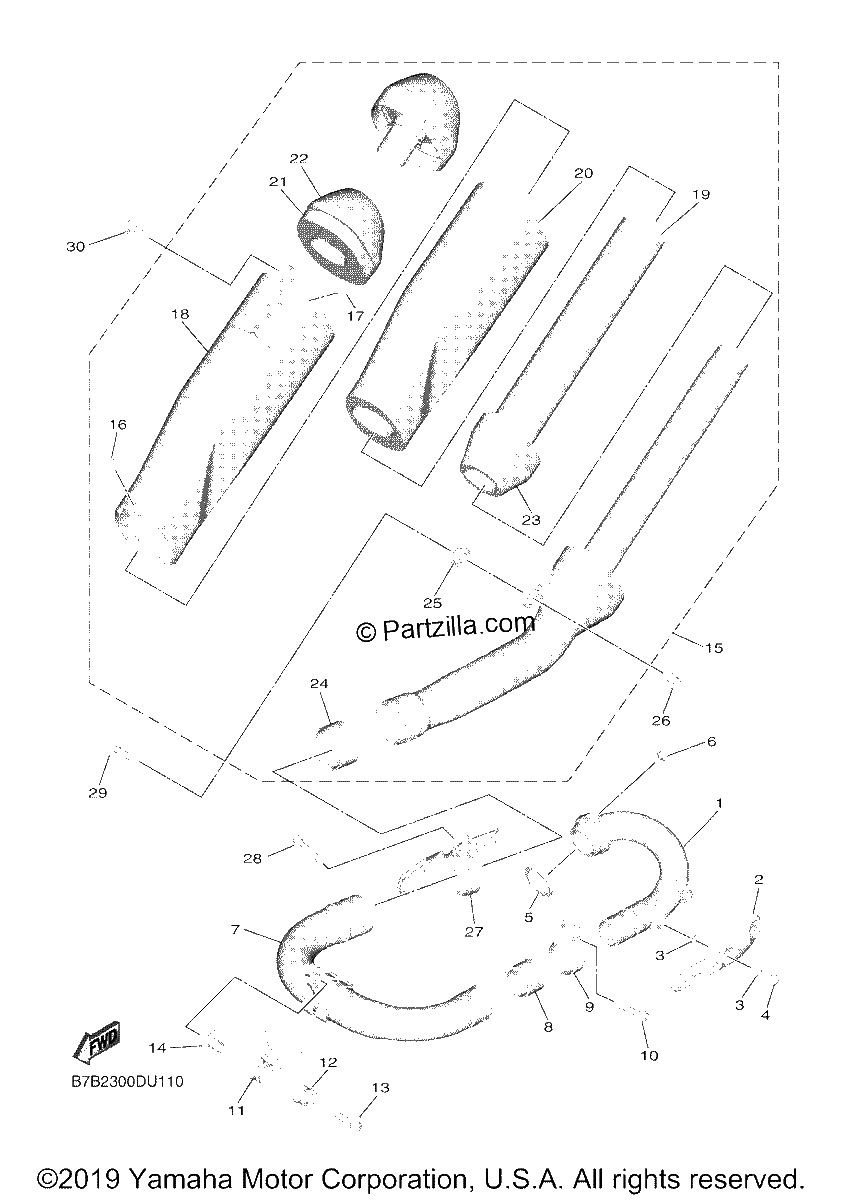

EXHAUST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PIPE, EXHAUST 1
$196.59¢98 296
#2
Protector, Exhaust Pipe
$25.89¢12 943
#3
WASHER, PLATE
$6.88¢3 439
#4
SCREW,BIND (replaces 98902-06010-00)
$6.43¢3 214
#5
GASKET, EXHAUST PIPE
$13.48¢6 739
#6
NUT, FLANGE
$2.16¢1 081
#7
PIPE, EXHAUST 2
$201.93¢100 964
#8
GASKET, SILENCER
$15.16¢7 578
#9
BAND, SILENCER
$22.18¢11 092
#10
BOLT, FLANGE DEEP RECESS
$1.45¢724
#11
STAY, EXHAUST PIPE 1
$21.65¢10 827
#12
DAMPER, MUFFLER
$13.48¢6 739
#13
BOLT, WITH WASHER
$5.31¢2 657
#14
COLLAR
$8.14¢4 071
#15
Silencer Assy
$731.39¢365 694
#16
BOLT, HEXAGON SOCKET HEAD
$7.11¢3 553
#17
Rivet, Blind
$5.69¢2 846
#18
BODY, SILENCER
$296.26¢148 132
#19
FIBER
$214.44¢107 220
#20
FIBER 2
$88.99¢44 494
#21
FIBER
$7.54¢3 772
#22
FIBER 4
$47.90¢23 949
#23
FIBER 5
$47.92¢23 960
#24
GASKET, MUFFLER
$28.15¢14 076
#25
Grommet
$20.76¢10 379
#26
Collar
$8.56¢4 278
#27
BAND, MUFFLER
$67.75¢33 873
#28
BOLT, FLANGE DEEP RECESS
$1.45¢724
#29
BOLT, WITH WASHER
$4.37¢2 185
#30
BOLT, WITH WASHER
$3.76¢1 880
