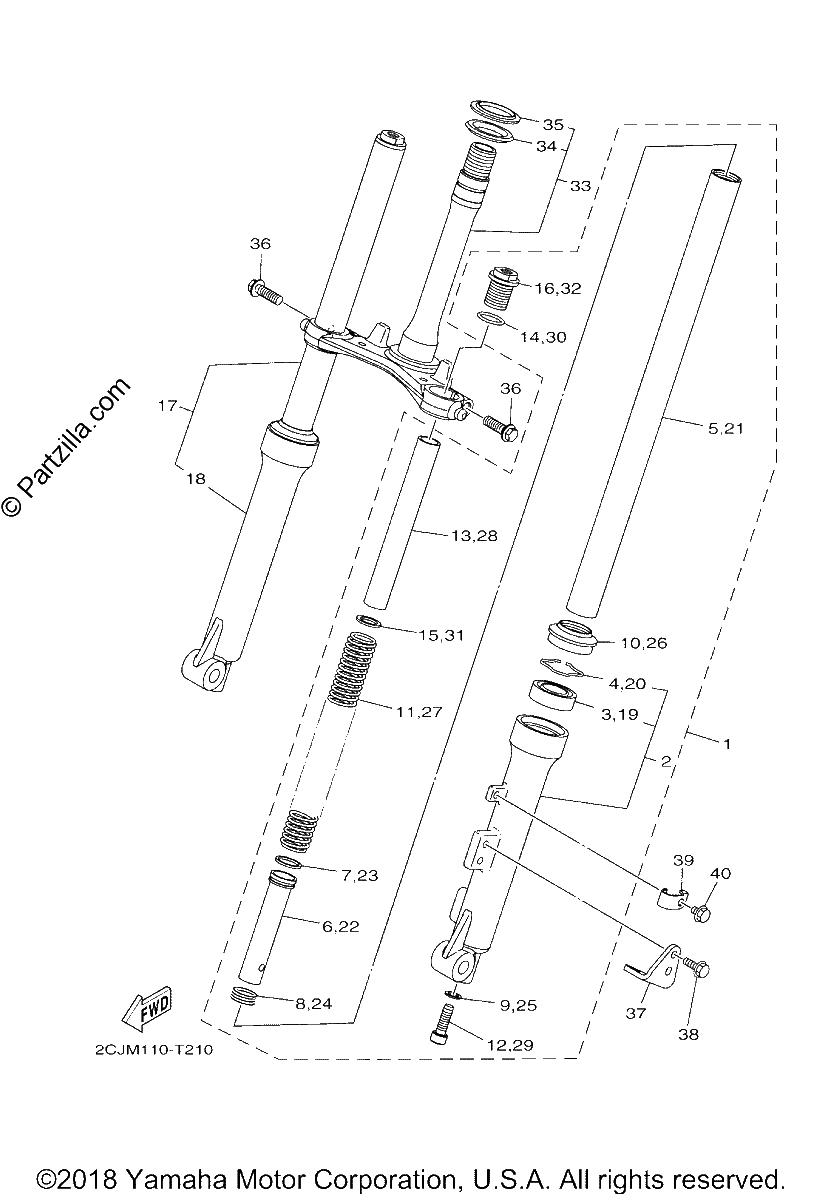

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$273.39¢136 694
#2
. .OUTER TUBE COMP.
$168.65¢84 325
#3
OIL SEAL (replaces BE8-F3145-00-00)
$11.70¢5 850
#4
. . ..RING, SNAP
$3.67¢1 838
#5
. . INNER TUBE COMP. 1
$131.18¢65 588
#6
. .PISTON, FRONT FORK
$32.69¢16 344
#7
RING, PISTON
$4.40¢2 200
#8
SPRING, REBOUND
$9.81¢4 906
#9
GASKET (replaces 2SA-F3479-00-00)
$3.77¢1 888
#10
SEAL, DUST (replaces BE8-F3144-00-00)
$9.04¢4 519
#11
. .SPRING, FRONT FORK
$31.29¢15 644
#12
. .BOLT 2
$4.59¢2 294
#13
. .SPACER
$15.74¢7 869
#14
O-RING (replaces 2SA-F3147-00-00)
$0.86¢431
#15
. .WASHER
$3.16¢1 581
#16
. .NUT
$33.50¢16 750
#17
FRONT FORK ASSY (R.H)
$267.01¢133 506
#18
. .OUTER TUBE COMP.
$168.65¢84 325
#19
OIL SEAL (replaces BE8-F3145-00-00)
$11.70¢5 850
#20
. . ..RING, SNAP
$3.67¢1 838
#21
. . INNER TUBE COMP. 1
$131.18¢65 588
#22
. .PISTON, FRONT FORK
$32.69¢16 344
#23
RING, PISTON
$4.40¢2 200
#24
SPRING, REBOUND
$9.81¢4 906
#25
GASKET (replaces 2SA-F3479-00-00)
$3.77¢1 888
#26
SEAL, DUST (replaces BE8-F3144-00-00)
$9.04¢4 519
#27
. .SPRING, FRONT FORK
$31.29¢15 644
#28
. .SPACER
$15.74¢7 869
#29
. .BOLT 2
$4.59¢2 294
#30
O-RING (replaces 2SA-F3147-00-00)
$0.86¢431
#31
. .WASHER
$3.16¢1 581
#32
. .NUT
$33.50¢16 750
#33
UNDER BRACKET COMP.
$488.03¢244 013
#34
. .SEAL, DUST
$9.26¢4 631
#35
RACE, BALL 1
$27.29¢13 644
#36
BOLT, FLANGE
$3.57¢1 787
#37
HOLDER
$20.14¢10 069
#38
BOLT, FLANGE
$3.14¢1 569
#39
HOLDER 2
$4.05¢2 025
#40
BOLT, FLANGE
$7.46¢3 731
