STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

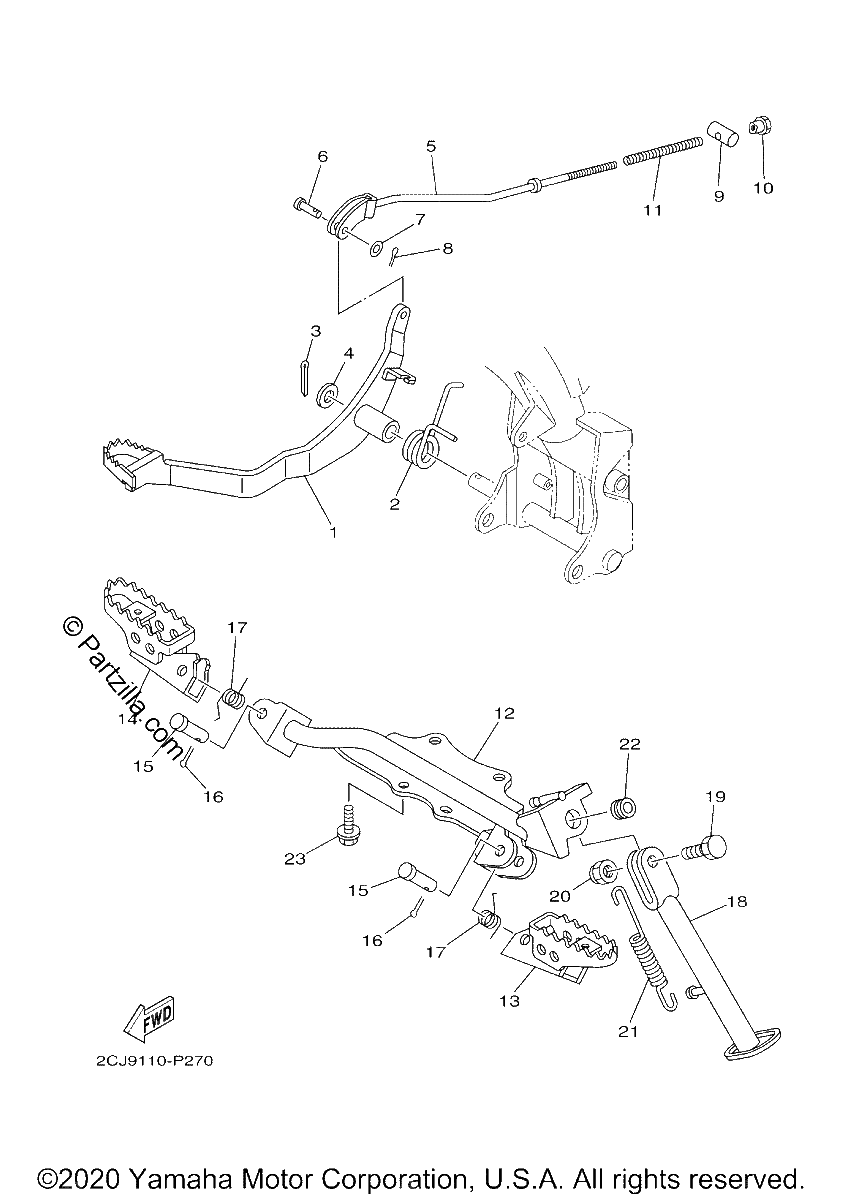

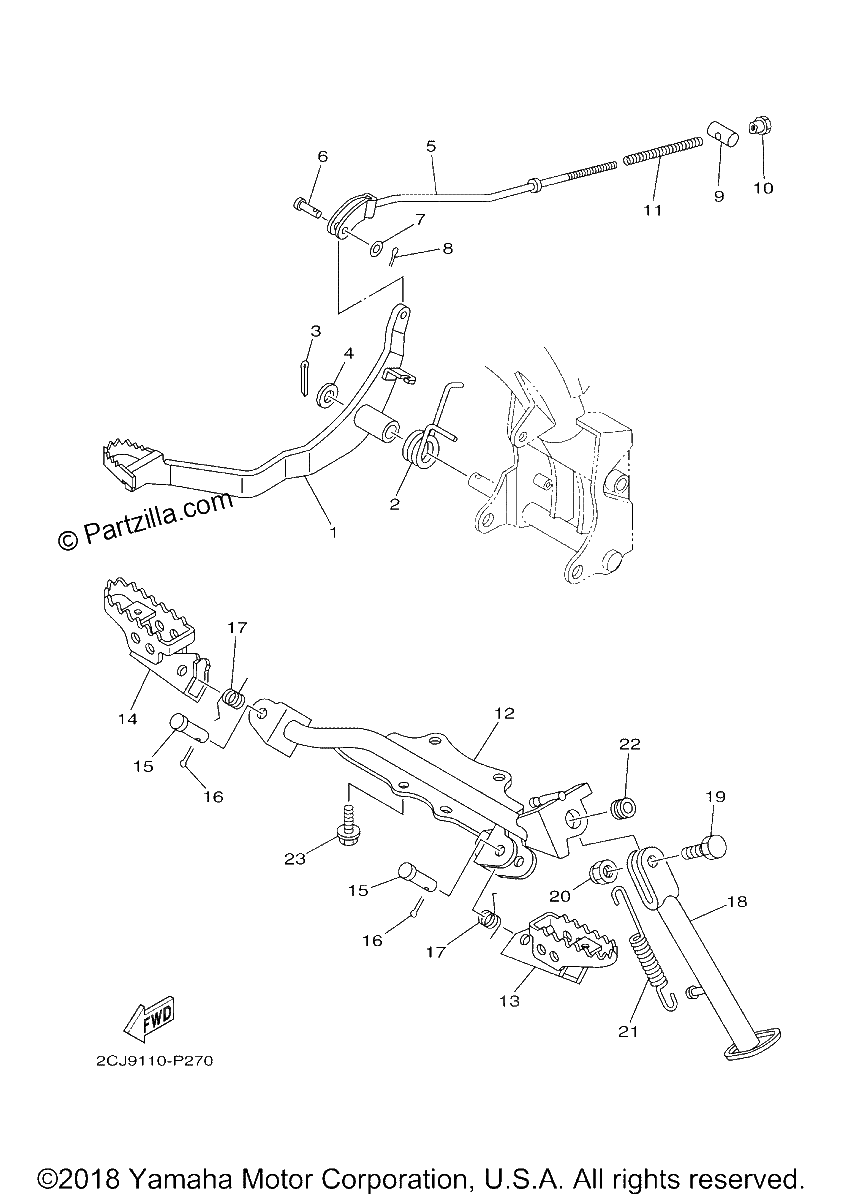

Diagrama de STAND FOOTREST

Repuestos

#1
1P6-F7211-01-00
PEDAL, BRAKE
$55.61¢27 807
1
#2
90508-40805-00
Spring, Torsion
$10.68¢5 342
1
#3
91490-20025-00
PIN,COTTER (replaces 91402-20020-00)
$1.44¢719
1
#4
92907-12600-00
WASHER (replaces 92902-12600-00)
$1.35¢673
1
#5
1P6-F7231-01-00
Rod, Brake
$27.91¢13 955
1
#6
91701-06018-00
PIN,CLEVIS (replaces 91702-06018-00)
$4.91¢2 455
1
#7
92990-06200-00
WASHER, PLAIN
$0.89¢443
1
#8
91402-20015-00
PIN, COTTER
$2.02¢1 012
1
#9
90249-12008-00
PIN
$6.75¢3 375
1
#10
90179-06826-00
NUT
$4.48¢2 242
1
#11
90501-10806-00
SPRING, COMPRESSIO
$3.82¢1 909
1
#12
1P6-F7411-00-00
FOOTREST 1
$39.19¢19 596
1
#13
1P6-F7451-01-00
Footrest
$48.98¢24 489
1
#14
1P6-F7461-01-00
Footrest
$52.59¢26 295
1
#15
90240-10002-00
Pin, Clevis
$5.54¢2 772
1
#16
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#17
1P6-F7456-01-00
Spring, Return
$3.96¢1 978
1
#18
1P6-F7311-00-00
STAND, SIDE
$66.76¢33 379
1
#19
90101-10003-00
bolt
$7.51¢3 755
1
#20
90185-10037-00
NUT,SELF-LOCKING
$7.30¢3 651
1
#21
90506-25802-00
Spring, Tension
$7.52¢3 760
1
#22
90387-10003-00
Collar
$23.36¢11 678
1
#23
95812-08020-00
Bolt, Flange
$1.85¢926
1
