FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

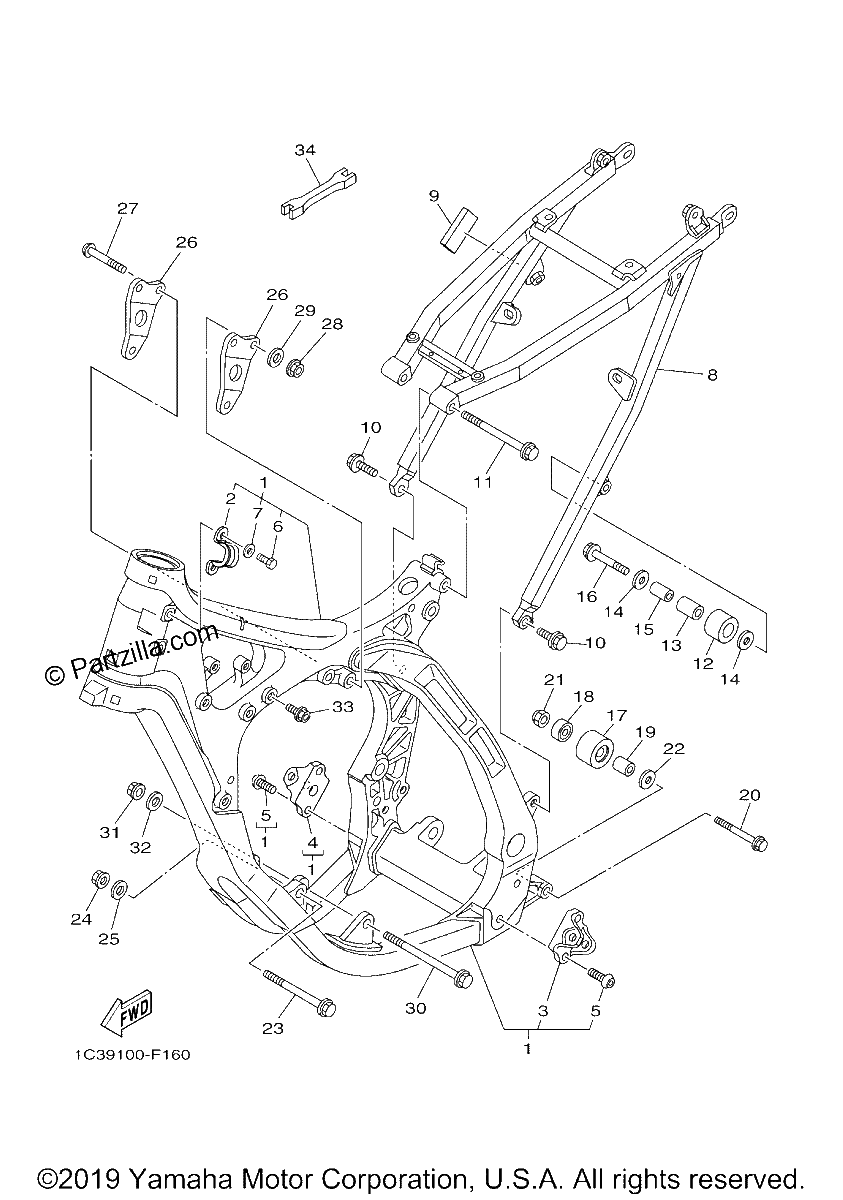

Diagrama de FRAME

Repuestos

#1
1SR-21101-00-00
FRONT FRAME COMP.
$2296.54¢1 148 269
1
#2
1C3-21336-00-00
CLAMP, WIRE HARNESS 2
$9.65¢4 824
1
#3
1C3-21447-10-00
BRACKET, FOOTREST
$35.53¢17 768
1
#4
1C3-21448-10-00
BRACKET, FOOTREST
$35.53¢17 768
1
#5
90149-10033-00
SCREW
$5.97¢2 984
1
#6
97017-05012-00
BOLT
$6.75¢3 375
1
#7
92904-05600-00
WASHER
$0.61¢305
1
#8
1SS-21190-00-00
REAR FRAME COMP.
No Disponible
1
#9
5GJ-21717-00-00
DAMPER
$5.40¢2 702
1
#10
90105-08085-00
BOLT, FLANGE
$5.54¢2 772
1
#11
90105-08132-00
BOLT, FLANGE
$4.22¢2 110
1
#12
30X-22178-00-00
TENSIONER
$34.55¢17 273
1
#13
4V4-22184-00-00
BUSH
$3.90¢1 949
1
#14
90201-08045-00
WASHER, PLATE
$5.21¢2 605
1
#15
90387-08041-00
COLLAR
$7.38¢3 691
1
#16
95024-08040-00
Bolt, Flange
$6.75¢3 375
1
#17
3JD-22178-20-00
TENSIONER
$42.53¢21 263
1
#18
93300-60839-00
BEARING
$12.25¢6 124
1
#19
90387-086N4-00
COLLAR
$9.12¢4 560
1
#20
95024-08060-00
BOLT, FLANGE SMALL HEAD)
$6.45¢3 226
1
#21
90185-08009-00
NUT, SELF-LOCKING
$7.44¢3 720
1
#22
90201-08043-00
WASHER, plate
$6.32¢3 162
1
#23
90105-10175-00
BOLT, FLANGE
$9.51¢4 755
1
#24
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#25
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.14¢1 570
1
#26
1C3-21425-00-00
BRACKET, REAR UPPER 1
$37.88¢18 940
1
#27
90111-08028-00
BOLT, HEX. SOCKET BUTTON
$5.47¢2 737
1
#28
90179-08674-00
NUT(4KM)
$6.23¢3 117
1
#29
90201-08055-00
WASHER, PLATE
$6.76¢3 381
1
#30
90105-10176-00
BOLT, FLANGE
$10.51¢5 256
1
#31
90179-10658-00
NUT,SPEC'L SHAPE
$8.49¢4 244
1
#32
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.14¢1 570
1
#33
1C3-21244-20-00
NUT
$16.07¢8 033
1
#34
5ET-28166-10-00
WRENCH, HEXAGON
$32.07¢16 037
1
