REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

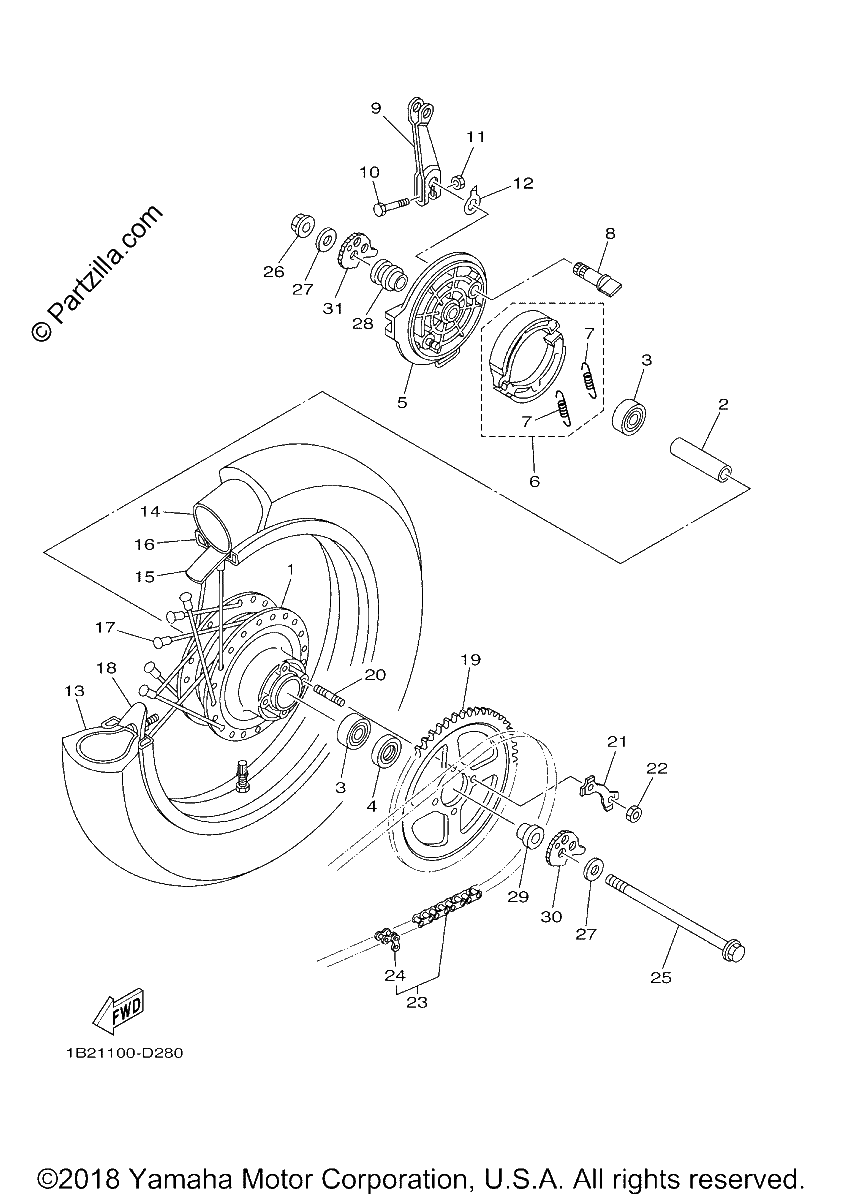

Diagrama de REAR WHEEL

Repuestos

#1
1B2-F5311-00-35
Hub, Rear
$155.28¢77 642
1
#2
90560-12170-00
SPACER
$16.95¢8 476
1
#3
93306-301YY-00
BEARING
$20.56¢10 281
1
#4
93106-20809-00
Oil Seal
$12.09¢6 043
1
#5
1B2-F5321-00-35
PLATE, brake shoe
$97.15¢48 576
1
#6
4KN-W253E-11-00
BRAKE SHOE KIT
$24.55¢12 276
1
#7
90506-15260-00
SPRING,TENSION
$6.30¢3 151
1
#8
1B2-F5151-00-00
Camshaft
$20.94¢10 471
1
#9
55K-25355-00-00
LEVER, CAMSHAFT (replaces 5HH-F5355-01-00)
$38.51¢19 257
1
#10
97017-06030-00
BOLT
$3.29¢1 644
1
#11
95317-06600-00
NUT
$2.96¢1 478
1
#12
2JX-2533A-00-00
PLATE,INDICATOR
$8.28¢4 140
1
#13
94109-16019-00
Tire
$79.41¢39 704
1
#14
94209-16003-00
TUBE (90/100-16M) IR
$27.19¢13 593
1
#15
94330-16058-00
BAND, RIM (1.60-16)
$19.93¢9 965
1
#16
94416-16003-00
RIM (1.60-16) (replaces 94416-16803-00)
$191.88¢95 939
1
#17
1B2-F5304-10-00
SPOKE SET, REAR
$54.68¢27 341
1
#18
1B2-F5394-00-00
SPACER, BEAD
$47.55¢23 776
1
#19
1B2-F5454-21-00
SPROCKET, DRIVEN (
$83.62¢41 808
1
#20
90116-10013-00
BOLT, stud
$6.43¢3 214
1
#21
5RM-F5412-00-00
WASHER
$2.50¢1 248
1
#22
90170-10206-00
NUT,HEXAGON
$2.90¢1 449
1
#23
9Y582-51121-00
CHAIN (replaces 94580-88122-00)
$111.54¢55 769
1
#24
94681-97001-00
JOINT, CHAIN
$4.98¢2 490
1
#25
1B2-F5381-10-00
AXLE, WHEEL
$22.05¢11 023
1
#26
95607-12200-00
NUT, SELF-LOCKING
$5.93¢2 967
1
#27
90201-126A7-00
WASHER, PLATE
$6.88¢3 439
1
#28
1B2-F5383-00-00
COLLAR, WHEEL
$11.73¢5 865
1
#29
90387-127E0-00
COLLAR (replaces 90387-12670-00)
$8.28¢4 140
1
#30
1B2-F5388-00-00
PULLER, CHAIN 1
$7.59¢3 795
1
#31
1B2-F5389-00-00
PULLER, CHAIN 2
$5.65¢2 823
1
