REAR ARM SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

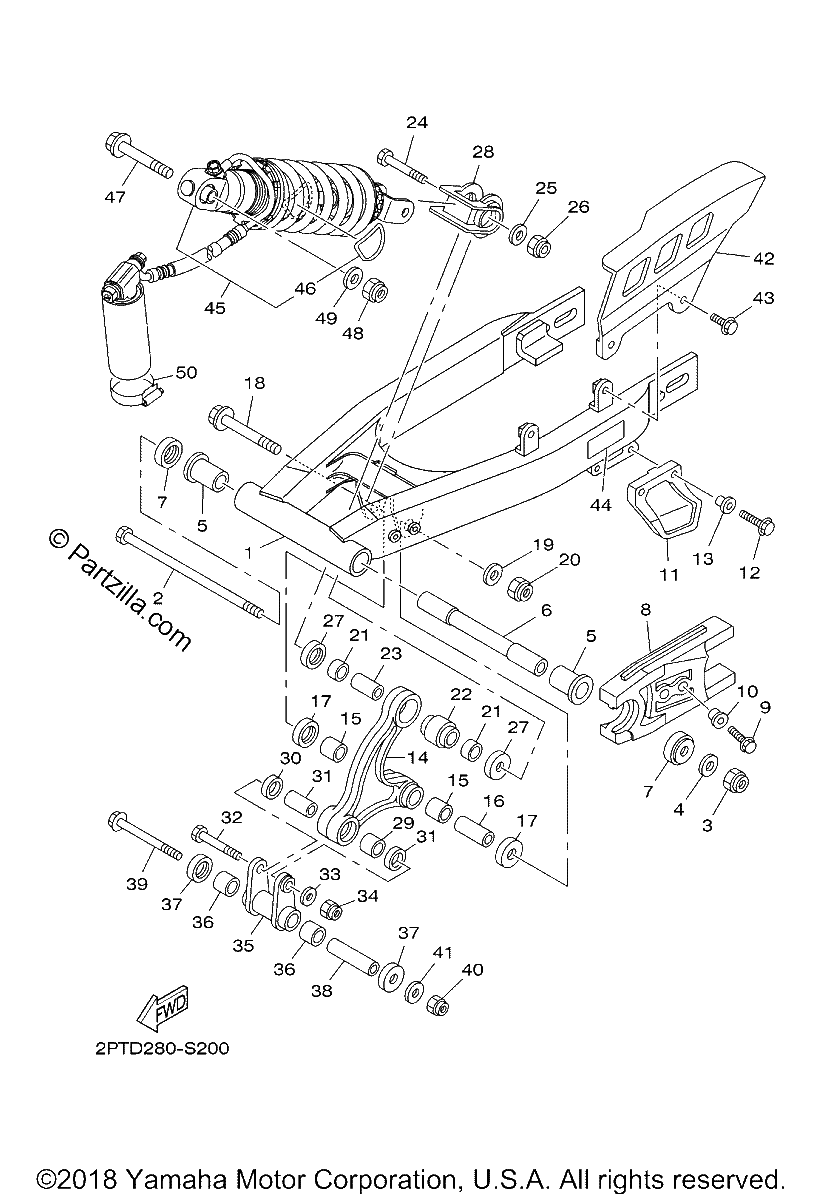

Diagrama de REAR ARM SUSPENSION

Repuestos

#1
5HP-22110-20-00
REAR ARM COMP.
$1030.39¢515 194
1
#2
1B2-F2141-00-00
Shaft, Pivot
$21.79¢10 896
1
#3
95617-12100-00
NUT, U
$4.16¢2 081
1
#4
90201-124G9-00
WASHER,PLATE
$4.83¢2 415
1
#5
90386-18099-00
BUSH
$14.78¢7 389
1
#6
90389-12002-00
BUSH,SPEC'L SHAPE
$45.18¢22 592
1
#7
401-22128-01-00
COVER, THRUST 1
$27.95¢13 973
1
#8
1B2-F2151-10-00
SEAL, GUARD
$34.66¢17 331
1
#9
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#10
90387-062X0-00
COLLAR
$18.85¢9 424
1
#11
5RM-F2199-00-00
SUPPORT, CHAIN
$6.11¢3 053
1
#12
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#13
90387-06737-00
COLLAR
$7.24¢3 622
1
#14
1B2-F217A-01-00
ARM, RELAY
$111.52¢55 758
1
#15
90384-18190-00
BUSH,BIMETAL FORM
$11.73¢5 865
1
#16
1B2-F2124-00-00
BUSH 2
$48.43¢24 213
1
#17
1B2-F2129-00-00
COVER, thrust 2
$29.27¢14 634
1
#18
90105-12019-00
Bolt, Flange
$10.80¢5 399
1
#19
90201-124G9-00
WASHER,PLATE
$4.83¢2 415
1
#20
95617-12100-00
NUT, U
$4.16¢2 081
1
#21
90380-16109-00
BUSH,SOLID
$11.73¢5 865
1
#22
22W-22124-00-00
BUSH 2
$41.05¢20 528
1
#23
90387-106G0-00
Collar
$12.65¢6 325
1
#24
90109-10689-00
bolt
$6.96¢3 479
1
#25
90201-100F7-00
WASHER,PLATE (replaces 90201-10430-00)
$6.99¢3 496
1
#26
90185-10120-00
NUT,SELF-LOCKING
$5.37¢2 685
1
#27
4AN-F2129-00-00
COVER, thrust 2
$29.26¢14 628
1
#28
4AN-F2189-00-00
Boot, Rubber
$8.53¢4 267
1
#29
90383-16023-00
BUSH,FORMED
$13.89¢6 946
1
#30
93109-16800-00
Oil Seal
$6.06¢3 030
1
#31
90387-106G0-00
Collar
$12.65¢6 325
1
#32
90109-10689-00
bolt
$6.96¢3 479
1
#33
90201-100F7-00
WASHER,PLATE (replaces 90201-10430-00)
$6.99¢3 496
1
#34
90185-10120-00
NUT,SELF-LOCKING
$5.37¢2 685
1
#35
1B2-F217F-00-35
ROD, CONNECTING 1
$72.14¢36 070
1
#36
90383-16023-00
BUSH,FORMED
$13.89¢6 946
1
#37
4AN-F2129-00-00
COVER, thrust 2
$29.26¢14 628
1
#38
90387-105G9-00
Collar
$10.43¢5 215
1
#39
90105-10392-00
BOLT,WASHER BASED
$9.19¢4 594
1
#40
90185-10120-00
NUT,SELF-LOCKING
$5.37¢2 685
1
#41
90201-100F7-00
WASHER,PLATE (replaces 90201-10430-00)
$6.99¢3 496
1
#42
1B2-F2311-00-00
CASE, CHAIN
$9.12¢4 560
1
#43
90119-06079-00
BOLT,WITH WASHER (replaces 90119-06205-00)
$1.09¢546
1
#44
3RV-21668-A0-00
LABEL, TIRE
$4.02¢2 012
1
#45
2PT-22210-00-00
SHOCK ABSORBER ASSY, REAR
$890.09¢445 044
1
#46
4AA-22259-80-00
LABEL, WARNING
$13.63¢6 814
1
#47
90105-12030-00
BOLT, FLANGE This item has been discontinued and may not be available. Contact us for more information.
$9.75¢4 876
1
#48
95617-12100-00
NUT, U
$4.16¢2 081
1
#49
90201-124G9-00
WASHER,PLATE
$4.83¢2 415
1
#50
90450-57018-00
HOSE CLAMP ASSY
$12.56¢6 279
1
