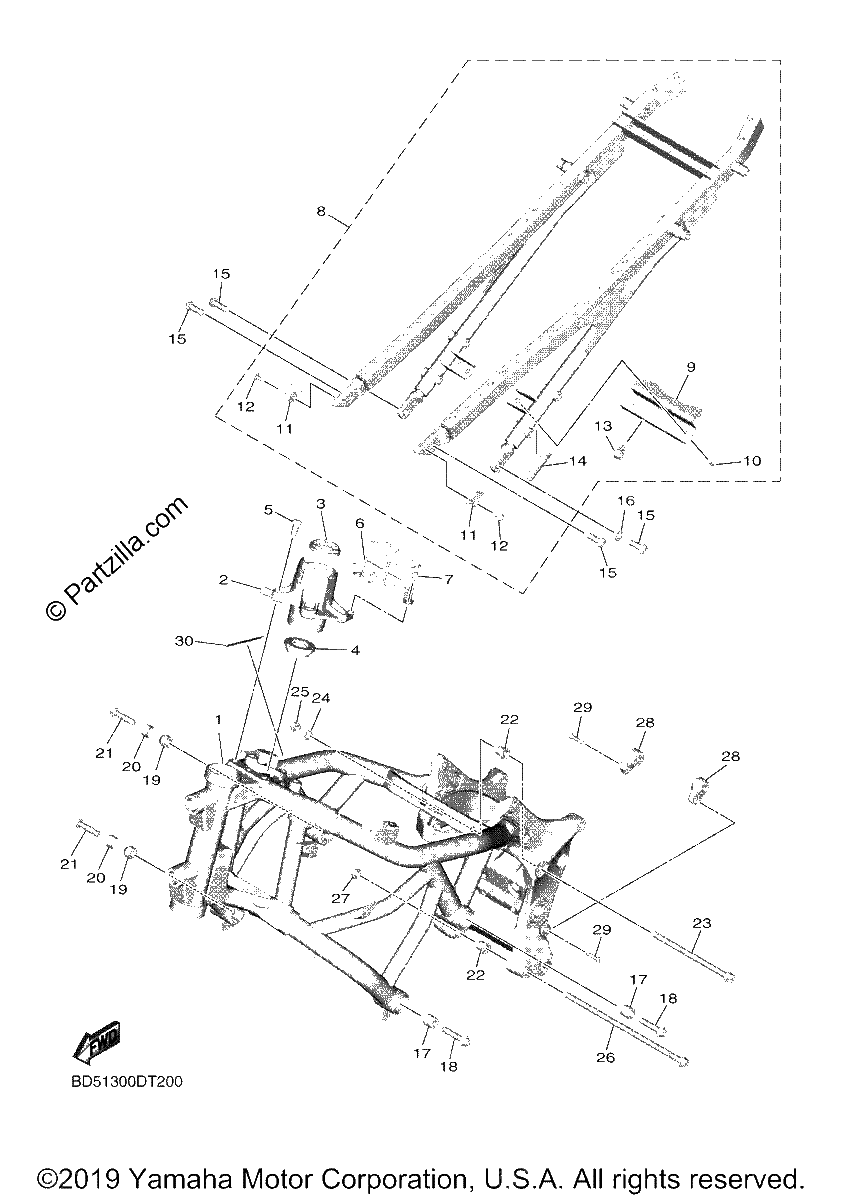

Diagrama de FRAME

Repuestos

#1
BD5-21110-00-00
FRAME COMP.
$5451.24¢2 725 619
1
#2
BD5-2131E-00-00
END, STEERING HEAD 1
$212.76¢106 381
1
#3
BD5-23873-00-00
BEARING, STEERING UPPER
$41.73¢20 863
1
#4
93399-99932-00
BEARING
$66.19¢33 094
1
#5
90149-10029-00
Screw
$2.40¢1 200
1
#6
BD5-26292-00-00
STAY
$47.35¢23 675
1
#7
92017-06012-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#8
BD5-211C0-00-00
REAR FRAME ASSY.
$1201.24¢600 619
1
#9
BD5-21393-00-00
Bracket, Battery Box
$29.86¢14 931
1
#10
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#11
BD5-21321-00-00
STAY, SIDE COVER 1
$6.59¢3 294
1
#12
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#13
90464-13249-00
CLAMP
$3.57¢1 787
1
#14
2S3-2111D-00-00
SEAL 1
$10.51¢5 256
1
#15
90149-10060-00
SCREW (replaces 90149-10059-00)
$7.69¢3 844
1
#16
92907-10200-00
WASHER, PLAIN
$4.26¢2 131
1
#17
90387-10277-00
COLLAR (517 F. WHEEL)
$9.16¢4 581
1
#18
90110-10043-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#19
2C0-21414-00-00
BOSS, ENGINE MOUNT
$27.43¢13 713
1
#20
5VY-21424-00-00
BOSS, ENGINE MOUNT
$32.09¢16 044
1
#21
95024-10045-00
BOLT, FLANGE
$8.09¢4 044
1
#22
4C8-21495-00-00
BOLT, ENGINE ADJUSTING
$22.63¢11 313
1
#23
90105-10350-00
Bolt, Flange
$11.81¢5 906
1
#24
90201-10075-00
WASHER, PLATE
$2.97¢1 487
1
#25
90179-10024-00
NUT
$10.46¢5 231
1
#26
90105-10437-00
BOLT, FLANGE
$13.70¢6 850
1
#27
90179-10024-00
NUT
$10.46¢5 231
1
#28
2CR-21446-00-00
STAY, MUFFLER 2
$33.42¢16 713
1
#29
91317-06025-00
BOLT
$2.44¢1 219
1
#30
3D8-2117G-00-00
PROTECTOR
$6.65¢3 325
1
