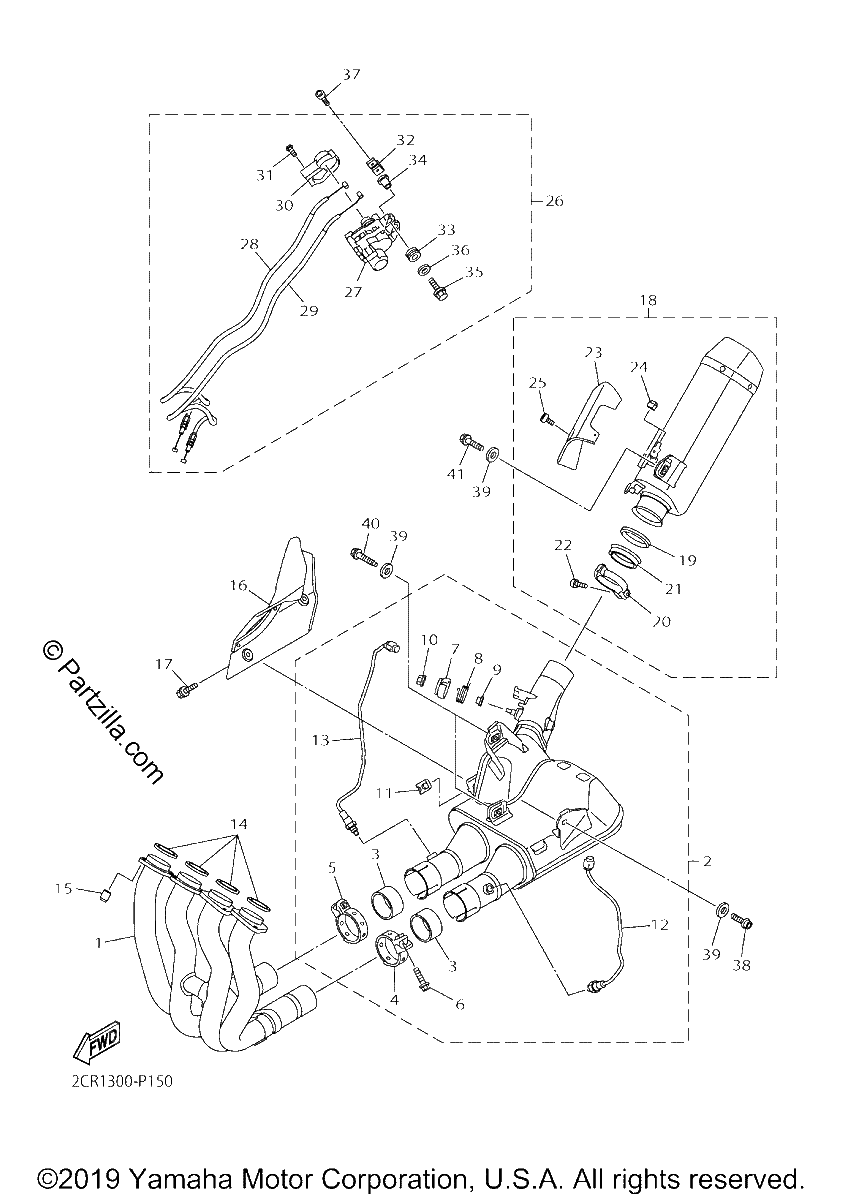

EXHAUST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
EXHAUST PIPE COMP.
$1747.49¢873 744
#2
CHAMBER ASSY
$2738.74¢1 369 369
#3
GASKET, MUFFLER
$46.33¢23 163
#4
BAND, MUFFLER
$37.81¢18 906
#5
BAND, MUFFLER
$34.98¢17 488
#6
BOLT,FLANGE (3EF)
$7.34¢3 669
#7
PULLEY
$30.15¢15 075
#8
SPRING
$4.96¢2 481
#9
SEAT, SPRING
$7.14¢3 569
#10
NUT
$4.30¢2 150
#11
NUT, SPRING
$9.93¢4 963
#12
SENSOR, OXYGEN (replaces 1WS-8592A-00-00)
$235.70¢117 850
#13
SENSOR, OXYGEN (replaces 2CR-8592A-10-00)
$277.31¢138 656
#14
GASKET, EXHAUST PIPE
$11.34¢5 669
#15
NUT,SPEC'L SHAPE
$6.81¢3 406
#16
PROTECTOR ASSY
$244.70¢122 350
#17
BOLT, HEX. SOCKET BUTTON
$1.42¢712
#18
Silencer Assy
$1313.74¢656 869
#19
GASKET, EXHAUST PIPE
$17.01¢8 506
#20
BAND, MUFFLER
$54.75¢27 375
#21
RING, STOPPER
$19.71¢9 856
#22
BOLT, HEXAGON SOCKET HEAD
$3.38¢1 688
#23
PROTECTOR, MUFFLER 1
$155.49¢77 744
#24
DAMPER, MUFFLER
$4.40¢2 200
#25
BOLT, HEX. SOCKET BUTTON
$1.42¢712
#26
SERVO MOTOR COMP
$400.32¢200 163
#27
SERVO MOTOR ASSY
$306.32¢153 163
#28
CABLE, PULLEY 1
$95.41¢47 706
#29
CABLE, PULLEY 2
$85.88¢42 938
#30
COVER, SERVO MOTOR
$12.09¢6 044
#31
SCREW,TAPPING (replaces 97702-50514-00)
$4.56¢2 281
#32
BRACKET 7
$33.30¢16 650
#33
Grommet
$4.00¢2 000
#34
COLLAR
$7.34¢3 669
#35
BOLT, FLANGE
$3.96¢1 981
#36
WASHER,PLATE
$3.57¢1 787
#37
BOLT, HEXAGON SOCKET HEAD
$7.52¢3 762
#38
BOLT, HEXAGON SOCKET HEAD
$8.01¢4 006
#39
WASHER, PLATE
$3.70¢1 850
#40
BOLT
$3.69¢1 844
#41
BOLT, HEXAGON SOCKET HEAD
$8.34¢4 169
