FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

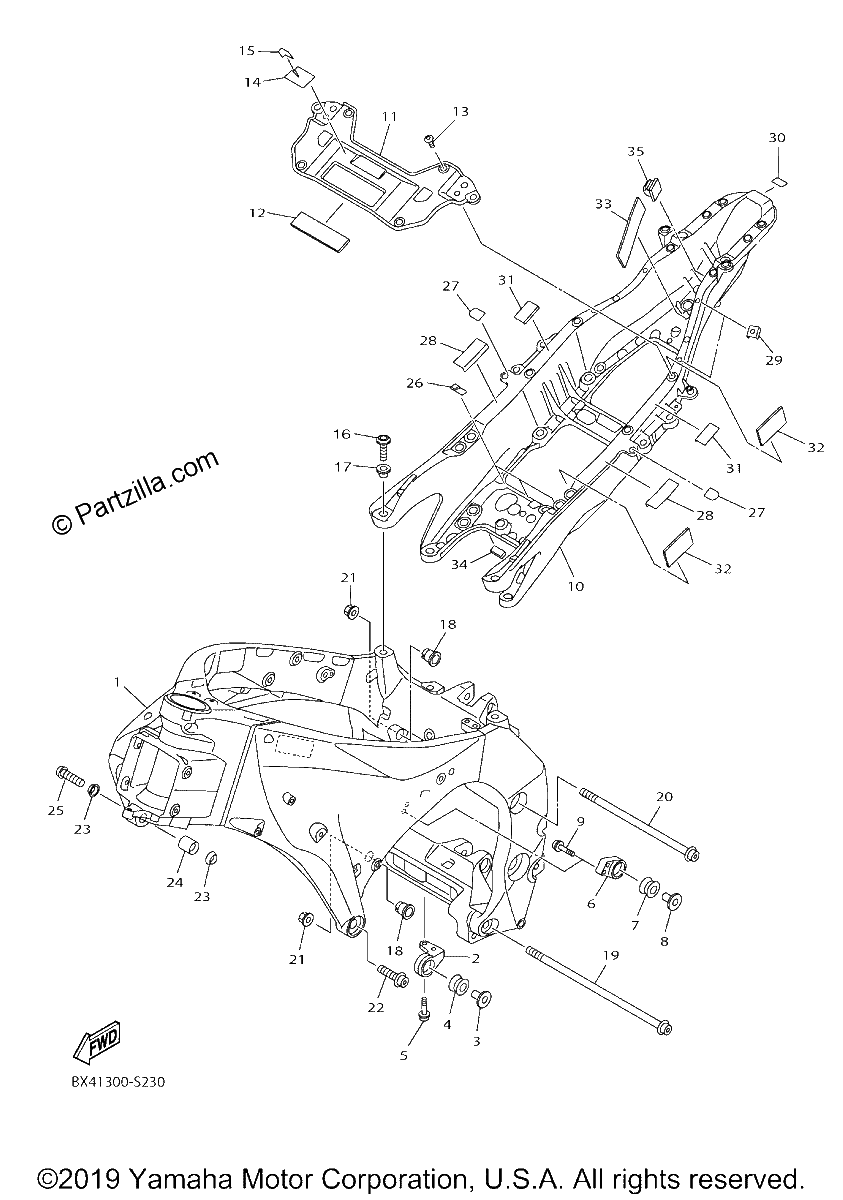

Diagrama de FRAME

Repuestos

#1
2CR-21110-00-00
FRAME COMP.
$3906.24¢1 953 119
1
#2
2CR-21435-00-00
BRACKET, MUFFLER 1
$62.82¢31 412
1
#3
90387-08021-00
COLLAR
$10.14¢5 069
1
#4
5VY-14747-00-00
DAMPER, MUFFLER
$14.65¢7 325
1
#5
90110-06248-00
BOLT, HEXAGON SOCKET HEAD
$3.70¢1 850
1
#6
2CR-21436-00-00
BRACKET, MUFFLER 2
$23.03¢11 513
1
#7
5VY-14747-00-00
DAMPER, MUFFLER
$14.65¢7 325
1
#8
90387-08021-00
COLLAR
$10.14¢5 069
1
#9
91312-06016-00
BOLT
$5.84¢2 919
1
#10
2CR-21190-10-00
REAR FRAME COMP.
$1531.29¢765 644
1
#11
2CR-21214-00-00
REINF., FRAME REAR
$249.66¢124 831
1
#12
90520-06007-00
DAMPER, PLATE
$1.82¢913
1
#13
90111-06155-00
BOLT, HEX. SOCKET BUTTON
$2.07¢1 037
1
#14
2CR-22877-00-00
SEAL, 5
$7.24¢3 619
1
#15
2CR-22878-00-00
SEAL 6
$4.00¢2 000
1
#16
90149-10003-00
SCREW
$10.40¢5 200
1
#17
2CR-21116-00-00
COLLAR
$18.90¢9 450
1
#18
5YU-21495-00-00
BOLT, ENGINE ADJUSTING
$17.96¢8 981
1
#19
90110-12010-00
BOLT, HEXAGON SOCKET HEAD
$34.11¢17 056
1
#20
90110-12008-00
BOLT, HEXAGON SOCKET HEAD
$29.86¢14 931
1
#21
90179-12004-00
NUT
$6.23¢3 113
1
#22
90110-12007-00
BOLT, HEXAGON SOCKET HEAD
$6.85¢3 425
1
#23
14B-21414-00-00
BOSS, ENGINE MOUNT
$23.06¢11 531
1
#24
14B-21424-00-00
BOSS, ENGINE MOUNT
$32.94¢16 469
1
#25
90111-12003-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 438
1
#26
7TG-2214F-00-00
DAMPER 1
$1.19¢594
1
#27
2CR-22873-00-00
SEAL 1
$2.20¢1 100
1
#28
2CR-22874-00-00
SEAL 2
$4.96¢2 481
1
#29
2CR-22875-01-00
SEAL 3
$2.91¢1 456
1
#30
5SL-21268-00-00
SEAL
$7.08¢3 538
1
#31
2CR-22876-00-00
SEAL 4
$4.70¢2 350
1
#32
5JW-2164K-00-00
PATCH 5
$1.94¢969
1
#33
5TH-21268-01-00
SEAL
$7.91¢3 956
1
#34
13S-28415-00-00
DAMPER 1
$7.86¢3 931
1
#35
90464-13004-00
Clamp
$6.44¢3 219
1
