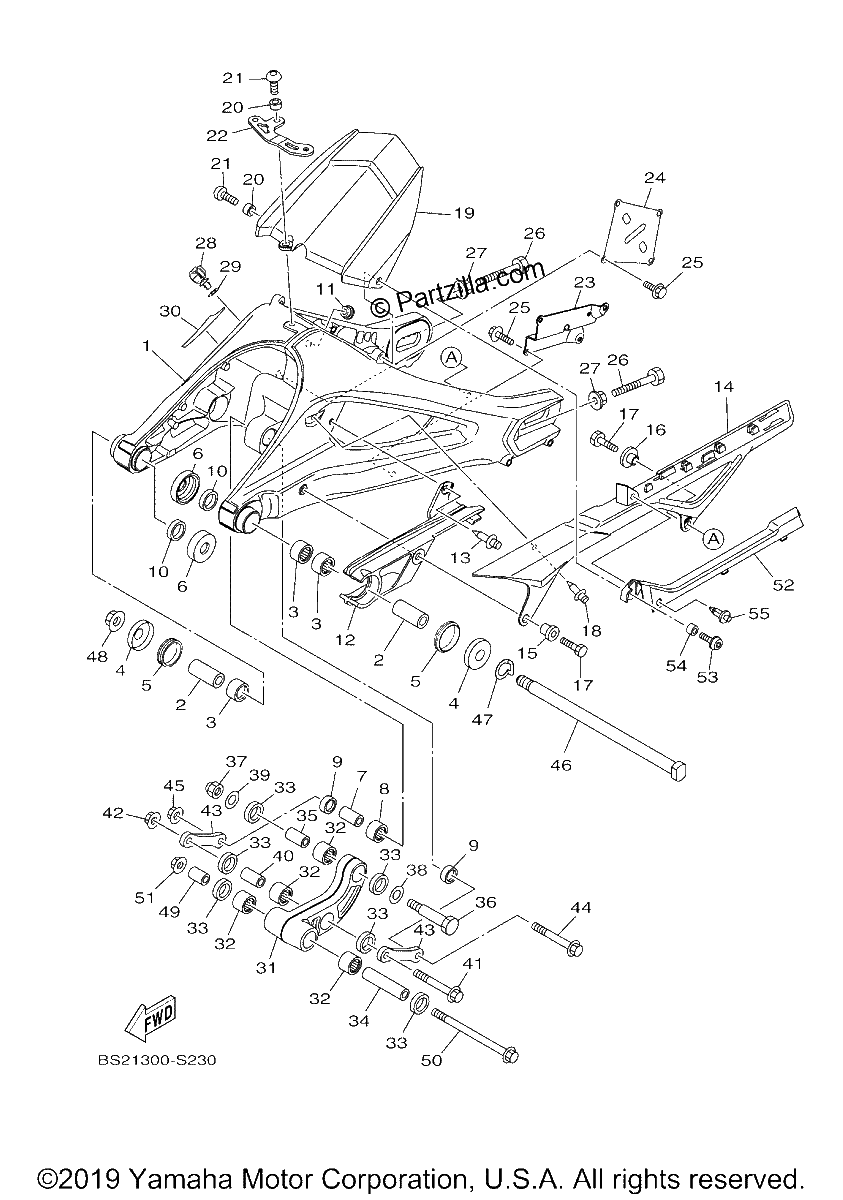

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP. (replaces B90-22110-00-00)
$1584.45¢792 225
#2
BUSH, SOLID
$26.94¢13 469
#3
BEARING
$40.65¢20 325
#4
COVER
$17.01¢8 506
#5
OIL SEAL (35-41-8)
$14.98¢7 488
#6
COVER, THRUST 1
$15.59¢7 794
#7
COLLAR
$15.58¢7 788
#8
BEARING
$41.35¢20 675
#9
OIL SEAL
$8.03¢4 013
#10
OIL SEAL
$11.10¢5 550
#11
GROMMET
$7.35¢3 675
#12
SEAL, GUARD
$23.81¢11 906
#13
RIVET
$4.00¢2 000
#14
CASE, CHAIN
$45.21¢22 606
#15
COLLAR
$20.49¢10 244
#16
Collar
$6.38¢3 188
#17
BOLT (GA1) (replaces 90101-06044-00)
$2.26¢1 131
#18
RIVET
$4.00¢2 000
#19
REAR FENDER COMP.
$55.95¢27 975
#20
COLLAR
$6.45¢3 225
#21
BOLT, HEX. SOCKET BUTTON
$3.17¢1 588
#22
BRACKET, FOOTREST 2
$5.99¢2 994
#23
BRACKET 1
$16.44¢8 219
#24
BRACKET 2
$12.86¢6 431
#25
BOLT, FLANGE
$6.49¢3 244
#26
BOLT
$3.57¢1 787
#27
NUT, FLANGE
$0.99¢494
#28
CLAMP
$8.25¢4 125
#29
WASHER, PLATE
$5.67¢2 838
#30
SEAL 1
$9.41¢4 706
#31
ARM, RELAY
$143.24¢71 619
#32
BEARING
$41.35¢20 675
#33
OIL SEAL
$8.03¢4 013
#34
SPACER
$29.71¢14 856
#35
COLLAR
$13.27¢6 637
#36
BOLT
$8.77¢4 387
#37
NUT, U
$7.35¢3 675
#38
WASHER, PLATE
$4.00¢2 000
#39
WASHER, plate
$4.25¢2 125
#40
COLLAR
$15.58¢7 788
#41
BOLT, FLANGE
$5.46¢2 731
#42
NUT, U FLANGE
$2.73¢1 363
#43
ARM 1
$11.20¢5 600
#44
BOLT, FLANGE
$5.46¢2 731
#45
NUT, U FLANGE
$2.73¢1 363
#46
SHAFT, PIVOT
$100.23¢50 113
#47
WASHER, SPRING LOWER
$2.31¢1 156
#48
NUT,SELF-LOCKING
$11.81¢5 906
#49
COLLAR
$7.24¢3 619
#50
BOLT, FLANGE
$11.10¢5 550
#51
NUT, U FLANGE
$2.73¢1 363
#52
Cover
$22.16¢11 081
#53
SCREW
$4.56¢2 281
#54
COLLAR
$7.49¢3 744
#55
RIVET
$4.00¢2 000
