COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

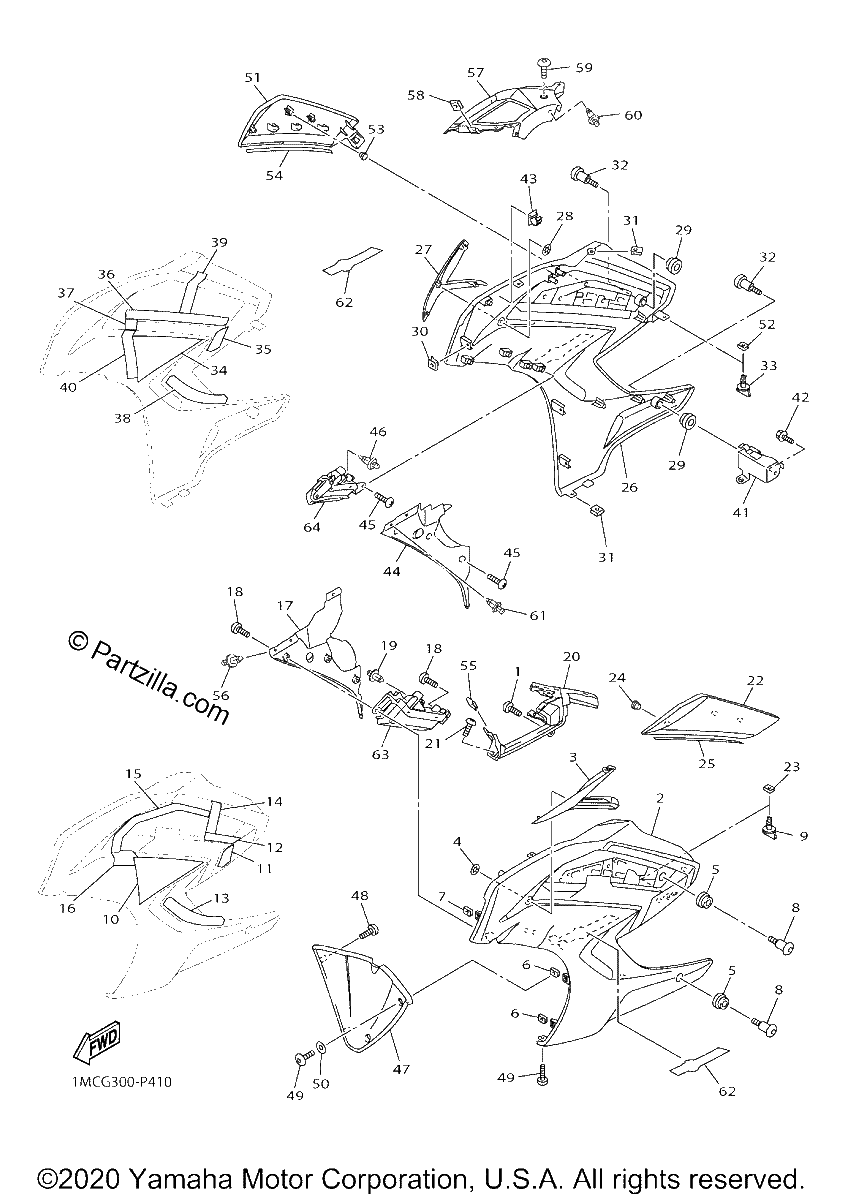

Diagrama de COWLING 2

Repuestos

#1
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#2
1MC-2835J-00-P8
BODY, FRONT UNDER 1
$747.49¢373 744
1
#3
1MC-2835U-00-P5
PANEL 1 (BLACK METALLIC X)
$163.63¢81 817
1
#4
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#5
90480-13014-00
GROMMET
$7.51¢3 755
1
#6
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#7
90183-05042-00
NUT, SPRING
$1.15¢575
1
#8
90109-06037-00
BOLT
$6.46¢3 231
1
#9
1MC-28386-00-00
HEAD
$14.34¢7 170
1
#10
1MC-28371-00-00
DAMPER
$12.97¢6 486
1
#11
1MC-28415-00-00
DAMPER 1
$1.94¢972
1
#12
1MC-28425-00-00
DAMPER 3
$2.68¢1 340
1
#13
90520-50004-00
DAMPER, PLATE
$4.19¢2 093
1
#14
90520-40002-00
DAMPER, PLATE
$1.82¢909
1
#15
90520-40003-00
DAMPER, PLATE
$3.71¢1 857
1
#16
1MC-2847P-00-00
DAMPER 9
$5.31¢2 657
1
#17
3P6-2836K-00-00
PANEL, INNER 1
$59.78¢29 888
1
#18
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#19
90269-06001-00
RIVET
$5.93¢2 967
1
#20
1MC-2836M-00-00
PANEL, INNER 3
$252.37¢126 184
1
#21
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#22
1MC-2830C-00-P0
VISOR, SIDE 1 | Use for Color Black Metallic X ( SMX / 0903 )
$145.47¢72 738
1
#23
5PW-2177L-01-00
PLATE, SPRING
$6.82¢3 410
1
#24
90338-07180-00
PLUG
$6.22¢3 111
1
#25
90520-01003-00
DAMPER, PLATE
$4.23¢2 116
1
#26
1MC-2835K-00-P8
BODY, FRONT UNDER 2
$658.94¢329 469
1
#27
1MC-2835V-00-P5
PANEL 2 (BLACK METALLIC X)
$163.63¢81 817
1
#28
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#29
90480-13014-00
GROMMET
$7.51¢3 755
1
#30
90183-05042-00
NUT, SPRING
$1.15¢575
1
#31
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#32
90109-06037-00
BOLT
$6.46¢3 231
1
#33
1MC-28386-00-00
HEAD
$14.34¢7 170
1
#34
1MC-28372-00-00
DAMPER
$9.54¢4 773
1
#35
1MC-28416-00-00
DAMPER 2
$2.02¢1 012
1
#36
1MC-28435-00-00
DAMPER 4
$5.61¢2 806
1
#37
90520-30006-00
DAMPER, PLATE
$1.32¢661
1
#38
90520-50004-00
DAMPER, PLATE
$4.19¢2 093
1
#39
90520-40002-00
DAMPER, PLATE
$1.82¢909
1
#40
1MC-2847R-00-00
DAMPER 10
$7.28¢3 640
1
#41
1MC-2836F-00-00
BRACKET 3
$28.23¢14 116
1
#42
95812-06012-00
BOLT, FLANGE (replaces 95802-06012-00)
No Disponible
1
#43
90464-54086-00
CLAMP
$2.78¢1 392
1
#44
3P6-2836L-00-00
PANEL, INNER 2
$59.78¢29 888
1
#45
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#46
90269-06001-00
RIVET
$5.93¢2 967
1
#47
3P6-28385-10-PG
COVER, UNDER
$210.31¢105 156
1
#48
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#49
90110-05201-00
BOLT, HEXAGON SOCKET HEAD
$2.35¢1 173
1
#50
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#51
1MC-2830D-00-P0
VISOR, SIDE 2 | Use for Color Black Metallic X ( SMX / 0903 )
$139.21¢69 604
1
#52
5PW-2177L-01-00
PLATE, SPRING
$6.82¢3 410
1
#53
90338-07180-00
PLUG
$6.22¢3 111
1
#54
90520-01003-00
DAMPER, PLATE
$4.23¢2 116
1
#55
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#56
90269-06008-00
RIVET
$8.10¢4 048
1
#57
1MC-2836N-01-00
PANEL, INNER 4
$204.34¢102 172
1
#58
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#59
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#60
90269-06008-00
RIVET
$8.10¢4 048
1
#61
90269-06008-00
RIVET
$8.10¢4 048
1
#62
1MC-2839B-00-00
EMBLEM 3D
$79.17¢39 583
1
#63
1MC-83310-10-00
FRONT FLASHER LIGHT ASSY 1
$159.22¢79 609
1
#64
1MC-83320-10-00
FRONT FLASHER LIGHT ASSY 2
$169.87¢84 933
1
