DRIVE SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

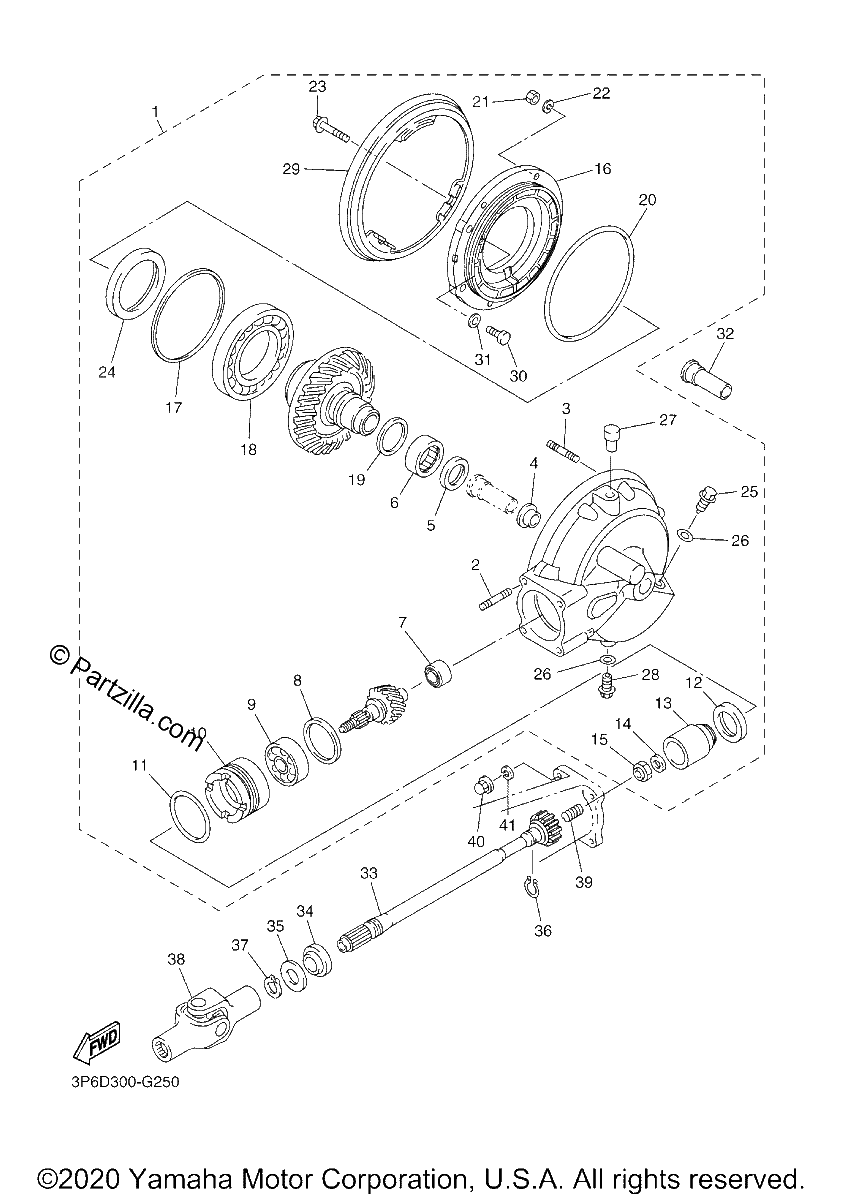

Diagrama de DRIVE SHAFT

Repuestos

#1
B88-W4612-10-00
REAR AXLE GEAR CASE ASSY
$1467.49¢733 744
1
#2
90116-10061-00
BOLT, STUD
$7.40¢3 700
1
#3
90116-08025-00
BOLT, STUD
$4.40¢2 200
1
#4
5JW-46153-00-00
COLLAR, GUIDE
$24.63¢12 313
1
#5
93101-30084-00
OIL SEAL
$17.27¢8 638
1
#6
93311-43729-00
BEARING
$83.58¢41 788
1
#7
2H7-46102-00-00
BEARING ASSY
$62.11¢31 056
1
#8
1J7-17537-Y0-15
.. SHIM, THRUST (015T)
$3.38¢1 688
1
#8
1J7-17537-Y0-30
SHIM, THRUST (0.30T) | UR
$4.81¢2 406
1
#8
1J7-17537-Y0-40
SHIM, THRUST (0.40T) | UR
$4.34¢2 169
1
#8
1J7-17537-Y0-45
.. SHIM, THRUST (045T)
$2.97¢1 487
1
#8
1J7-17537-Y0-50
SHIM, THRUST (0.50T) | UR
$4.51¢2 256
1
#8
1J7-17537-Y0-60
.. SHIM, THRUST (060T)
$4.00¢2 000
1
#9
93306-30533-00
BEARING
$145.49¢72 744
1
#10
4H7-46125-00-00
RETAINER, BEARING
$65.25¢32 625
1
#11
93210-60426-00
O-RING
$10.29¢5 144
1
#12
93101-38001-00
OIL SEAL
$21.72¢10 862
1
#13
3P6-46123-01-00
COUPLING, GEAR
$141.84¢70 919
1
#14
90201-166R5-00
WASHER, PLATE
$17.69¢8 844
1
#15
90179-16006-00
NUT
$19.51¢9 756
1
#16
3P6-46152-00-00
HOUSING, BEARING
$138.46¢69 231
1
#17
1J7-46117-Y0-30
SHIM, RING GEAR (0.30T) | UR
$7.90¢3 950
1
#17
1J7-46117-Y0-35
. SHIM, RING GEAR (035T)
No Disponible
1
#17
1J7-46117-Y0-40
SHIM, RING GEAR (0.40T) | UR
$14.35¢7 175
1
#17
1J7-46117-Y0-50
SHIM, RING GEAR (0.50T) | UR
$12.13¢6 063
1
#17
1J7-46117-Y0-25
SHIM, RING GEAR (0.25T) | UR
$14.41¢7 206
1
#17
1JT-46117-Y0-45
. SHIM, RING FEAR (0.45T)
No Disponible
1
#18
93316-01403-00
BEARING
$93.26¢46 631
1
#19
22U-46118-00-15
.. SHIM, THRUST (15T)
$5.36¢2 681
1
#19
22U-46118-00-14
SHIM, THRUST (1.4T) | UR
$11.07¢5 538
1
#19
22U-46118-00-17
.. SHIM, THRUST (17T)
$5.36¢2 681
1
#19
22U-46118-00-18
SHIM, THRUST (1.8T) | UR
$10.96¢5 481
1
#19
22U-46118-00-19
.. SHIM, THRUST (19T)
$5.36¢2 681
1
#19
22U-46118-00-20
SHIM, THRUST (2.0T) | UR
$10.85¢5 425
1
#19
22U-46118-00-21
.. SHIM, THRUST (21T)
$4.90¢2 450
1
#19
22U-46118-00-12
SHIM, THRUST (1.2T) | UR
$10.85¢5 425
1
#19
22U-46118-00-13
.. SHIM, THRUST (13T)
$5.36¢2 681
1
#19
22U-46118-00-16
SHIM, THRUST (1.6T) | UR
$11.00¢5 500
1
#20
93211-54698-00
O-RING
$21.10¢10 550
1
#21
95333-08600-00
NUT
$3.81¢1 906
1
#22
90204-08001-00
WASHER, SPRING
$0.21¢106
1
#23
95817-10050-00
BOLT, FLANGE
$5.99¢2 994
1
#24
93102-70167-00
OIL SEAL
$34.59¢17 294
1
#25
90340-14132-00
PLUG, STRAIGHT SCREW
$3.15¢1 575
1
#26
214-11198-01-00
GASKET
$3.23¢1 613
1
#27
2H7-17590-00-00
BREATHER COMP.
$28.05¢14 025
1
#28
90340-14004-00
PLUG, STRAIGHT SCREW
$17.15¢8 575
1
#29
1FK-46154-00-00
COVER, HOUSING
$32.29¢16 144
1
#30
1FK-46156-00-00
STOPPER, RING GEAR
$17.79¢8 894
1
#31
1FK-46157-00-15
SHIM, STOPPER (T=0.15) | UR
$3.73¢1 863
1
#31
1FK-46157-00-20
SHIM, STOPPER (T=0.20) | UR
$4.46¢2 231
1
#32
5VS-4615A-00-00
COLLAR, GUIDE 1
$46.90¢23 450
1
#33
3P6-46172-10-00
SHAFT, DRIVE
$244.79¢122 394
1
#34
93108-43001-00
OIL SEAL
$27.14¢13 569
1
#35
90201-23008-00
WASHER, PLATE
$2.94¢1 469
1
#36
93410-23056-00
CIRCLIP
$7.10¢3 550
1
#37
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#38
5JW-46180-00-00
CROSS JOINT COMP.
$411.80¢205 900
1
#39
90501-16491-00
SPRING, COMPRESSION
$6.91¢3 456
1
#40
90176-10075-00
NUT, CROWN
$7.81¢3 906
1
#41
92990-10600-00
WASHER, PLATE
$3.29¢1 644
1
