CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

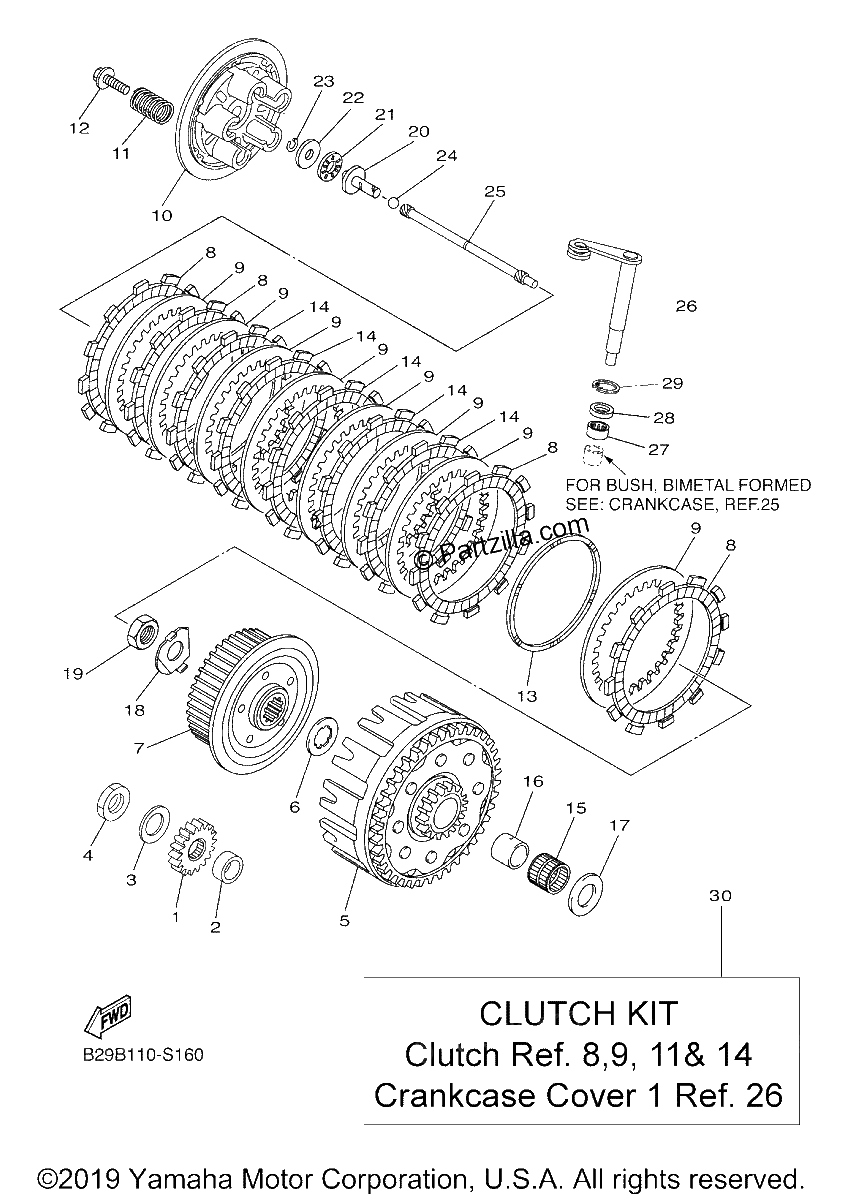

Diagrama de CLUTCH

Repuestos

#1
1SM-16111-10-00
GEAR, PRIMARY DRIVE
$51.55¢25 777
1
#2
90387-19008-00
COLLAR
$9.12¢4 560
1
#3
90208-16019-00
WASHER, CONICAL SPRING
$6.75¢3 375
1
#4
90170-16003-00
NUT
$3.29¢1 644
1
#5
1SM-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$513.77¢256 887
1
#6
1SM-16154-00-00
PLATE, THRUST 1
$6.92¢3 461
1
#7
2GB-16371-00-00
BOSS, CLUTCH
$143.12¢71 559
1
#8
5XC-16321-00-00
PLATE, FRICTION
$14.78¢7 389
1
#9
5NL-16325-00-00
PLATE, CLUTCH 2
$8.23¢4 117
1
#10
1SM-16351-00-00
PLATE, PRESSURE 1
$72.35¢36 173
1
#11
90501-220A4-00
SPRING, COMPRESSION
$6.06¢3 030
1
#12
90159-06029-00
SCREW, WITH WASHER
$8.26¢4 129
1
#13
1SM-16383-00-00
SPRING.,CUSHION
$14.67¢7 337
1
#14
2GB-16321-00-00
PLATE, FRICTION
$16.26¢8 131
1
#15
93310-225N0-00
BEARING,CYL.#10
$43.49¢21 746
1
#16
1SM-16181-00-00
SPACER 1
$34.84¢17 423
1
#17
90201-204K8-00
WASHER, PLATE
$7.99¢3 996
1
#18
90215-16289-00
WASHER, LOCK
$6.72¢3 358
1
#19
90170-16326-00
NUT
$12.06¢6 032
1
#20
1SM-16356-00-00
ROD, PUSH 1
$49.54¢24 771
1
#21
93340-21008-00
BEARING
$26.96¢13 478
1
#22
90201-080H1-00
WASHER, PLATE
$4.20¢2 099
1
#23
93440-07182-00
CIRCLIP
$3.44¢1 719
1
#24
93511-32027-00
BALL
$6.75¢3 375
1
#25
1SM-16357-00-00
ROD, PUSH 2
$43.70¢21 850
1
#26
B29-16381-00-00
PUSH LEVER COMP.
$97.41¢48 703
1
#27
93317-11096-00
BEARING
$21.90¢10 948
1
#28
93102-10008-00
Oil Seal
$5.09¢2 547
1
#29
99009-18500-00
Circlip
$0.63¢316
1
#30
2GB-W001G-00-00
Clutch Kit
$192.28¢96 140
1
