CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

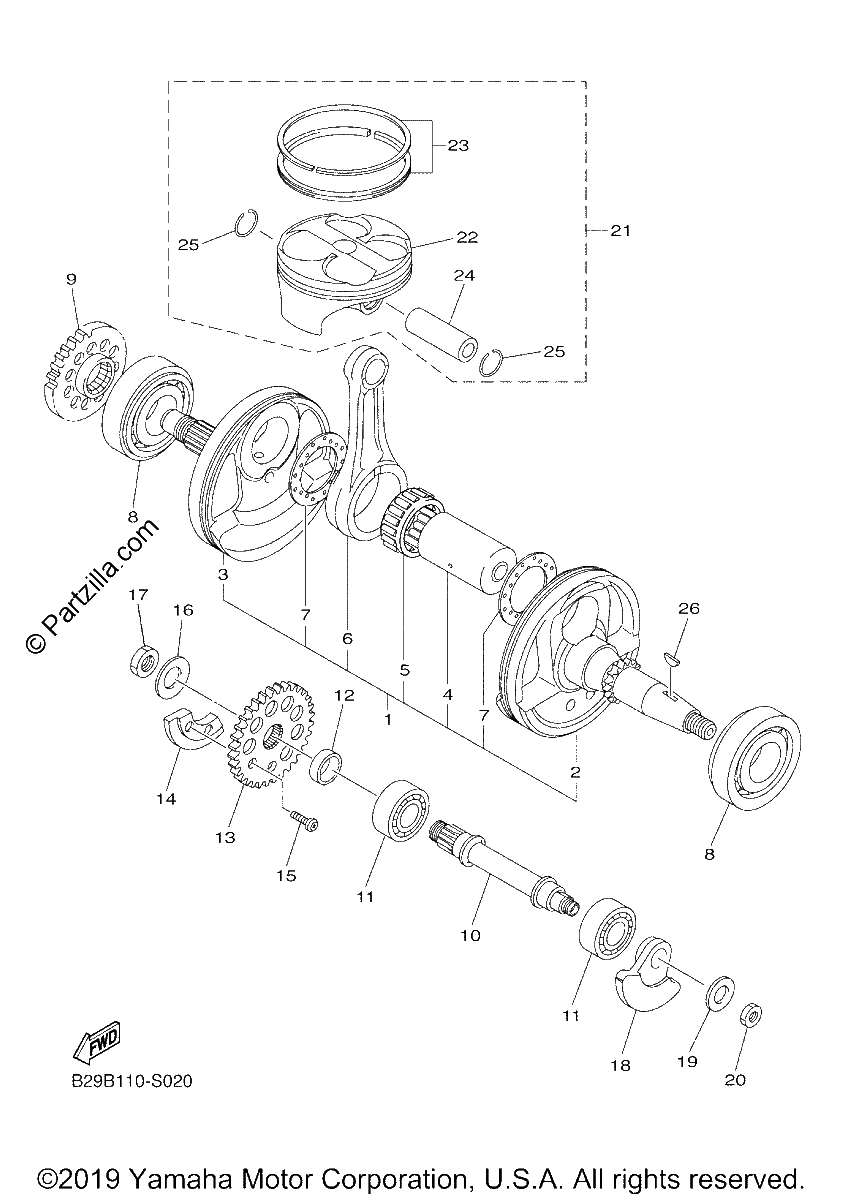

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
B29-11400-00-00
Crankshaft Assy
$880.06¢440 031
1
#2
B29-11412-00-00
CRANK 1
$244.75¢122 375
1
#3
B29-11422-00-00
CRANK 2
$287.98¢143 988
1
#4
1SM-11681-00-00
PIN, CRANK 1
$69.03¢34 513
1
#5
93310-63097-00
BEARING (replaces 93310-63096-00)
$109.60¢54 800
1
#6
1SM-11651-20-00
ROD, CONNECTING
$148.47¢74 238
1
#7
90209-30008-00
WASHER
$40.65¢20 325
1
#8
93306-20648-00
BEARING
$94.56¢47 281
1
#9
1SM-11536-00-00
GEAR, DRIVE
$127.24¢63 619
1
#10
1SM-11455-10-00
SHAFT 1
$199.49¢99 744
1
#11
93306-20351-00
BEARING
$40.65¢20 325
1
#12
90387-175R2-00
COLLAR (1YW)
$12.32¢6 163
1
#13
1SM-11531-00-00
GEAR, BALANCE WEIGHT
$132.61¢66 306
1
#14
1SM-11454-00-00
WEIGHT 1
$52.93¢26 463
1
#15
90149-06084-00
SCREW | FOR CALIFORNIA
$7.65¢3 825
1
#16
90208-14033-00
WASHER, CONICAL SPRING
$3.61¢1 806
1
#17
90170-14171-00
NUT
$8.64¢4 319
1
#18
1SM-11464-00-00
WEIGHT 2
$79.85¢39 925
1
#19
90208-10001-00
WASHER, CONICAL SPRING
$1.70¢850
1
#20
90170-10012-00
Nut
$5.36¢2 681
1
#21
1SM-116A0-10-00
Piston Assy
$145.64¢72 819
1
#22
1SM-11631-10-00
PISTON (Std)
$145.33¢72 663
1
#23
1SM-11603-00-00
Piston Ring Set (STD)
$42.55¢21 275
1
#24
1SM-11633-20-00
Pin, Piston
$47.27¢23 638
1
#25
93450-17129-00
CIRCLIP,INNER
$3.46¢1 731
1
#26
90280-03006-00
KEY, WOODRUFF
$8.09¢4 044
1
