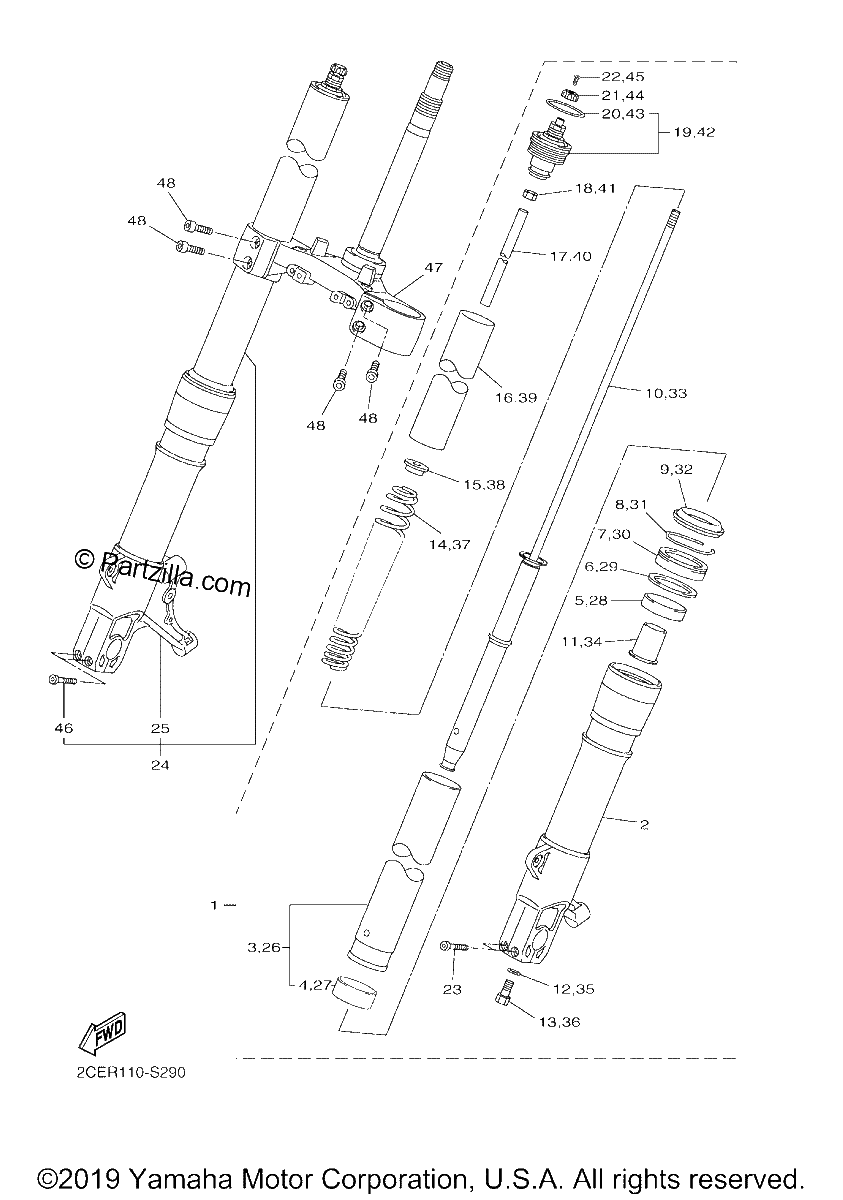

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1422.54¢711 269
#2
OUTER TUBE COMP.
$673.89¢336 944
#3
INNER TUBE COMP. 1
$483.57¢241 788
#4
METAL, SLIDE 2
$30.33¢15 163
#5
METAL, SLIDE 1
$48.71¢24 357
#6
SEAT 1
$15.65¢7 826
#7
Oil Seal
$15.03¢7 515
#8
RING, SNAP
$5.92¢2 961
#9
SEAL, dust
$17.39¢8 694
#10
CYLINDER COMP., FRONT FORK
$518.05¢259 026
#11
SPINDLE, TAPER
$34.70¢17 348
#12
GASKET | (KYB)
$15.72¢7 860
#13
BOLT, HEXAGON SOCKET HEAD
$22.08¢11 040
#14
SPRING, FRONT FORK
$48.43¢24 213
#15
SEAT, SPRING UPPER
$20.67¢10 333
#16
REINF. COMP.
$20.86¢10 431
#17
SPACER
$13.74¢6 871
#18
NUT
$3.82¢1 909
#19
BOLT, CAP
$264.97¢132 486
#20
O-Ring
$5.03¢2 513
#21
CAP
$10.55¢5 273
#22
SCREW
$1.46¢730
#23
BOLT, HEXAGON SOCKET HEAD
$7.45¢3 726
#24
FRONT FORK ASSY (R.H)
$1281.09¢640 544
#25
OUTER TUBE COMP.
$673.89¢336 944
#26
INNER TUBE COMP. 1
$483.57¢241 788
#27
METAL, SLIDE 2
$30.33¢15 163
#28
METAL, SLIDE 1
$48.71¢24 357
#29
SEAT 1
$15.65¢7 826
#30
Oil Seal
$15.03¢7 515
#31
RING, SNAP
$5.92¢2 961
#32
SEAL, dust
$17.39¢8 694
#33
CYLINDER COMP., FRONT FORK
$518.05¢259 026
#34
SPINDLE, TAPER
$34.70¢17 348
#35
GASKET | (KYB)
$15.72¢7 860
#36
BOLT, HEXAGON SOCKET HEAD
$22.08¢11 040
#37
SPRING, FRONT FORK
$48.43¢24 213
#38
SEAT, SPRING UPPER
$20.67¢10 333
#39
REINF. COMP.
$20.86¢10 431
#40
SPACER
$13.74¢6 871
#41
NUT
$3.82¢1 909
#42
BOLT, CAP
$264.97¢132 486
#43
O-Ring
$5.03¢2 513
#44
CAP
$10.55¢5 273
#45
SCREW
$1.46¢730
#46
BOLT, HEXAGON SOCKET HEAD
$7.45¢3 726
#47
UNDER BRACKET COMP.
$517.71¢258 854
#48
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
