CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

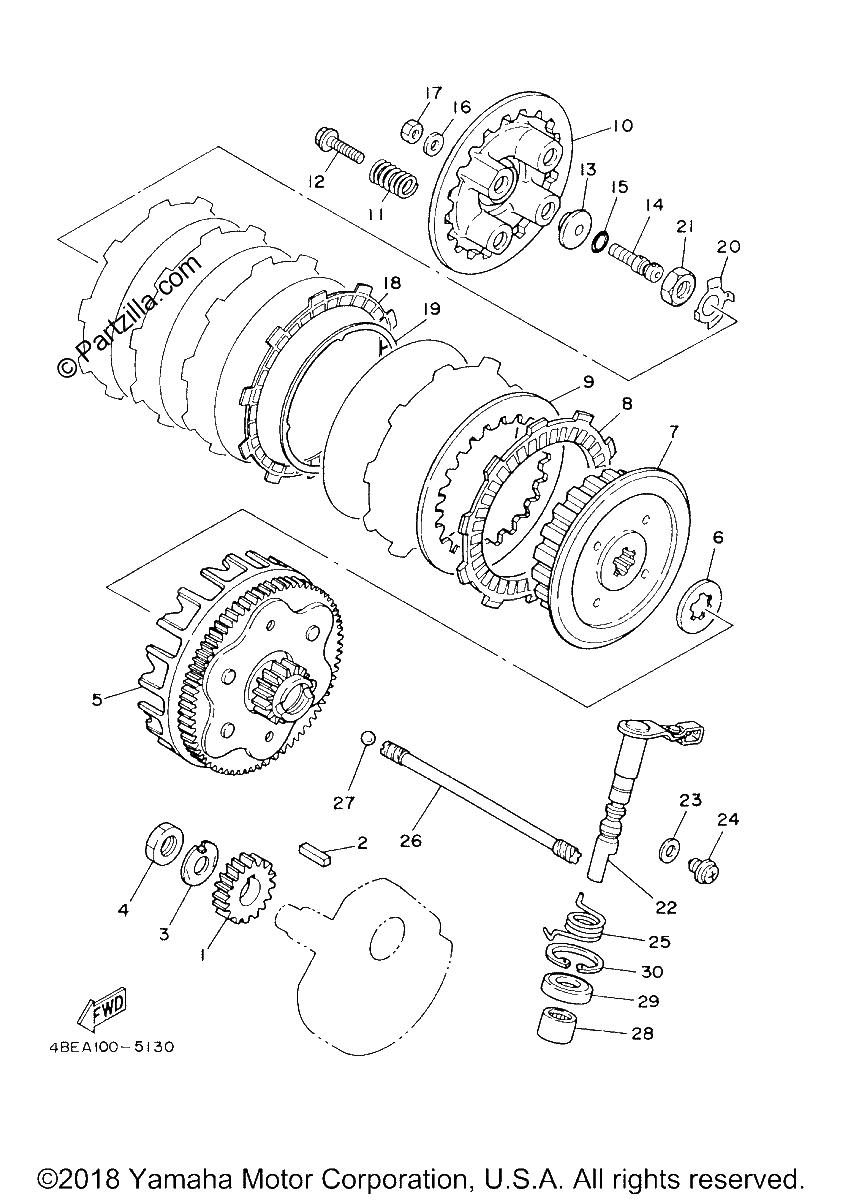

Diagrama de CLUTCH

Repuestos

#1
5H0-16111-00-00
GEAR,PRI DRIVE
$47.58¢23 788
1
#2
90282-05043-00
KEY,STRAIGHT
$10.18¢5 088
1
#3
90215-14205-00
WASHER,LOCK
$7.34¢3 669
1
#4
90170-14284-00
NUT,HEXAGON
$9.45¢4 725
1
#5
1KH-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$440.34¢220 169
1
#6
2LN-16154-00-00
PLATE, THRUST 1
$32.95¢16 475
1
#7
2LN-16371-00-00
BOSS, CLUTCH
$183.09¢91 544
1
#8
537-16321-00-00
PLATE,FRICTION
$17.96¢8 981
1
#9
336-16324-00-00
PLATE,CLUTCH 1 (replaces 137-16324-00-00)
$20.86¢10 431
1
#10
5H0-16351-00-00
PLATE,PRESSURE 1
$45.59¢22 794
1
#11
90501-23700-00
SPRING,COMPRESSION
$6.76¢3 381
1
#12
90159-05011-00
SCREW,WITH WASHER
$2.91¢1 456
1
#13
1W1-16358-01-00
PLATE, PUSH
$23.89¢11 944
1
#14
4JG-16356-00-00
ROD, PUSH 1
$29.59¢14 794
1
#15
93210-48364-00
O-Ring
$6.25¢3 125
1
#16
92907-06200-00
WASHER
$7.35¢3 675
1
#17
95317-06600-00
NUT
$3.21¢1 606
1
#18
36X-16321-00-00
PLATE, FRICTION
$18.91¢9 456
1
#19
1KH-16383-00-00
SPRING, CUSHION
$43.25¢21 625
1
#20
90215-14186-00
WASHER,LOCK
$9.31¢4 656
1
#21
90170-14284-00
NUT,HEXAGON
$9.45¢4 725
1
#22
4JG-16380-01-00
PUSH LEVER ASSY
$81.11¢40 556
1
#23
90430-08119-00
GASKET
$6.91¢3 456
1
#24
90149-08067-00
SCREW,SPEC'L SHAPE
$5.41¢2 706
1
#25
90508-18495-00
SPRING, TORSION
$6.91¢3 456
1
#26
5H0-16357-00-00
ROD,PUSH 2
$38.86¢19 431
1
#27
93505-16006-00
BALL 5/16
$2.73¢1 363
1
#28
93315-31428-00
BEARING
$38.69¢19 344
1
#29
93102-14209-00
OIL SEAL,SD-TYPE
$11.63¢5 813
1
#30
93420-28055-00
CIRCLIP,R-TYPE
$8.21¢4 106
1
