ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

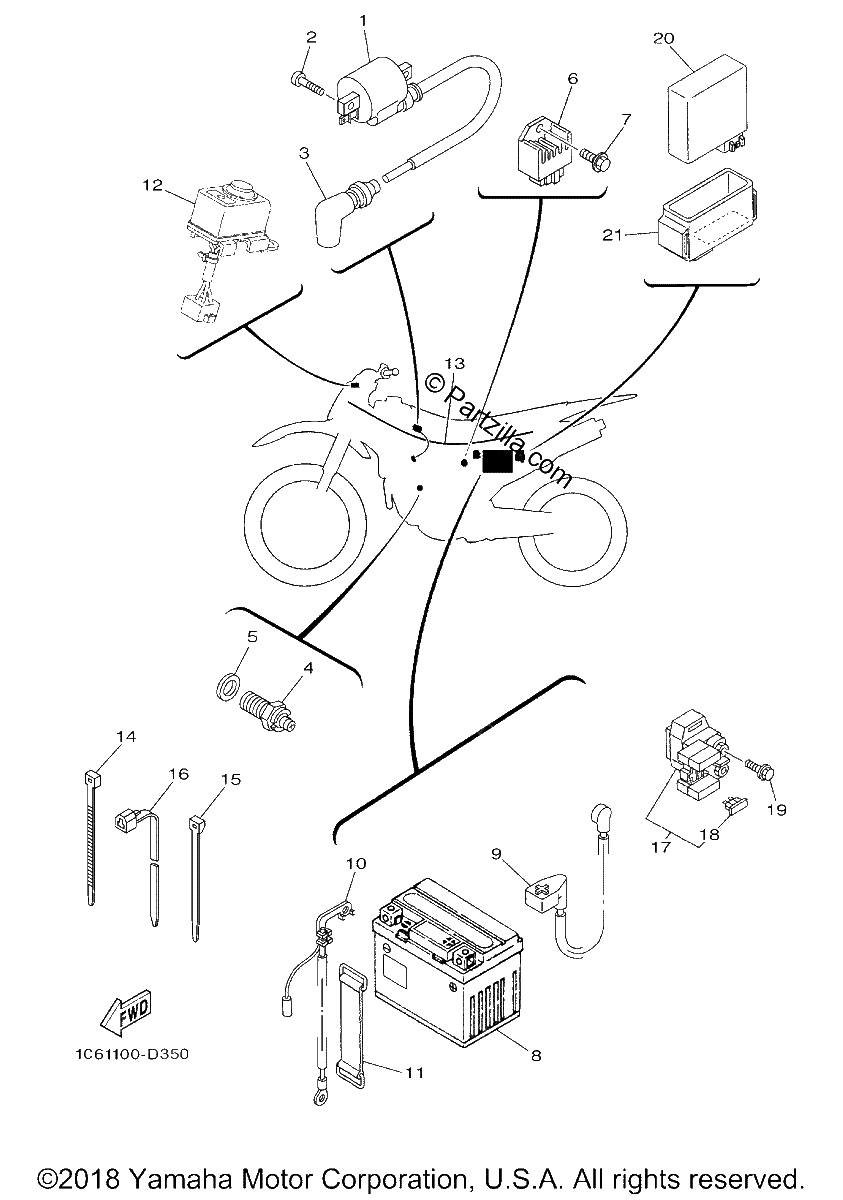

Diagrama de ELECTRICAL 1

Repuestos

#1
3KJ-82310-11-00
IGNITION COIL ASSY (replaces 3RW-82310-10-00)
$43.79¢21 894
1
#2
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#3
3NS-82370-00-00
PLUG CAP ASY
$38.68¢19 338
1
#4
4GY-82540-10-00
NEUTRAL SWITCH ASSY
$39.93¢19 963
1
#5
90430-10148-00
Gasket
$5.66¢2 831
1
#6
4CK-81960-01-00
RECTIFIER & REGULA (replaces 4GU-H1960-00-00)
$236.99¢118 494
1
#7
95027-06012-00
BOLT, FLANGE
$3.89¢1 944
1
#8
YTX-5LBS0-00-00
YTX5LBS YUASA BATTE (replaces 1C6-H2100-10-00)
No Disponible
1
#9
1C6-H2115-00-00
WIRE, plus lead
$24.44¢12 219
1
#10
1C6-H2116-00-00
WIRE, MINUS LEAD
$15.84¢7 919
1
#11
1C6-H2131-00-00
BAND, BATTERY
$7.69¢3 844
1
#12
1C6-82510-01-00
MAIN SWITCH ASSY (replaces 1C6-82510-00-00)
$119.30¢59 650
1
#13
1C6-H2590-00-00
WIRE HARNESS ASSY
$157.31¢78 656
1
#14
90464-70800-00
CLAMP
$1.06¢531
1
#15
1UA-82591-00-00
BAND
$4.91¢2 456
1
#16
90464-13077-00
CLAMP
$7.94¢3 969
1
#17
5HH-81940-02-00
STARTER RELAY ASSY
$133.85¢66 925
1
#18
42X-82151-00-00
FUSE (10A-BL)
$2.64¢1 319
1
#19
95027-06008-00
BOLT, FLANGE
$6.67¢3 338
1
#20
1C6-H5540-00-00
C.D.I. UNIT ASSY
$488.94¢244 469
1
#21
1C6-H5546-00-00
BAND
$11.25¢5 625
1
