CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

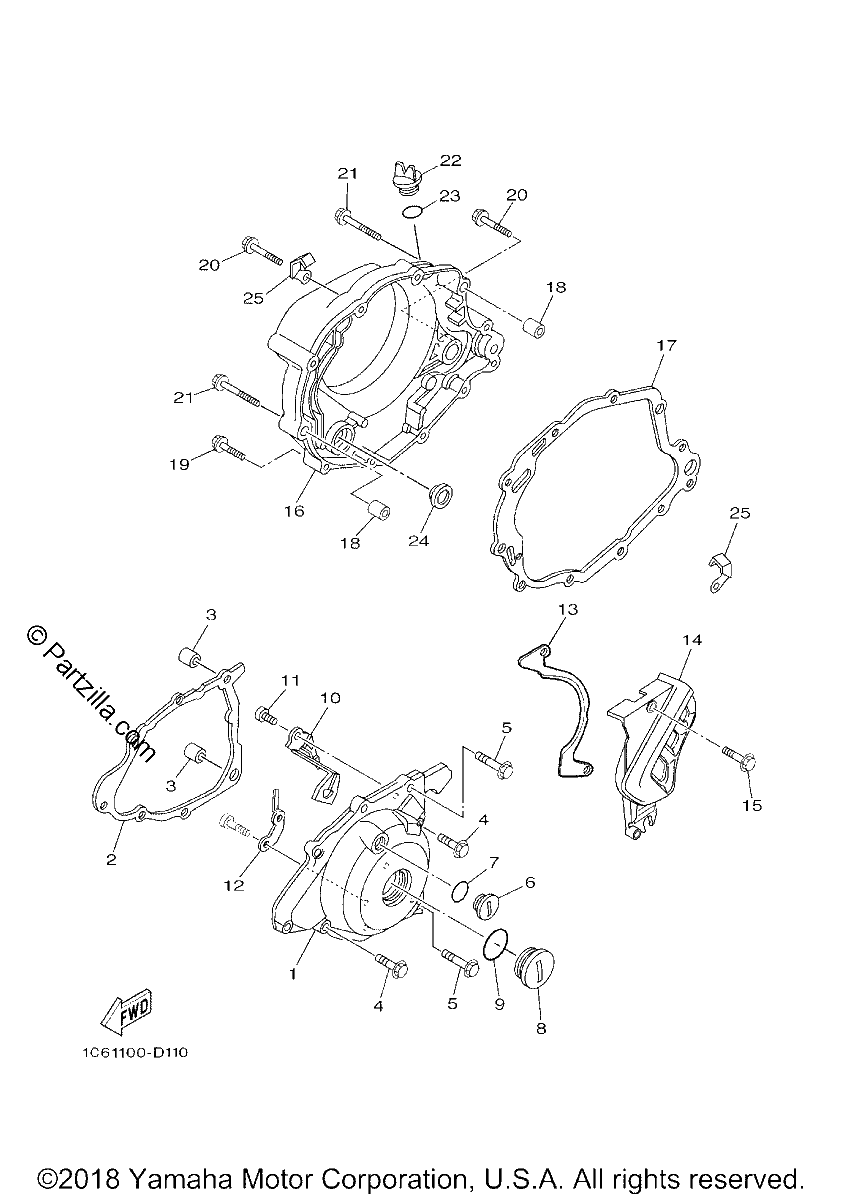

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1C6-E5411-00-WN
COVER, CRANKCASE 1
$204.05¢102 025
1
#2
4BE-15451-03-00
GASKET,CRCS COVER
$21.02¢10 513
1
#3
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#4
95027-06025-00
BOLT,SMALL FLANGE
$3.77¢1 888
1
#5
95027-06035-00
BOLT, SMALL FLANGE
$2.20¢1 100
1
#6
90340-14W06-00
PLUG, STRAIGHT SCREW
$8.79¢4 394
1
#7
93210-14369-00
O-Ring
$6.91¢3 456
1
#8
90340-32123-00
PLUG, STRAIGHT SCREW
$23.52¢11 763
1
#9
93210-32172-00
O-Ring
$6.88¢3 438
1
#10
1C6-E5758-00-00
GUIDE, ROPE
$5.44¢2 719
1
#11
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#12
1C6-E5484-00-00
CLAMP 2
$2.88¢1 438
1
#13
1C6-E7466-00-00
Guide, Chain
$35.67¢17 838
1
#14
1C6-E5420-00-00
CRANKCASE COVER AS This item has been discontinued and may not be available. Contact us for more information.
$66.36¢33 181
1
#15
95027-06025-00
BOLT,SMALL FLANGE
$3.77¢1 888
1
#16
4VW-WE543-00-00
COVER, CRANKCASE 3
$378.35¢189 175
1
#17
4BE-15462-00-00
GASKET,CRCS CVR 3
$35.19¢17 594
1
#18
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#19
95027-06025-00
BOLT,SMALL FLANGE
$3.77¢1 888
1
#20
95027-06035-00
BOLT, SMALL FLANGE
$2.20¢1 100
1
#21
95027-06045-00
BOLT, SMALL FLANGE
$2.95¢1 475
1
#22
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#23
93210-19123-00
O-Ring
$8.24¢4 119
1
#24
3Y1-15361-00-00
GAUGE,LEVEL
$30.38¢15 188
1
#25
90462-08225-00
CLAMP
$9.19¢4 594
1
