CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

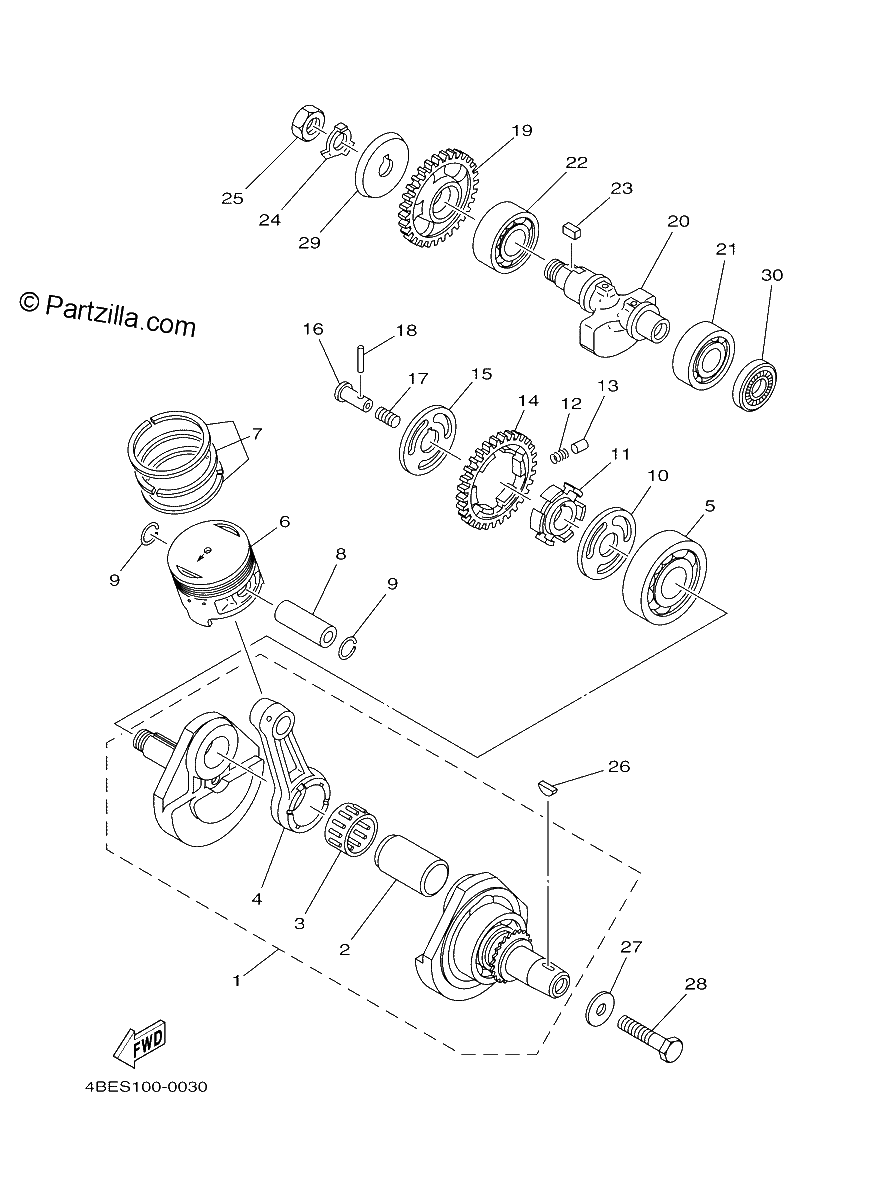

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
3RW-11400-00-00
CRANKSHAFT ASY
$613.49¢306 744
1
#2
5H0-11681-00-00
PIN,CRANK 1
$50.72¢25 362
1
#3
93310-530J3-00
BEARING,CYL.#10
$70.60¢35 300
1
#4
29U-11651-00-00
ROD,CONNECTING
$137.64¢68 819
1
#5
93306-30611-00
BEARING
$89.36¢44 681
1
#6
1KH-11631-01-C0
PISTON (Std)
$136.76¢68 381
1
#6
1KH-11636-01-00
PISTON 2ND O/S
$141.31¢70 656
1
#6
1KH-11638-01-00
PISTON 4TH O/S
$141.31¢70 656
1
#7
29U-11610-00-00
PISTON RINGSET STD
$59.57¢29 787
1
#7
29U-11610-20-00
PISTON RINGSET 2ND
$64.94¢32 469
1
#7
29U-11610-40-00
PISTON RING SET (1.00MM O/S) | AP
$55.27¢27 638
1
#8
15A-11633-00-00
PIN, PISTON
$34.14¢17 069
1
#9
93450-17044-00
CIRCLIP,INNER
$6.25¢3 125
1
#10
90201-201E4-00
WASHER,PLATE
$12.71¢6 356
1
#11
5H0-11496-00-00
BOSS,BUFFER
$131.84¢65 919
1
#12
90501-21133-00
SPRING,COMPRESSION
$8.64¢4 319
1
#13
93605-10090-00
PIN,DOWEL
$6.63¢3 313
1
#14
5H0-11536-00-00
GEAR,DRIVE
$137.39¢68 694
1
#15
90214-20023-00
WASHER,CLAW
$6.95¢3 475
1
#16
90240-07083-00
PIN,CLEVIS
$15.95¢7 975
1
#17
90501-07629-00
SPRING,COMPRESSION
$8.45¢4 225
1
#18
93602-13177-00
PIN,DOWEL
$2.61¢1 306
1
#19
5H0-11531-00-00
GEAR,BALANCE WT
$193.90¢96 950
1
#20
1KH-11454-00-00
WEIGHT 1
$178.26¢89 131
1
#21
93306-205X4-00
BEARING
$14.68¢7 338
1
#22
93306-304YR-00
BEARING
No Disponible
1
#23
90282-05013-00
KEY, STRAIGHT
$8.91¢4 456
1
#24
90215-14205-00
WASHER,LOCK
$7.34¢3 669
1
#25
90170-14284-00
NUT,HEXAGON
$9.45¢4 725
1
#26
90280-05048-00
KEY, WOODRUFF
$14.04¢7 019
1
#27
90201-10508-00
WASHER, PLATE
$17.16¢8 581
1
#28
90101-10188-00
bolt
$9.51¢4 756
1
#29
1KH-11145-00-00
PLATE,BREATHER 2
$13.13¢6 563
1
#30
93101-25106-00
OIL SEAL,S-TYPE
$10.69¢5 344
1
