REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

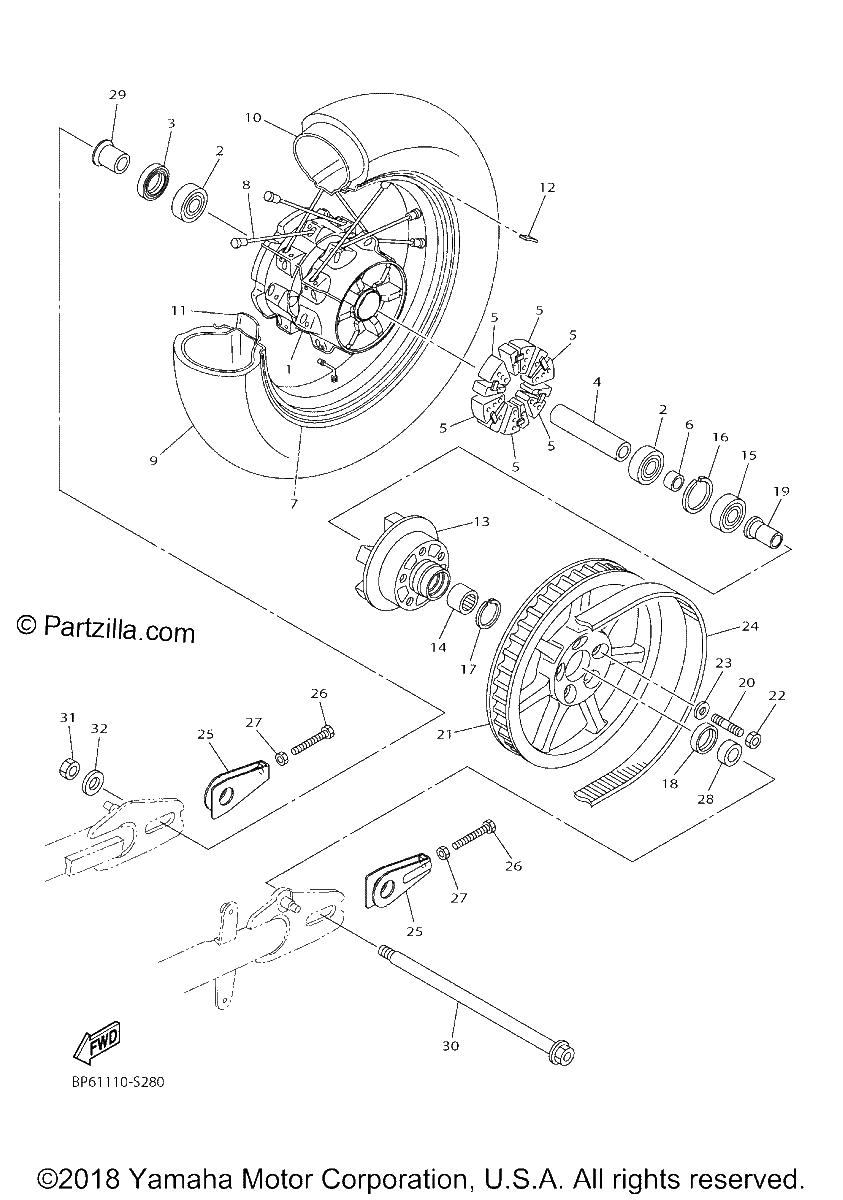

Diagrama de REAR WHEEL

Repuestos

#1
BP6-25311-00-00
Hub, Rear
$1001.64¢500 819
1
#2
93306-20417-00
BEARING
$38.35¢19 176
1
#3
93106-28023-00
OIL SEAL
$11.64¢5 819
1
#4
1TP-25317-00-00
SPACER, BEARING
$16.26¢8 131
1
#5
4WM-25364-00-00
DAMPER
$21.40¢10 701
1
#6
1TP-25383-00-00
COLLAR, WHEEL
$20.73¢10 367
1
#7
94435-16005-00
RIM
$469.22¢234 611
1
#8
BP6-25304-00-00
SPOKE SET, REAR
$145.20¢72 599
1
#9
94115-16033-00
Tire
$477.31¢238 654
1
#10
94215-16003-00
TUBE
$78.90¢39 451
1
#11
94315-16178-00
BAND, RIM (3.50-16) UR BS
$4.97¢2 484
1
#12
2CR-25398-00-00
BALANCER, WHEEL (5G) | UN
$5.04¢2 519
1
#13
1TP-25366-00-00
CLUTCH, HUB
$193.53¢96 767
1
#14
93311-32698-00
BEARING
$72.28¢36 139
1
#15
93306-30437-00
BEARING
$62.58¢31 292
1
#16
99009-52500-00
CIRCLIP
$11.76¢5 882
1
#17
93450-35163-00
CIRCLIP
$2.79¢1 397
1
#18
93106-30004-00
OIL SEAL
$12.03¢6 015
1
#19
4WM-25376-10-00
COLLAR, WHEEL
$42.89¢21 447
1
#20
95612-12630-00
BOLT, STUD
$9.46¢4 732
1
#21
1TP-25470-00-00
SPROCKET, DRIVEN (70T)
$698.57¢349 284
1
#22
95614-12100-00
NUT, U
$4.47¢2 237
1
#23
90201-12045-00
WASHER, PLATE
$5.65¢2 823
1
#24
1TP-46241-10-00
V-BELT (replaces 1TP-46241-00-00)
$381.57¢190 785
1
#25
1TP-25388-00-00
PULLER, CHAIN 1
$25.48¢12 742
1
#26
90101-08777-00
BOLT
$6.89¢3 444
1
#27
95317-08700-00
NUT
$7.72¢3 858
1
#28
90387-20034-00
COLLAR
$15.21¢7 607
1
#29
90387-2000B-00
COLLAR
No Disponible
1
#30
1TP-25381-00-00
AXLE, WHEEL
$99.31¢49 657
1
#31
90185-18009-00
NUT, SELF-LOCKING
$17.39¢8 694
1
#32
90201-18020-00
WASHER, PLATE
$2.68¢1 340
1
