STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

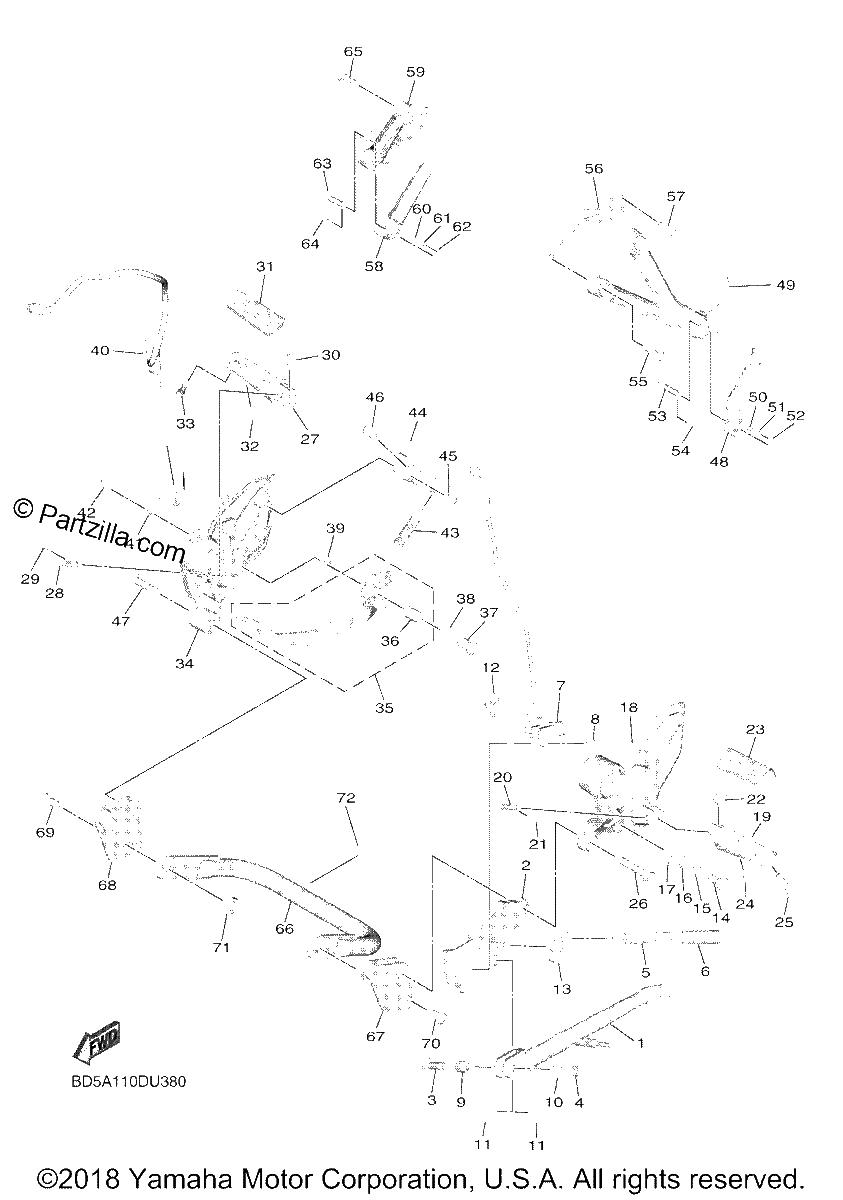

Diagrama de STAND FOOTREST

Repuestos

#1
BD5-27311-00-00
STAND, SIDE
$76.35¢38 174
1
#2
BD5-27321-00-00
BRACKET, side stand
$91.02¢45 511
1
#3
90105-10188-00
BOLT, FLANGE
$11.11¢5 555
1
#4
95617-10100-00
NUT, U
$6.76¢3 381
1
#5
2S3-27116-00-00
SPRING, MAIN STAND
$16.51¢8 257
1
#6
90445-197J2-00
HOSE (L60)
$4.30¢2 151
1
#7
1RC-82566-50-00
SWITCH, SIDE STAND
$70.17¢35 087
1
#8
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#9
90387-10050-00
COLLAR
$22.08¢11 040
1
#10
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#11
90201-17018-00
WASHER, PLATE
$1.61¢805
1
#12
BD5-27323-00-00
BRACKET 1
$8.99¢4 497
1
#13
2S3-27315-00-00
LINK, SIDE STAND
$13.36¢6 681
1
#14
2S3-27217-10-00
BOLT
$14.34¢7 170
1
#15
90206-12074-00
WASHER,WAVE
$7.65¢3 824
1
#16
90201-12013-00
WASHER, PLATE
$6.92¢3 461
1
#17
90201-080H1-00
WASHER, PLATE
$4.20¢2 099
1
#18
BD5-27442-00-00
BRACKET 2
$98.92¢49 461
1
#19
4BH-27451-01-00
FOOTREST
$55.67¢27 836
1
#20
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#21
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#22
90508-183B9-00
SPRING, TORSION
$3.04¢1 518
1
#23
BD5-27413-00-00
COVER, FOOTREST
$19.95¢9 976
1
#24
98580-05014-00
SCREW, PAN HEAD
$8.04¢4 019
1
#25
90109-08202-00
BOLT (replaces 90109-08231-00)
$4.48¢2 242
1
#26
90105-10329-00
Bolt, Flange
$7.45¢3 726
1
#27
4BH-27461-01-00
FOOTREST
$55.48¢27 738
1
#28
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#29
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#30
90508-184B0-00
SPRING, TORSION
$2.74¢1 368
1
#31
BD5-27413-00-00
COVER, FOOTREST
$19.95¢9 976
1
#32
98580-05014-00
SCREW, PAN HEAD
$8.04¢4 019
1
#33
90109-08202-00
BOLT (replaces 90109-08231-00)
$4.48¢2 242
1
#34
BD5-27443-00-00
BRACKET 3
$112.91¢56 454
1
#35
BD5-27211-00-00
PEDAL, BRAKE
$122.00¢61 002
1
#36
90386-14171-00
BUSH
$7.44¢3 720
1
#37
4C8-27434-10-00
BOLT
$21.36¢10 678
1
#38
90206-14086-00
WASHER, WAVE
$6.76¢3 381
1
#39
90201-08103-00
WASHER, PLATE
$6.21¢3 105
1
#40
BD5-82530-00-00
STOP SWITCH ASSY
$70.52¢35 259
1
#41
BD5-2144G-00-00
STAY, STOP SWITCH
$8.73¢4 364
1
#42
90110-06398-00
BOLT, HEXAGON SOCKET HEAD
$1.41¢707
1
#43
90506-26012-00
Spring, Tension
$13.20¢6 601
1
#44
BD5-27263-00-00
BRACKET 1
$17.65¢8 826
1
#45
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#46
90464-11015-00
Clamp
$1.75¢874
1
#47
90105-10252-00
BOLT, FLANGE
$4.94¢2 472
1
#48
B5C-27431-00-00
FOOTREST, REAR 1
$15.21¢7 607
1
#49
BD5-2741L-00-00
BRACKET 4
$87.97¢43 988
1
#50
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#51
93501-04011-00
BALL
$6.87¢3 433
1
#52
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#53
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#54
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#55
90111-08083-00
BOLT, HEX. SOCKET BUTTON
$2.20¢1 098
1
#56
BD5-27911-00-00
HOLDER
$15.43¢7 716
1
#57
92017-06030-00
BOLT, BUTTON HEAD
$7.30¢3 651
1
#58
B5C-27441-00-00
FOOTREST, REAR 2
$15.21¢7 607
1
#59
BD5-2742L-00-00
BRACKET 5
$79.76¢39 882
1
#60
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#61
93501-04011-00
BALL
$6.87¢3 433
1
#62
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#63
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#64
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#65
90111-08083-00
BOLT, HEX. SOCKET BUTTON
$2.20¢1 098
1
#66
BD5-27133-00-00
TUBE, CROSS 1
$143.99¢71 996
1
#67
BD5-274A3-00-00
BRACKET, ADAPTER 1
$48.58¢24 288
1
#68
BD5-274A4-00-00
BRACKET, ADAPTER 2
$51.31¢25 656
1
#69
95817-10025-00
BOLT, FLANGE
$6.75¢3 375
1
#70
92017-10025-00
BOLT, BUTTON HEAD
$3.48¢1 742
1
#71
90185-10170-00
NUT,SELF-LOCKING (replaces 95604-10200-00)
$8.75¢4 376
1
#72
BD5-2815P-00-00
LABEL, NOTICE 1
$3.43¢1 713
1
