FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

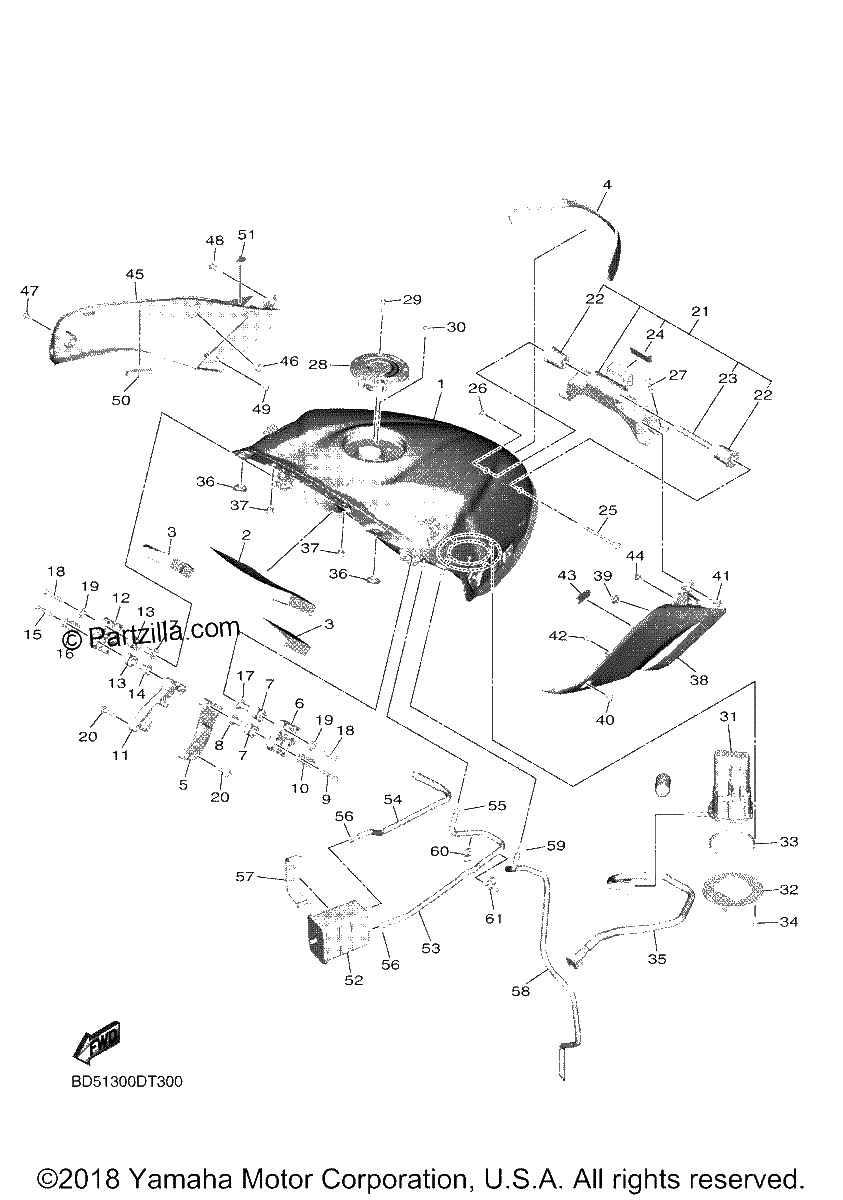

Diagrama de FUEL TANK

Repuestos

#1
BD5-YK241-00-P0
FUEL TANK COMP.
$1729.59¢864 794
1
#2
90520-20013-00
DAMPER, PLATE
$3.99¢1 995
1
#3
90520-20014-00
DAMPER, PLATE
$1.08¢541
1
#4
BD5-2414K-00-00
DAMPER, plate 3
$8.35¢4 174
1
#5
BD5-24192-00-00
BRACKET, FUEL TANK 2
$38.70¢19 349
1
#6
BD5-2419F-00-00
BRACKET, CANISTOR
$21.83¢10 914
1
#7
90480-18017-00
Grommet
$2.91¢1 455
1
#8
90387-06266-00
COLLAR
$4.30¢2 151
1
#9
95022-06035-00
Bolt, Flange
$3.27¢1 633
1
#10
BD5-24186-00-00
WASHER, special
$4.51¢2 254
1
#11
BD5-24192-10-00
BRACKET, FUEL TANK 2
$38.73¢19 366
1
#12
BD5-2419F-00-00
BRACKET, CANISTOR
$21.83¢10 914
1
#13
90480-18017-00
Grommet
$2.91¢1 455
1
#14
90387-06266-00
COLLAR
$4.30¢2 151
1
#15
95022-06035-00
Bolt, Flange
$3.27¢1 633
1
#16
BD5-24186-00-00
WASHER, special
$4.51¢2 254
1
#17
90387-06339-00
Collar
$8.96¢4 479
1
#18
90110-06265-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
#19
90201-06036-00
WASHER, PLATE
$6.87¢3 433
1
#20
90105-06169-00
BOLT, FLANGE
$1.32¢661
1
#21
BD5-2412F-00-00
Bracket, Seat
$73.39¢36 697
1
#22
BD5-24183-00-00
DAMPER, LOCATING 3
$3.52¢1 759
1
#23
90387-06342-00
Collar
$8.96¢4 479
1
#24
BD5-2414N-00-00
DAMPER, PLATE 4
$2.74¢1 368
1
#25
95812-06090-00
BOLT, FLANGE
$3.13¢1 564
1
#26
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#27
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#28
39P-24602-00-00
CAP ASSY
$248.96¢124 482
1
#29
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#30
91312-05010-00
BOLT
$5.39¢2 697
1
#31
BD5-13907-00-00
FUEL PUMP COMP.
$485.43¢242 713
1
#32
BD5-24491-00-00
Bracket, Fuel Pump
$11.02¢5 509
1
#33
1RC-24486-00-00
O-RING
$26.89¢13 443
1
#34
91312-05010-00
BOLT
$5.39¢2 697
1
#35
BD5-13971-00-00
PIPE, FUEL 1
$66.76¢33 379
1
#36
90480-01141-00
90480-01401-00 This item has been discontinued and may not be available. Contact us for more information.
$6.21¢3 105
1
#37
90179-05523-00
NUT
$6.23¢3 117
1
#38
BD5-24129-00-00
COVER, SIDE 1
$34.43¢17 216
1
#39
90269-09006-00
RIVET
$1.64¢822
1
#40
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#41
90269-07007-00
RIVET
$3.68¢1 840
1
#42
90338-07180-00
PLUG
$6.22¢3 111
1
#43
5PS-28372-00-00
DAMPER
$0.85¢426
1
#44
13S-28415-00-00
DAMPER 1
$7.23¢3 617
1
#45
BD5-24139-00-00
COVER, SIDE 2
$34.43¢17 216
1
#46
90269-09006-00
RIVET
$1.64¢822
1
#47
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#48
90269-07007-00
RIVET
$3.68¢1 840
1
#49
90338-07180-00
PLUG
$6.22¢3 111
1
#50
5PS-28372-00-00
DAMPER
$0.85¢426
1
#51
13S-28415-00-00
DAMPER 1
$7.23¢3 617
1
#52
2CR-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$346.86¢173 432
1
#53
BD5-24312-10-00
PIPE 2
$39.43¢19 717
1
#54
BD5-24313-10-00
PIPE 3
$33.87¢16 934
1
#55
90467-090A2-00
Clip
$2.74¢1 368
1
#56
90467-09026-00
CLIP,SCISSOR
$2.99¢1 495
1
#57
5JJ-82131-00-00
BAND, BATTERY
$12.60¢6 302
1
#58
BD5-24321-00-00
PIPE 10
$24.56¢12 282
1
#59
90467-090A2-00
Clip
$2.74¢1 368
1
#60
90464-09M31-00
CLAMP
$6.77¢3 387
1
#61
90464-10015-00
Clamp
$2.54¢1 271
1
