FRONT FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

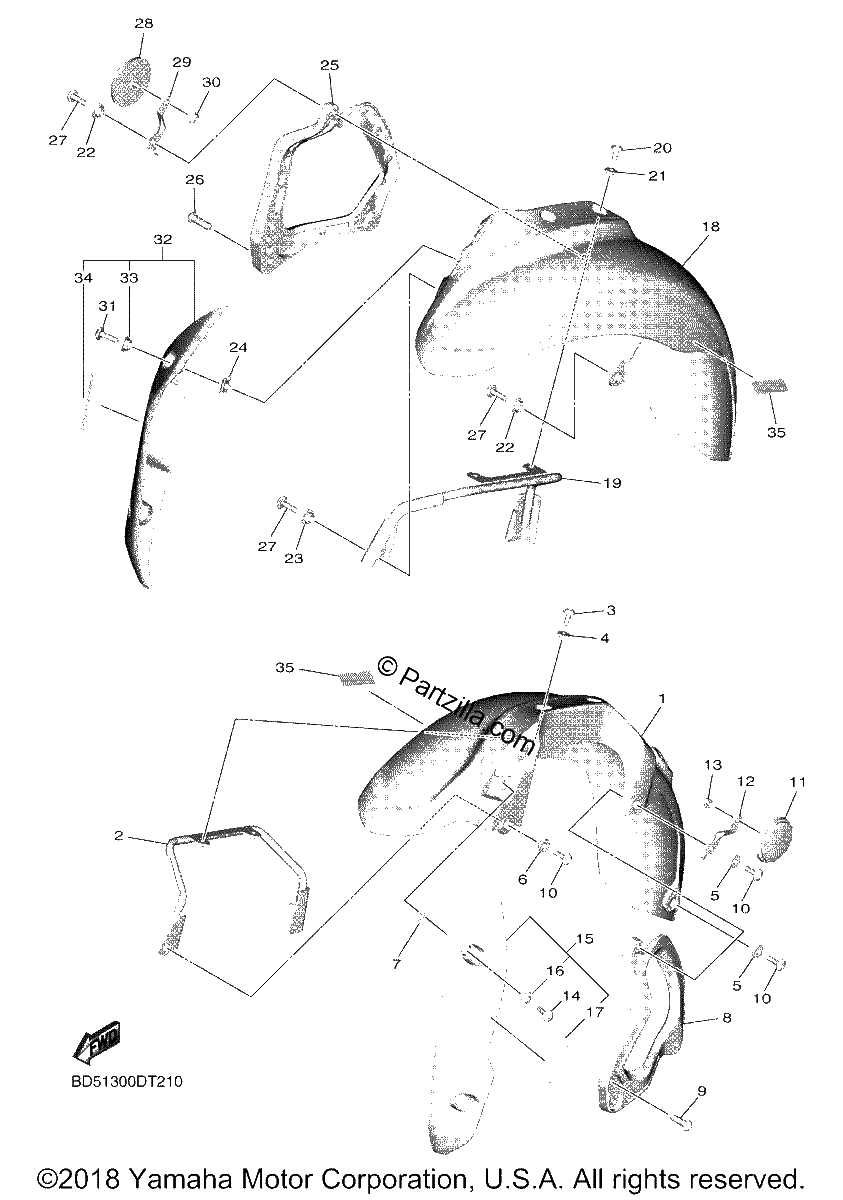

Diagrama de FRONT FENDER

Repuestos

#1
BD5-21511-00-00
FENDER, FRONT
$48.33¢24 167
1
#2
BD5-21562-00-00
STAY, FENDER 3
$74.66¢37 329
1
#3
90111-06097-00
BOLT,HEX. SOCKET BUTTON
$3.39¢1 696
1
#4
90387-06184-00
COLLAR
$4.98¢2 490
1
#5
90387-07052-00
Collar
$3.66¢1 829
1
#6
90387-09021-00
Collar
$3.79¢1 897
1
#7
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#8
BD5-21587-00-00
STAY 1
$73.12¢36 558
1
#9
90111-08022-00
bolt
$2.74¢1 368
1
#10
90111-06123-00
BOLT,HEX. SOCKET BUTTON
$3.44¢1 719
1
#11
4AG-85111-00-00
REFLECTOR, FRONT 1
$14.03¢7 015
1
#12
BD5-85112-00-00
BRACKET, REFLECTOR 1
$8.96¢4 479
1
#13
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#14
90111-06178-00
BOLT,HEX. SOCKET BUTTON
$3.90¢1 949
1
#15
BD5-Y215F-00-P0
STAY FENDER 1 ASSY.
$78.87¢39 433
1
#16
90387-09021-00
Collar
$3.79¢1 897
1
#17
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
#18
BD5-21556-00-00
FENDER, FRONT 2
$50.90¢25 449
1
#19
BD5-21563-00-00
STAY, FENDER 4
$74.66¢37 329
1
#20
90111-06097-00
BOLT,HEX. SOCKET BUTTON
$3.39¢1 696
1
#21
90387-06184-00
COLLAR
$4.98¢2 490
1
#22
90387-07052-00
Collar
$3.66¢1 829
1
#23
90387-09021-00
Collar
$3.79¢1 897
1
#24
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#25
BD5-21588-00-00
STAY 2
$73.12¢36 558
1
#26
90111-08022-00
bolt
$2.74¢1 368
1
#27
90111-06123-00
BOLT,HEX. SOCKET BUTTON
$3.44¢1 719
1
#28
4AG-85111-00-00
REFLECTOR, FRONT 1
$14.03¢7 015
1
#29
BD5-85122-00-00
BRACKET, REFLECTOR 2
$7.81¢3 904
1
#30
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#31
90111-06178-00
BOLT,HEX. SOCKET BUTTON
$3.90¢1 949
1
#32
BD5-Y215G-00-P0
STAY FENDER 2 ASSY.
$78.87¢39 433
1
#33
90387-09021-00
Collar
$3.79¢1 897
1
#34
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
#35
BD5-2151A-20-00
LABEL 1
$3.38¢1 691
1
