SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

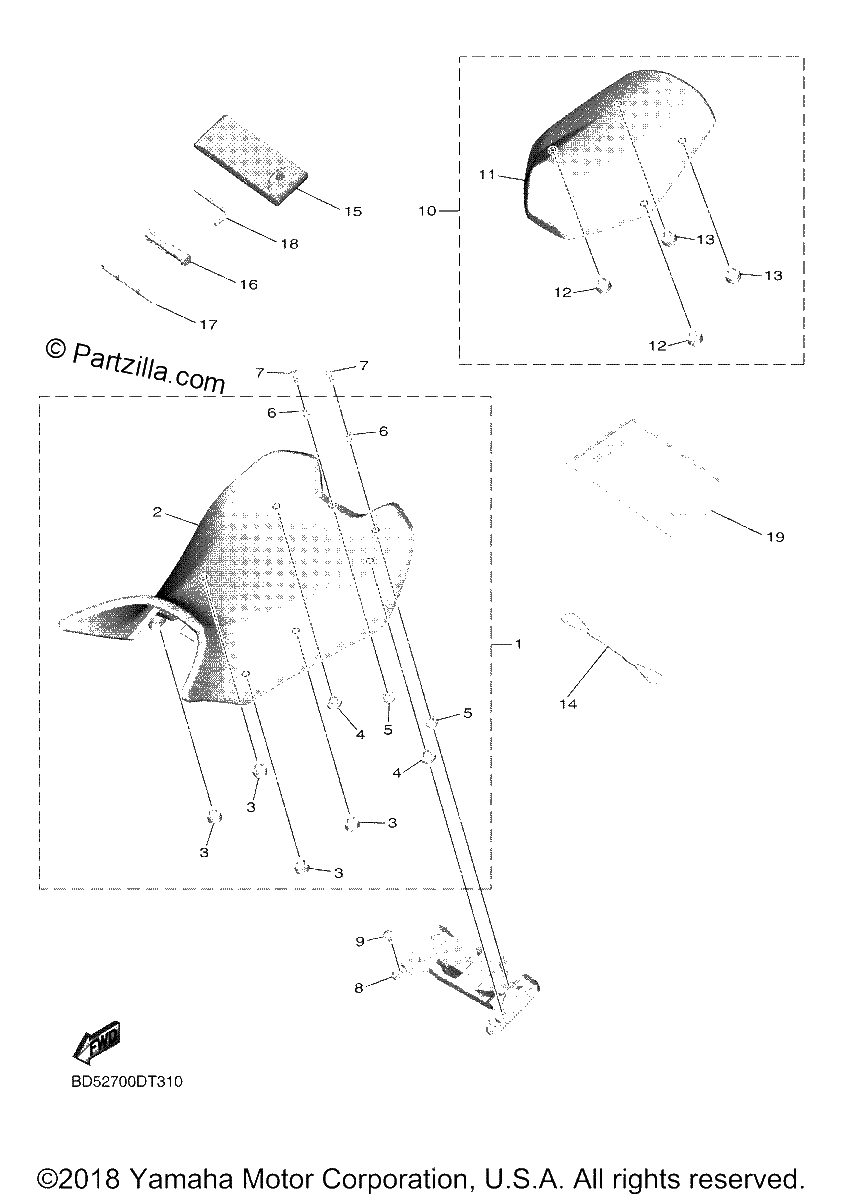

Diagrama de SEAT

Repuestos

#1
BD5-24710-00-00
SINGLE SEAT ASSY
$192.85¢96 427
1
#2
BD5-2470F-00-00
. .SEAT COVER COMP.
$104.86¢52 429
1
#3
278-27114-00-00
STOPPER, MAIN STAND
$9.28¢4 640
1
#4
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#5
90480-14604-00
GROMMET
$8.13¢4 065
1
#6
90387-07391-00
COLLAR
$8.49¢4 244
1
#7
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#8
BD5-21946-00-00
BRACKET, SEAT FITTING
$61.43¢30 717
1
#9
90149-06023-00
SCREW
$5.06¢2 530
1
#10
BD5-24750-00-00
TANDEM SEAT ASSY
$142.05¢71 024
1
#11
BD5-2470H-00-00
. . SEAT COVER COMP. , 2
$61.40¢30 699
1
#12
371-27114-00-00
STOPPER, MAIN STAND
$6.36¢3 180
1
#13
4GL-27114-00-00
STOPPER, MAIN STAND
$15.65¢7 826
1
#14
4B5-21398-00-00
HANGER, HELMET
$31.87¢15 933
1
#15
5PX-28111-00-00
Bag
$8.69¢4 347
1
#16
2H7-28151-00-00
GRIP, DRIVER
$6.51¢3 254
1
#17
2GV-28152-00-00
DRIVER
$4.23¢2 116
1
#18
14B-28164-00-00
WRENCH, HEXAGON 8
$4.13¢2 064
1
#19
4KG-28186-10-00
POUCH
$7.81¢3 904
1
