REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

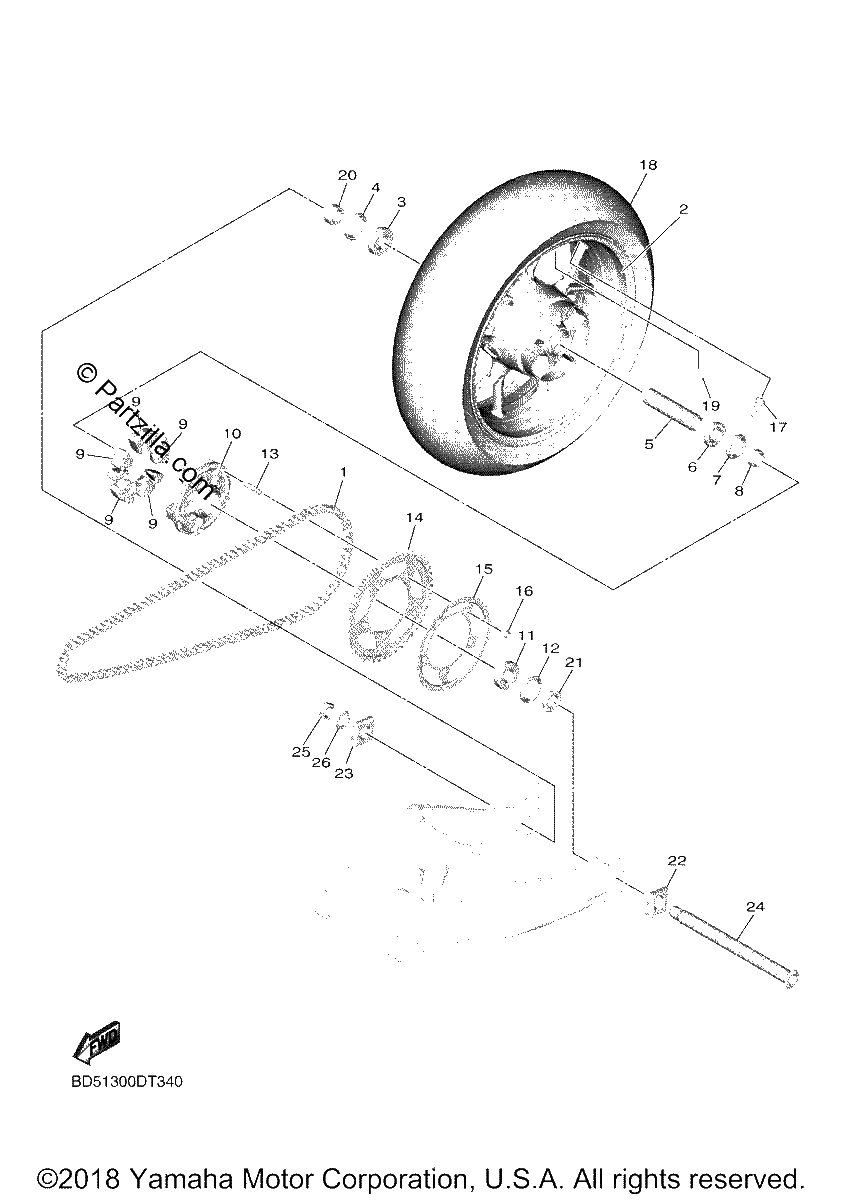

Diagrama de REAR WHEEL

Repuestos

#1
94582-49114-00
CHAIN
$254.02¢127 012
1
#2
BD5-25338-00-P0
CAST WHEEL, REAR | DPBM15
$672.74¢336 369
1
#3
93306-20531-00
BEARING
$48.71¢24 357
1
#4
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#5
2CR-25317-00-00
SPACER, bearing
$33.28¢16 641
1
#6
93306-07806-00
BEARING
$63.24¢31 619
1
#7
93106-35042-00
OIL SEAL
$14.33¢7 165
1
#8
5EB-25377-00-00
COLLAR, WHEEL
$28.40¢14 202
1
#9
BD5-25364-00-00
Damper
$13.81¢6 906
1
#10
2CR-25366-00-00
CLUTCH, HUB
$191.85¢95 927
1
#11
93306-20531-00
BEARING
$48.71¢24 357
1
#12
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#13
90116-10048-00
BOLT, STUD
$25.00¢12 500
1
#14
BD5-25447-00-00
SPROCKET, DRIVEN (47T)
$210.15¢105 075
1
#15
BD5-2537W-00-00
BRACKET 1
$41.02¢20 510
1
#16
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#17
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$15.85¢7 923
1
#18
94119-17076-00
TIRE(190/55R17 M/C 75V)
$426.64¢213 319
1
#19
2CR-25398-00-00
BALANCER, WHEEL (5G) | UN
$5.04¢2 519
1
#20
90387-28017-00
COLLAR
$33.66¢16 830
1
#21
90387-28029-00
Collar
$28.77¢14 386
1
#22
5VY-25388-00-00
PULLER, CHAIN 1
$59.42¢29 710
1
#23
5VY-25389-01-00
PULLER, CHAIN 2
$38.31¢19 153
1
#24
4C8-25381-00-00
AXLE, WHEEL
$134.10¢67 051
1
#25
90185-24007-00
NUT, SELF-LOCKING
$39.33¢19 665
1
#26
90201-25020-00
WASHER, PLATE
$7.01¢3 507
1
