COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

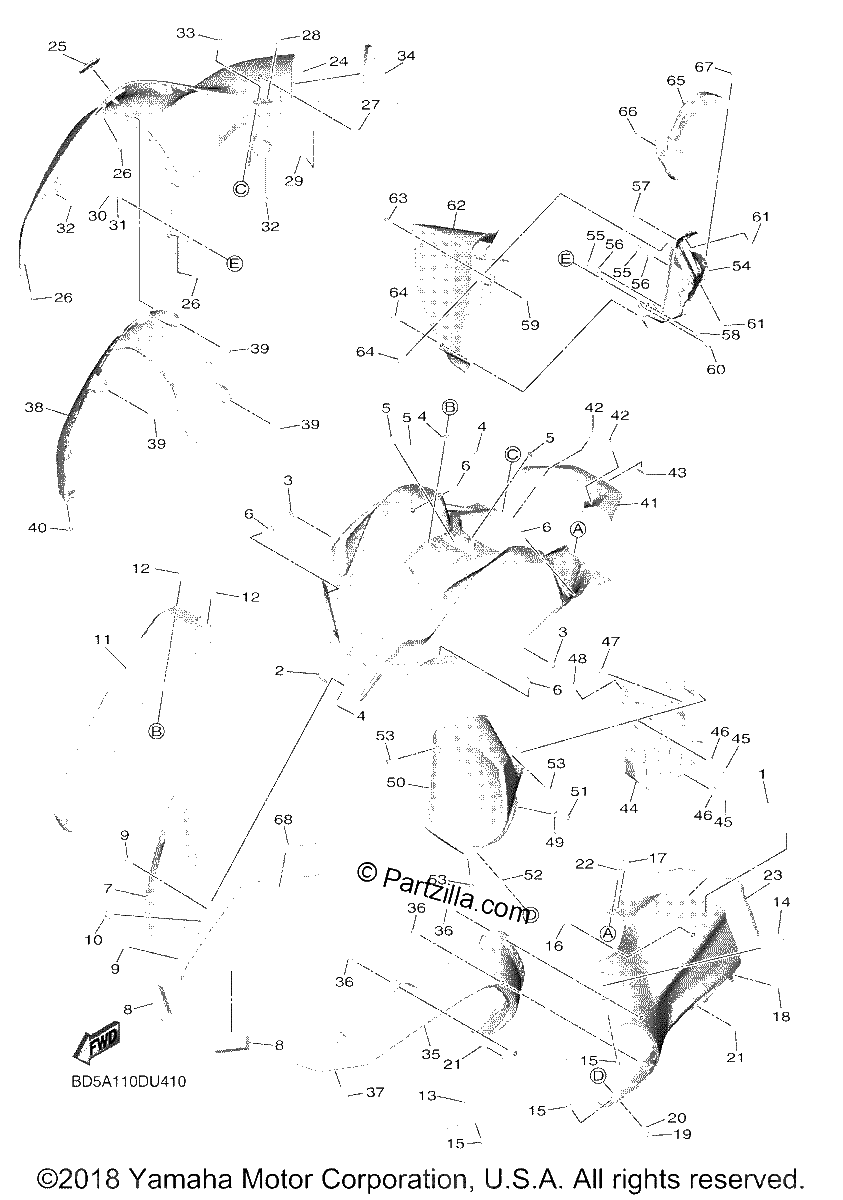

Diagrama de COWLING 2

Repuestos

#1
29P-2816R-00-00
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
1
#2
BD5-23121-00-00
COVER, UPPER 1
$89.34¢44 669
1
#3
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#4
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#5
90183-05042-00
NUT, SPRING
$1.25¢625
1
#6
90269-06008-00
RIVET
$8.80¢4 400
1
#7
BD5-2838D-00-P0
COVER, HEADLIGHT 1
$260.99¢130 494
1
#8
13S-12678-00-00
DAMPER, AIR SHROUD 5
$7.86¢3 931
1
#9
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#10
90480-01559-00
Grommet
$5.72¢2 863
1
#11
BD5-23391-00-00
Panel, Front
$43.98¢21 988
1
#12
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#13
BD5-2842M-00-P0
COVER 1
$333.98¢166 988
1
#14
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#15
90464-04005-00
Clamp
$3.81¢1 906
1
#16
90269-09006-00
RIVET
$1.79¢894
1
#17
90111-05034-00
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
1
#18
90105-05002-00
BOLT, FLANGE
$1.57¢788
1
#19
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#20
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#21
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#22
90269-06008-00
RIVET
$8.80¢4 400
1
#23
2C0-2174X-00-00
DAMPER
$1.99¢994
1
#24
BD5-2842N-00-P0
COVER 2
$333.98¢166 988
1
#25
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#26
90464-04005-00
Clamp
$3.81¢1 906
1
#27
90269-09006-00
RIVET
$1.79¢894
1
#28
90111-05034-00
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
1
#29
90105-05002-00
BOLT, FLANGE
$1.57¢788
1
#30
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#31
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#32
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#33
90269-06008-00
RIVET
$8.80¢4 400
1
#34
2C0-2174X-00-00
DAMPER
$1.99¢994
1
#35
BD5-28345-00-00
MOLE 1
$208.13¢104 063
1
#36
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#37
90269-07007-00
RIVET
$4.00¢2 000
1
#38
BD5-28346-00-00
MOLE 2
$187.21¢93 606
1
#39
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#40
90269-07007-00
RIVET
$4.00¢2 000
1
#41
BD5-2837L-00-00
PANEL, console 1
$28.15¢14 075
1
#42
90269-06008-00
RIVET
$8.80¢4 400
1
#43
5LP-82176-00-00
Damper
$3.73¢1 863
1
#44
BD5-2836H-00-00
BRACKET 5
$19.93¢9 963
1
#45
90111-06059-00
BOLT, HEX. SOCKET BUTTON
$4.65¢2 325
1
#46
90387-06170-00
COLLAR
$7.43¢3 713
1
#47
90269-06008-00
RIVET
$8.80¢4 400
1
#48
90338-07180-00
PLUG
$6.76¢3 381
1
#49
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#50
BD5-21248-01-00
BOX
$35.19¢17 594
1
#51
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
1
#52
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#53
90269-06008-00
RIVET
$8.80¢4 400
1
#54
BD5-2836J-00-00
BRACKET 6
$29.53¢14 763
1
#55
90111-06059-00
BOLT, HEX. SOCKET BUTTON
$4.65¢2 325
1
#56
90387-06170-00
COLLAR
$7.43¢3 713
1
#57
90269-06081-00
RIVET
$6.78¢3 388
1
#58
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#59
90183-05042-00
NUT, SPRING
$1.25¢625
1
#60
90183-061A1-00
Nut, Spring
$8.60¢4 300
1
#61
90338-07180-00
PLUG
$6.76¢3 381
1
#62
BD5-21258-00-00
BOX
$34.00¢17 000
1
#63
90167-05080-00
SCREW, TAPPING
$2.26¢1 131
1
#64
90269-06008-00
RIVET
$8.80¢4 400
1
#65
BD5-2135F-00-00
Cover
$17.99¢8 994
1
#66
90387-06009-00
COLLAR
$9.41¢4 706
1
#67
90269-06008-00
RIVET
$8.80¢4 400
1
#68
BD5-2839B-00-00
EMBLEM 3D
$87.79¢43 894
1
