ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

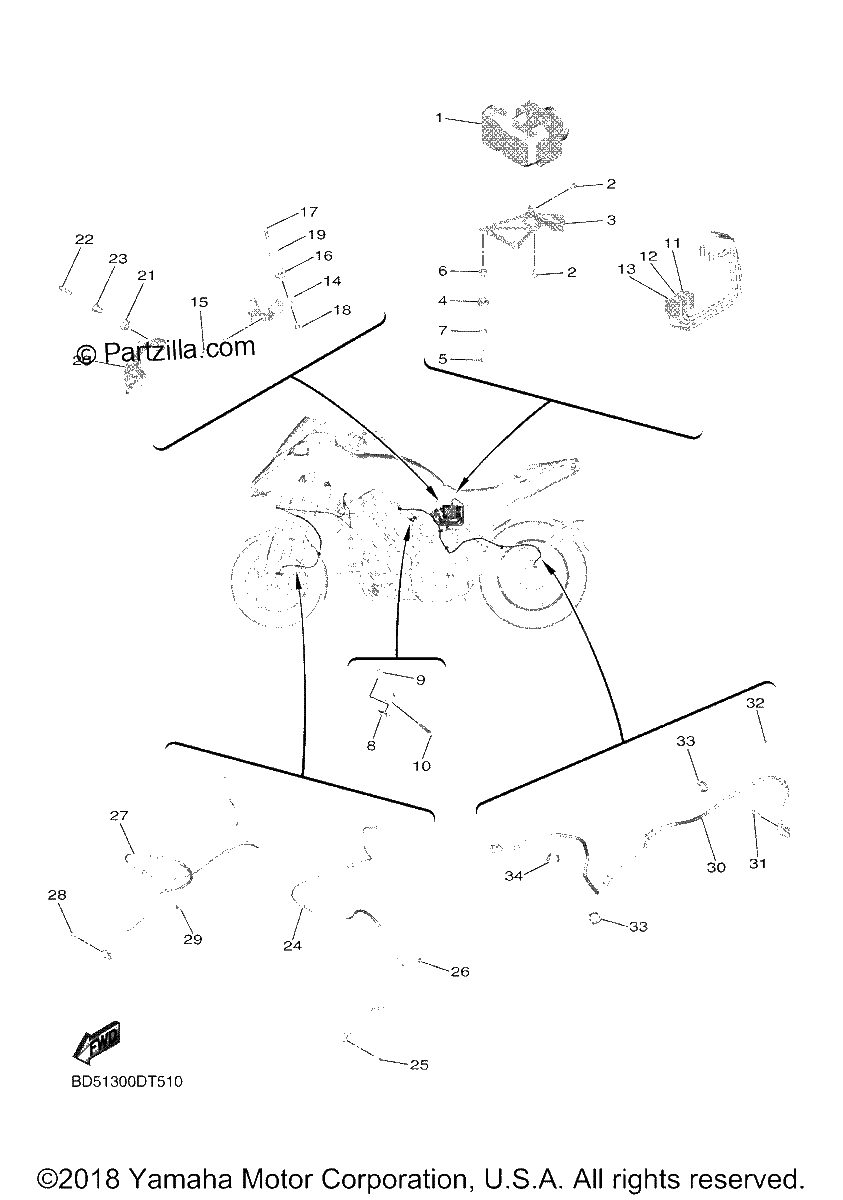

Diagrama de ELECTRICAL 3

Repuestos

#1
BD5-85930-09-00
HYDRAULIC UNIT ASSY
$1374.99¢687 494
1
#2
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#3
BD5-85991-00-00
BRACKET, UNIT
$35.84¢17 919
1
#4
90480-13567-00
GROMMET
$4.63¢2 313
1
#5
92017-06020-00
BOLT, BUTTON HEAD
$3.04¢1 519
1
#6
90387-06160-00
COLLAR
$4.51¢2 256
1
#7
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#8
BD5-85525-00-00
Cover
$11.23¢5 613
1
#9
90111-06009-00
BOLT(3DM)
$6.50¢3 250
1
#10
95022-06050-00
BOLT, FLANGE
$1.70¢850
1
#11
BD5-25871-00-00
PIPE, BRAKE
$58.34¢29 169
1
#12
BD5-25882-00-00
PIPE, BRAKE 2
$47.69¢23 844
1
#13
BD5-25883-00-00
PIPE, BRAKE 3
$56.94¢28 469
1
#14
BD5-85644-00-00
PLATE
$15.88¢7 938
1
#15
95022-06050-00
BOLT, FLANGE
$1.70¢850
1
#16
90480-13567-00
GROMMET
$4.63¢2 313
1
#17
92012-06025-00
BOLT, BUTTON HEAD
$3.44¢1 719
1
#18
90387-06160-00
COLLAR
$4.51¢2 256
1
#19
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#20
BD5-85542-00-00
Bracket
$54.04¢27 019
1
#21
90480-16278-00
Grommet
$3.11¢1 556
1
#22
92012-06025-00
BOLT, BUTTON HEAD
$3.44¢1 719
1
#23
90387-06136-00
COLLAR
$6.76¢3 381
1
#24
BD5-85970-00-00
WHEEL SENSOR ASSY, FRONT
$180.59¢90 294
1
#25
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#26
90464-07001-00
CLAMP
$1.65¢825
1
#27
BD5-85970-10-00
WHEEL SENSOR ASSY, FRONT
$199.11¢99 556
1
#28
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#29
90464-07001-00
CLAMP
$1.65¢825
1
#30
BD5-85980-00-00
WHEEL SENSOR ASSY, REAR
$187.49¢93 744
1
#31
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#32
90465-10098-00
CLAMP
$2.78¢1 388
1
#33
90464-16003-00
CLAMP
$7.46¢3 731
1
#34
90464-16001-00
CLAMP
$2.04¢1 019
1
