ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

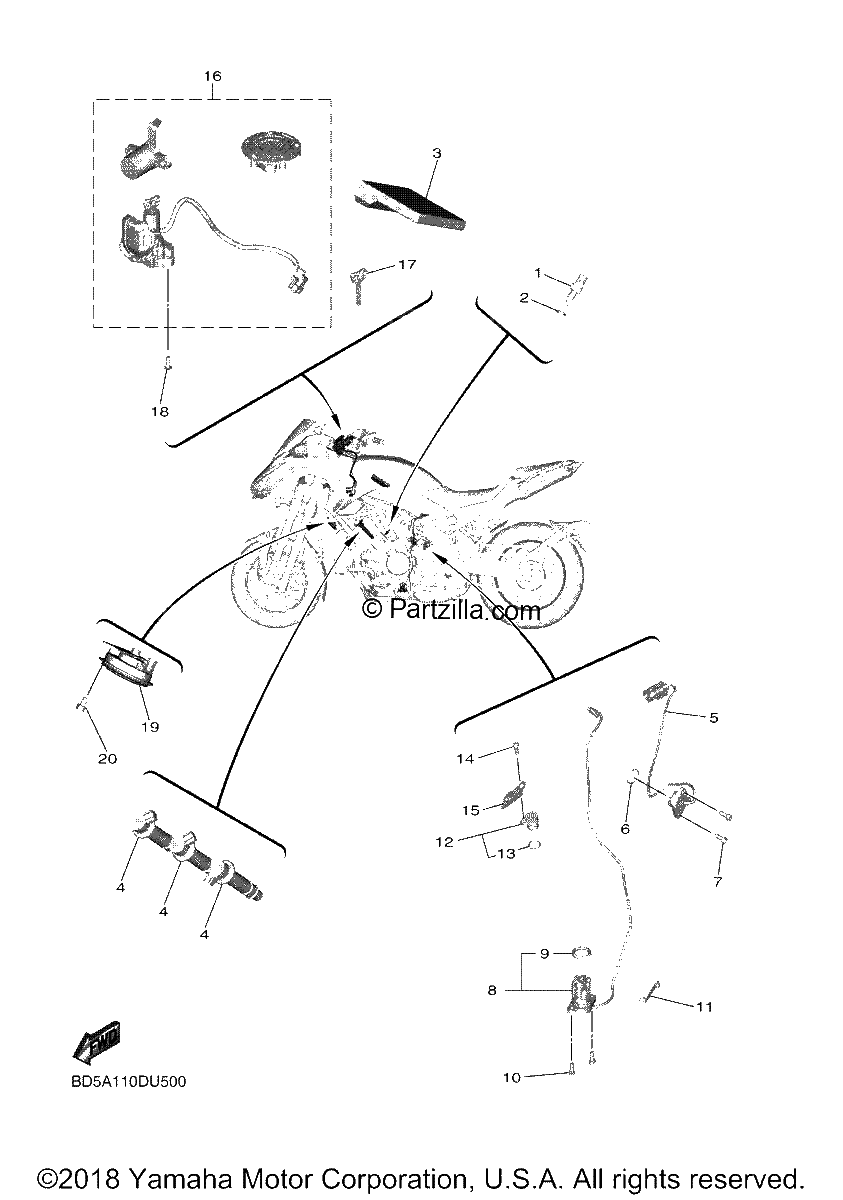

Diagrama de ELECTRICAL 2

Repuestos

#1
90430-10004-00
GASKET
$6.51¢3 254
1
#2
54P-H3591-00-00
THERMO UNIT (replaces 4P9-83591-00-00)
$31.65¢15 824
1
#3
BD5-8591A-10-00
ENGINE CONTROL UNIT ASSY
$1737.64¢868 819
1
#4
39P-82310-10-00
IGNITION COIL ASSY
$166.86¢83 432
1
#5
BD5-82540-00-00
NEUTRAL SWITCH ASSY
$78.13¢39 065
1
#6
93210-21001-00
O-RING
$5.23¢2 616
1
#7
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#8
5S7-85720-00-00
OIL LEVEL GAUGE ASSY
$105.27¢52 636
1
#9
5VY-8A8E0-00-00
O-RING
$11.99¢5 997
1
#10
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#11
90465-08053-00
CLAMP
$5.55¢2 777
1
#12
3P6-15399-00-00
PLUG, BLIND
$20.10¢10 051
1
#13
93210-15566-00
O-RING
$6.32¢3 162
1
#14
91317-06016-00
BOLT
$1.35¢673
1
#15
BD5-15113-00-00
PLATE
$6.12¢3 059
1
#16
BD5-Y825C-01-00
MAIN SWITCH SET
$863.64¢431 819
1
#17
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#18
90109-08196-00
BOLT
$6.76¢3 381
1
#19
BD5-83371-00-00
HORN
$32.25¢16 123
1
#20
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
1
