FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

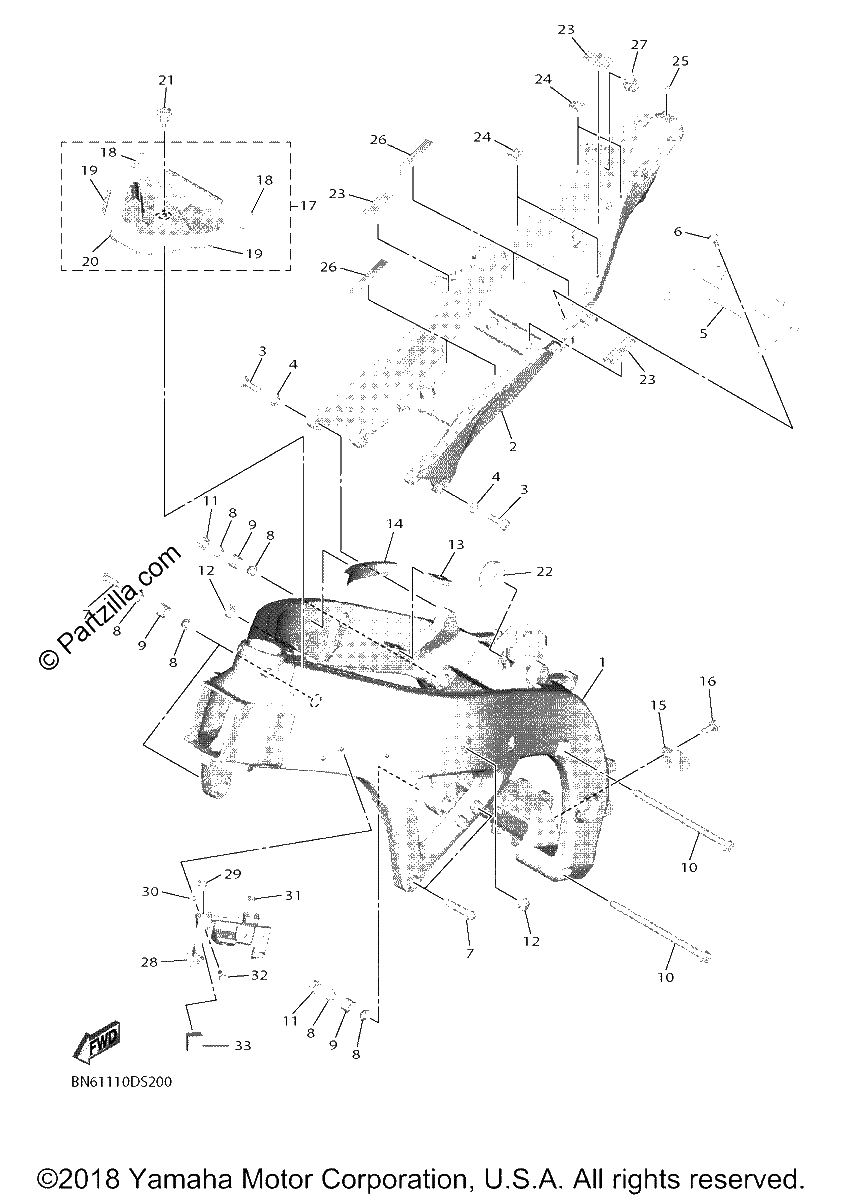

Diagrama de FRAME

Repuestos

#1
BN6-21110-00-00
FRAME COMP.
$2770.34¢1 385 169
1
#2
BN6-21190-00-00
REAR FRAME COMP.
$1546.74¢773 369
1
#3
90149-10003-00
SCREW
$9.57¢4 784
1
#4
2CR-21116-00-00
COLLAR
$17.39¢8 694
1
#5
BN6-21670-00-00
REINF. COMP.
$56.55¢28 273
1
#6
90111-06155-00
BOLT, HEX. SOCKET BUTTON
$1.91¢954
1
#7
95024-10040-00
BOLT, FLANGE (SMALL HEAD)
$3.71¢1 857
1
#8
13S-21414-00-00
BOSS, ENGINE MOUNT
$27.04¢13 518
1
#9
13S-21424-00-00
BOSS, ENGINE MOUNT
$41.25¢20 625
1
#10
90105-12228-00
BOLT, FLANGE
$19.37¢9 683
1
#11
90179-12004-00
NUT
$5.73¢2 864
1
#12
90338-15004-00
PLUG
$6.87¢3 433
1
#13
2C0-24182-00-00
DAMPER, LOCATING 2
$7.28¢3 640
1
#14
2C0-21486-00-00
DAMPER 2
$6.51¢3 254
1
#15
13S-21435-00-00
BRACKET, MUFFLER 1
$20.68¢10 339
1
#16
95812-08020-00
Bolt, Flange
$1.85¢926
1
#17
13S-2110M-00-00
COVER ASSY 1
$50.43¢25 214
1
#18
13S-2174X-00-00
DAMPER
$3.43¢1 713
1
#19
2C0-2174Y-00-00
DAMPER
$3.68¢1 840
1
#20
2C0-21746-00-00
DAMPER
$3.43¢1 713
1
#21
90269-07010-00
RIVET
$4.09¢2 047
1
#22
2C0-21279-00-00
PLUG, BLIND
$5.14¢2 570
1
#23
4B5-28268-00-00
SEAL 4
$7.31¢3 657
1
#24
2CR-22875-01-00
SEAL 3
$2.68¢1 340
1
#25
5SL-21268-00-00
SEAL
$6.51¢3 254
1
#26
4B5-28238-00-00
SEAL 3
$5.21¢2 605
1
#27
90464-13004-00
Clamp
$5.92¢2 961
1
#28
13S-2833A-00-00
BRACKET 7
$8.73¢4 364
1
#29
90480-10003-00
GROMMET
$6.88¢3 439
1
#30
90387-06048-00
Collar
$6.65¢3 323
1
#31
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#32
95D02-06020-00
BOLT, FLANGE DEEP RECESS
$0.28¢138
1
#33
13S-12679-00-00
DAMPER, SHROUD 6
$3.43¢1 713
1
