FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

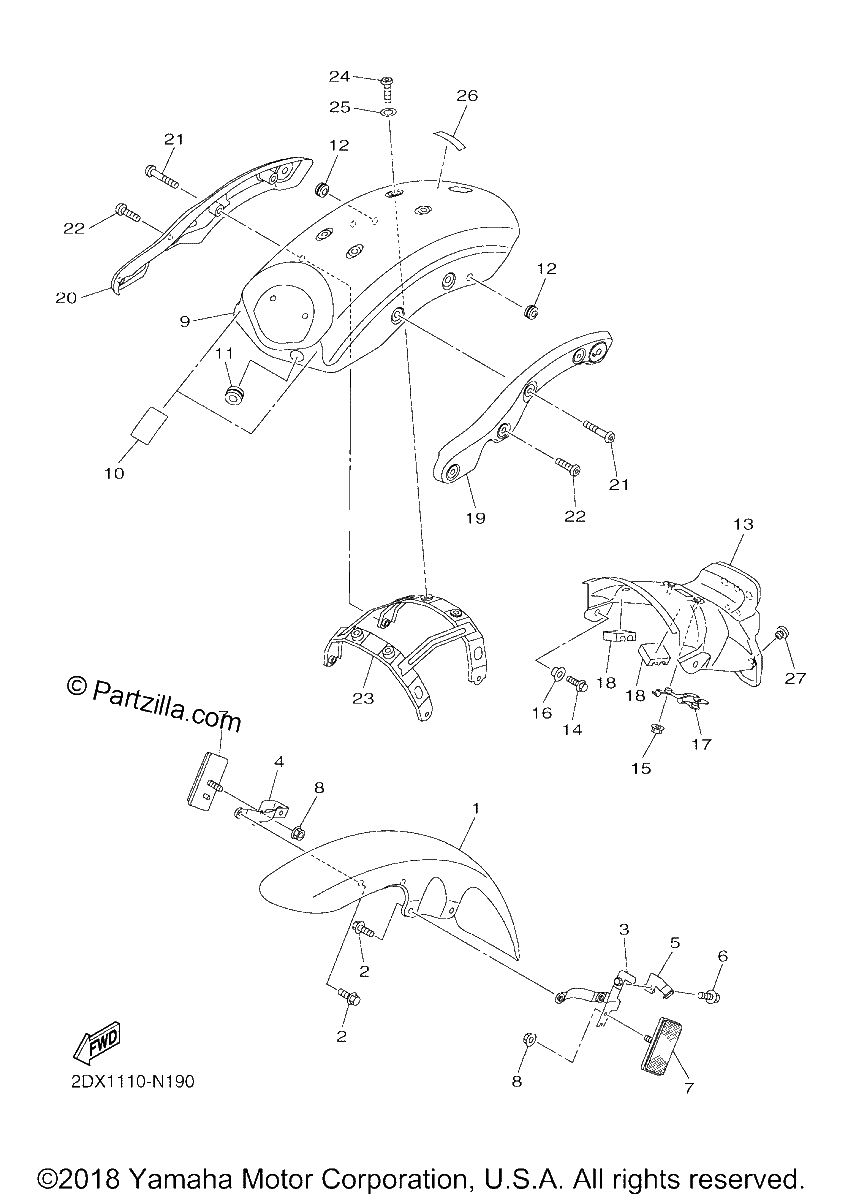

Diagrama de FENDER

Repuestos

#1
1TP-21510-00-P3
FRONT FENDER COMP.
$428.54¢214 269
1
#2
95812-08020-00
Bolt, Flange
$2.01¢1 006
1
#3
1TP-21587-00-00
STAY 1
$28.01¢14 006
1
#4
1TP-21588-00-00
STAY 2
$22.65¢11 325
1
#5
27D-25887-00-00
HOLDER, BRAKE HOSE
$16.36¢8 181
1
#6
95027-06010-00
BOLT,FLANGE(4MY)
$2.95¢1 475
1
#7
11H-85110-01-00
REFLECTOR ASSY
$24.93¢12 463
1
#8
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#9
1TP-21610-01-P3
REAR FENDER COMP.
$762.49¢381 244
1
#10
1TP-21669-00-00
SEAL
$4.35¢2 175
1
#11
90480-01015-00
GROMMET
$6.18¢3 088
1
#12
90480-13016-00
GROMMET
$3.11¢1 556
1
#13
1TP-2162R-00-00
FENDER 2
$17.98¢8 988
1
#14
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#15
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#16
90387-07717-00
COLLAR
$7.34¢3 669
1
#17
1TP-21688-00-00
BRACKET, REAR STAY
$27.79¢13 894
1
#18
1TP-21639-00-00
DAMPER 2
$7.86¢3 931
1
#19
1TP-21613-00-00
STAY, FENDER 1
$347.64¢173 819
1
#20
1TP-21614-00-00
STAY, FENDER 2
$305.07¢152 538
1
#21
90111-08005-00
BOLT, HEX. SOCKET BUTTON
$4.65¢2 325
1
#22
90111-10006-00
BOLT, HEX. SOCKET BUTTON
$5.50¢2 750
1
#23
1TP-21643-00-00
STAY, REAR
$119.77¢59 887
1
#24
90111-08081-00
BOLT, HEX. SOCKET BUTTON
$4.49¢2 244
1
#25
90201-08066-00
WASHER, PLATE
$7.55¢3 775
1
#26
1D6-2153E-40-00
EMBLEM, YAMAHA
$12.42¢6 212
1
#27
90338-07010-00
PLUG
$5.56¢2 781
1
