TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

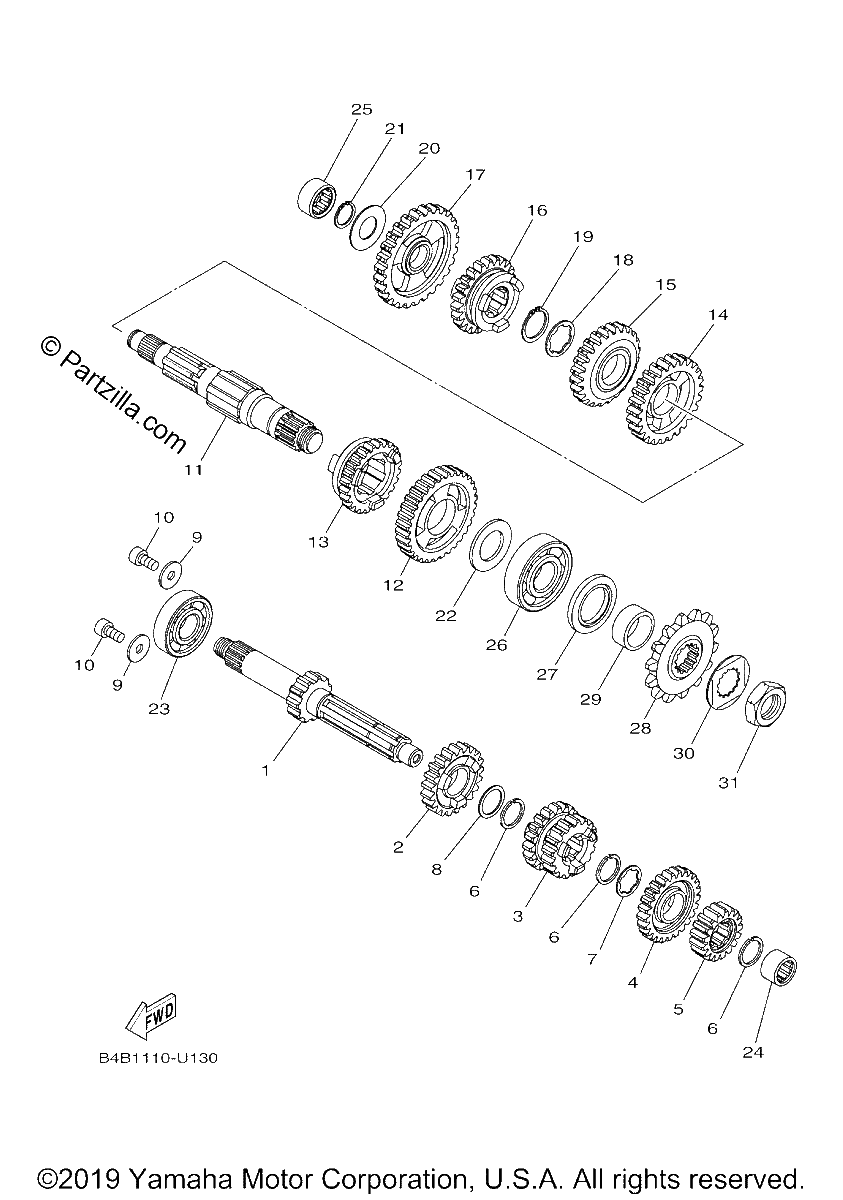

Diagrama de TRANSMISSION

Repuestos

#1
5PA-17411-00-00
AXLE, MAIN (11T)
$184.64¢92 322
1
#2
4ES-17151-10-00
GEAR, 5TH PINION (23T)
$83.17¢41 584
1
#3
4ES-17131-10-00
GEAR, 3RD PINION
$120.46¢60 231
1
#4
4ES-17161-10-00
GEAR, 6TH PINION (25T)
$82.83¢41 417
1
#5
4ES-17121-01-00
GEAR, 2ND PINION (17T)
$45.80¢22 902
1
#6
93440-17064-00
CIRCLIP
$6.99¢3 496
1
#7
90209-14008-00
WASHER
$4.80¢2 398
1
#8
90201-17545-00
WASHER, PLATE
$7.30¢3 651
1
#9
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$6.88¢3 439
1
#10
91317-06012-00
BOLT
$6.75¢3 375
1
#11
BR8-17421-00-00
Axle, Drive
$140.77¢70 386
1
#12
1SN-17221-00-00
GEAR, 2ND WHEEL (32T)
$83.95¢41 975
1
#13
5PA-17261-01-00
GEAR, 6TH WHEEL (25T)
$79.79¢39 893
1
#14
4ES-17231-20-00
GEAR, 3RD WHEEL (26T)
$51.31¢25 656
1
#15
5PA-17241-10-00
GEAR, 4TH WHEEL (replaces 5PA-17241-00-00)
$65.35¢32 677
1
#16
B4B-17251-00-00
GEAR, 5TH WHEEL
$50.23¢25 116
1
#17
BR8-17211-00-00
GEAR, 1ST WHEEL (27T)
$54.83¢27 416
1
#18
90209-16209-00
WASHER
$6.80¢3 398
1
#19
93410-20038-00
CIRCLIP
$2.86¢1 432
1
#20
164-17427-00-10
SHIM 1 (T=1.0) | UR
$6.00¢3 001
1
#20
90201-156F8-00
WASHER, PLATE (0.8T) | UR
$7.16¢3 582
1
#20
164-17427-00-06
SHIM 1 (T=0.6) | UR
$5.84¢2 921
1
#21
93440-15012-00
CIRCLIP
$6.75¢3 375
1
#22
90201-204K8-00
WASHER, PLATE
$7.99¢3 996
1
#23
93306-20310-00
BEARING
$35.65¢17 825
1
#24
93317-11245-00
BEARING
$32.28¢16 140
1
#25
93315-31502-00
BEARING
$34.79¢17 394
1
#26
93306-20461-00
BEARING
$37.65¢18 825
1
#27
93102-26042-00
OIL SEAL
$4.61¢2 306
1
#28
9382A-14227-00
SPROCKET, DRIVE (14T) | STD
$22.62¢11 310
1
#28
9382A-15228-00
SPROCKET, DRIVE (15T) | AP
$22.65¢11 327
1
#29
90387-202A0-00
COLLAR
$20.35¢10 177
1
#30
90215-20261-00
WASHER, LOCK
$7.24¢3 622
1
#31
90179-16016-00
Nut
$15.06¢7 532
1
