CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

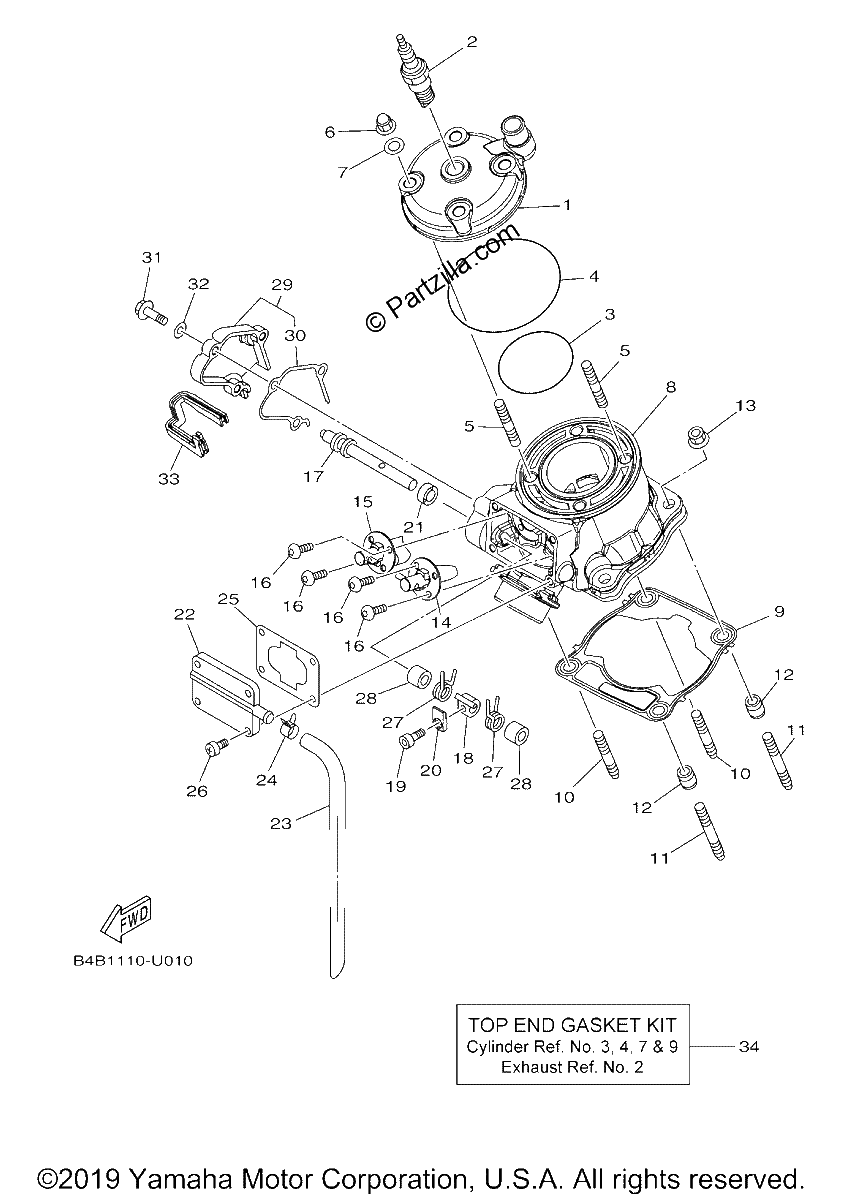

Diagrama de CYLINDER

Repuestos

#1
B4B-11111-00-00
HEAD, CYLINDER 1
$301.90¢150 949
1
#2
BR1-0EG00-00-00
BR10EG NGK SPLUG 4
$8.02¢4 008
1
#3
93210-56459-00
O-RING
$12.09¢6 043
1
#4
93210-84724-00
O-RING
$9.33¢4 663
1
#5
90116-08027-00
BOLT, STUD
$3.93¢1 967
1
#6
90176-08005-00
NUT, CROWN
$2.24¢1 121
1
#7
90201-080L8-00
WASHER, PLATE
$3.07¢1 535
1
#8
B4B-11311-00-00
CYLINDER 1
$933.79¢466 894
1
#9
B4B-11351-00-00
Gasket, Cylinder
$6.46¢3 231
1
#10
90116-08031-00
BOLT, stud
$9.12¢4 560
1
#11
90116-08028-00
BOLT, stud
$7.44¢3 720
1
#12
99590-10114-00
PIN, DOWEL
$4.83¢2 415
1
#13
90179-08019-00
Nut
$5.73¢2 864
1
#14
B4B-1131D-00-00
VALVE ASSY
$335.60¢167 802
1
#15
B4B-1132D-00-00
VALVE ASSY 2
$279.99¢139 995
1
#16
90149-05001-00
SCREW,PAN HEAD(1RW This item has been discontinued and may not be available. Contact us for more information.
$6.14¢3 070
1
#17
5HD-1131V-00-00
SHAFT 1
$80.04¢40 020
1
#18
4SS-11832-00-00
LEVER, LINK
$73.94¢36 973
1
#19
91317-04010-00
BOLT (replaces 91312-04010-00)
$7.57¢3 783
1
#20
5UN-11395-00-00
HOLDER
$49.59¢24 794
1
#21
93104-08040-00
OIL SEAL
$13.40¢6 699
1
#22
4SS-1131M-01-00
Cover
$83.95¢41 975
1
#23
4JY-11166-00-00
PIPE,BREATHER 1
$19.56¢9 781
1
#24
90467-14117-00
CLIP(MG5) (replaces 90467-13062-00)
$7.57¢3 783
1
#25
1C3-11354-00-00
Gasket
$4.81¢2 403
1
#26
98902-05016-00
SCREW, BIND
$1.35¢673
1
#27
90508-16134-00
Spring, Torsion
$5.43¢2 714
1
#28
90387-08785-00
Collar
$6.76¢3 381
1
#29
B4B-11991-00-00
HOUSING 1
$77.21¢38 606
1
#30
B4B-11993-00-00
Gasket
$5.34¢2 668
1
#31
97002-05020-00
BOLT
$2.71¢1 357
1
#32
92990-05600-00
WASHER, PLATE
$0.61¢305
1
#33
BR8-11995-00-00
SEAL, HOUSING
$13.74¢6 871
1
#34
B4B-W0001-00-00
Gasket Kit
$29.66¢14 829
1
