STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

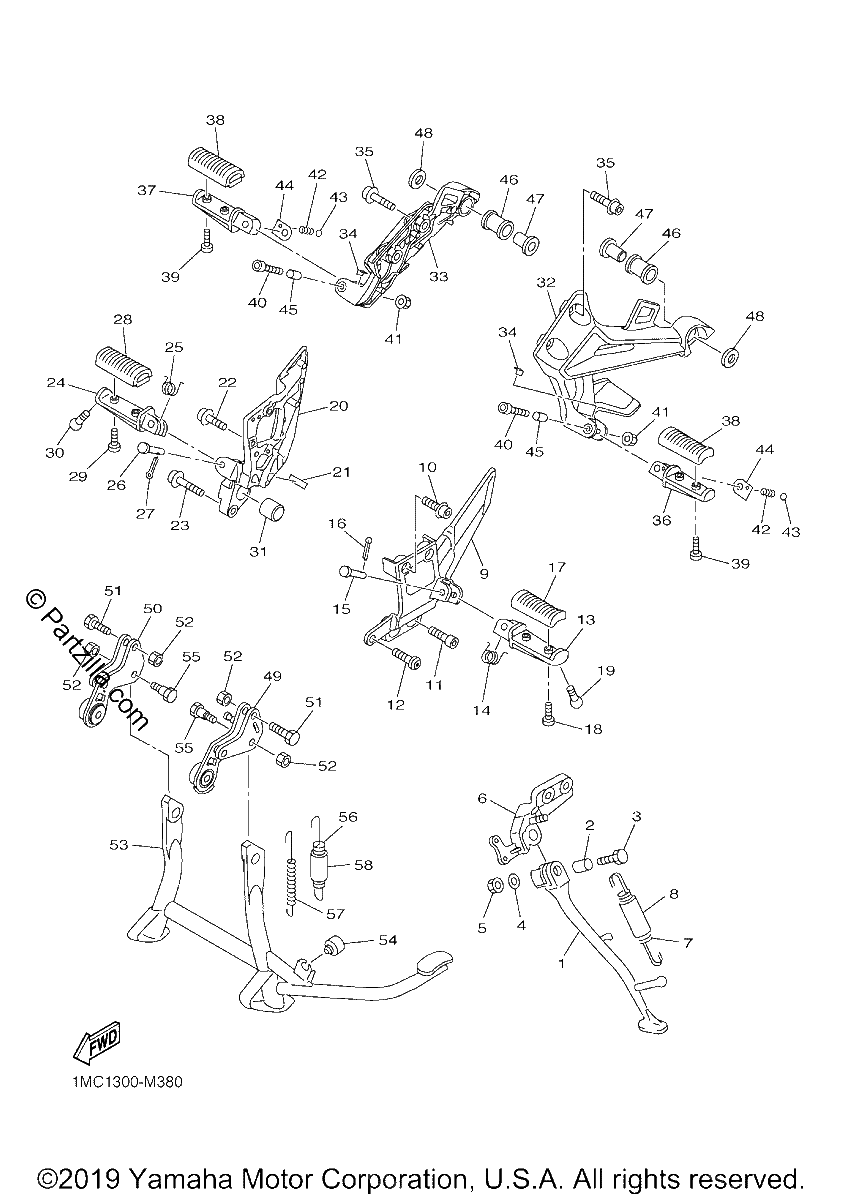

Diagrama de STAND FOOTREST

Repuestos

#1
5JW-27311-00-00
STAND, SIDE
$205.55¢102 776
1
#2
90387-10007-00
COLLAR
$13.10¢6 549
1
#3
90101-10025-00
bolt
$8.50¢4 249
1
#4
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.14¢1 570
1
#5
95617-10100-00
NUT, U
$6.76¢3 381
1
#6
3P6-27321-00-00
BRACKET, SIDE STAND
$259.23¢129 616
1
#7
90506-20008-00
SPRING, TENSION
$10.44¢5 221
1
#8
90445-197J2-00
HOSE (L60)
$4.30¢2 151
1
#9
1MC-27442-00-00
BRACKET 2
$142.77¢71 386
1
#10
90110-08097-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#11
90109-10058-00
BOLT
$6.92¢3 461
1
#12
90149-10001-00
SCREW
$7.52¢3 760
1
#13
4BH-27451-01-00
FOOTREST
$55.67¢27 836
1
#14
90508-183B9-00
SPRING, TORSION
$3.04¢1 518
1
#15
91701-08042-00
PIN
$3.39¢1 696
1
#16
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#17
4BP-27413-00-00
COVER, FOOTREST
$29.52¢14 760
1
#18
98507-05014-00
SCREW, PAN HEAD
$5.76¢2 881
1
#19
90109-08204-00
BOLT
$6.07¢3 036
1
#20
1MC-27443-00-00
BRACKET 3
$124.34¢62 169
1
#21
3TU-2178A-00-00
LABEL
$3.62¢1 811
1
#22
90110-08062-00
BOLT, HEXAGON SOCKET HEAD
$1.85¢926
1
#23
90110-08107-00
BOLT, HEXAGON SOCKET HEAD
$2.68¢1 340
1
#24
4BH-27461-01-00
FOOTREST
$55.48¢27 738
1
#25
90508-184B0-00
SPRING, TORSION
$2.74¢1 368
1
#26
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#27
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#28
4BP-27413-00-00
COVER, FOOTREST
$29.52¢14 760
1
#29
98507-05014-00
SCREW, PAN HEAD
$5.76¢2 881
1
#30
90109-08204-00
BOLT
$6.07¢3 036
1
#31
90380-20213-00
BUSH, SOLID
$28.81¢14 404
1
#32
1MC-2741L-00-00
BRACKET 4
$132.73¢66 367
1
#33
1MC-2742L-00-00
BRACKET 5
$150.35¢75 176
1
#34
5JW-23844-00-00
SEAL
$8.26¢4 129
1
#35
90110-08062-00
BOLT, HEXAGON SOCKET HEAD
$1.85¢926
1
#36
5LV-27431-01-00
FOOTREST, REAR 1
$36.25¢18 124
1
#37
5LV-27441-01-00
FOOTREST, REAR 2
$36.25¢18 124
1
#38
4BP-27413-00-00
COVER, FOOTREST
$29.52¢14 760
1
#39
98507-05014-00
SCREW, PAN HEAD
$5.76¢2 881
1
#40
91312-06040-00
BOLT
$6.92¢3 461
1
#41
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#42
90501-15001-00
SPRING, COMPRESSION
$1.78¢891
1
#43
93501-04011-00
BALL
$6.87¢3 433
1
#44
5JJ-27437-01-00
WASHER, special
$6.46¢3 231
1
#45
90387-06014-00
COLLAR
$4.23¢2 116
1
#46
36Y-27424-01-00
DAMPER, FOOTREST 2
$17.19¢8 596
1
#47
90387-10048-00
COLLAR
$12.79¢6 394
1
#48
90201-10669-00
WASHER, PLATE
$6.87¢3 433
1
#49
1MC-27151-00-00
BRACKET, MAIN STAND
$103.60¢51 802
1
#50
1MC-27152-00-00
BRACKET, MAIN STAND 2
$78.27¢39 134
1
#51
90101-10004-00
BOLT
$2.40¢1 202
1
#52
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#53
5P5-27111-10-00
STAND, MAIN
$253.02¢126 512
1
#54
116-27114-00-00
STOPPER, MAIN STAND
$11.36¢5 681
1
#55
90109-10029-00
BOLT
$9.12¢4 560
1
#56
90506-40001-00
SPRING, TENSION
$26.93¢13 467
1
#57
90506-23001-00
SPRING, TENSION
$12.74¢6 371
1
#58
90445-170K9-00
HOSE (L60)
$7.27¢3 634
1
