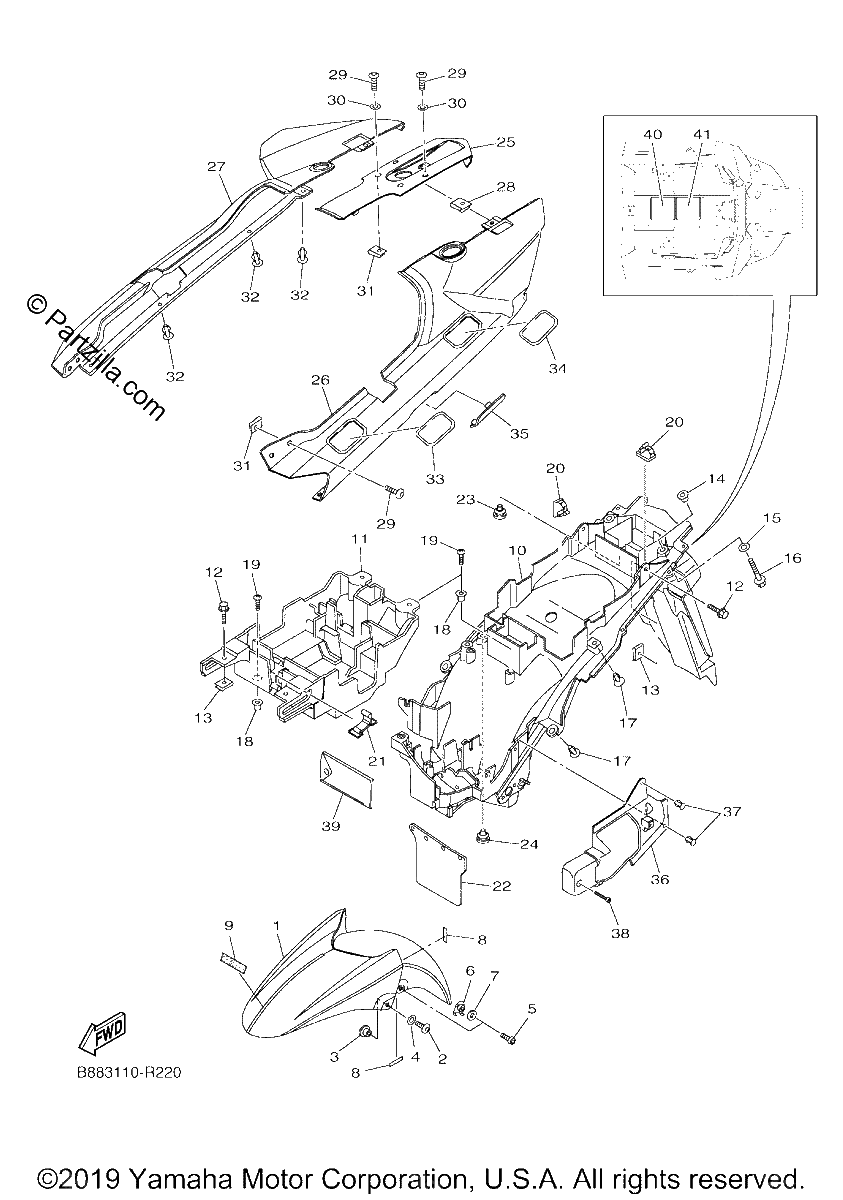

FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FENDER, FRONT
$121.74¢60 869
#2
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#3
COLLAR
$7.11¢3 553
#4
WASHER, PLATE
$2.02¢1 012
#5
BOLT, BUTTON HEAD
$6.88¢3 439
#6
NUT 1
$22.06¢11 029
#7
DAMPER 1
$6.51¢3 254
#8
DAMPER
$5.93¢2 967
#9
EMBLEM, YAMAHA
$4.91¢2 455
#10
FENDER, REAR
$167.80¢83 898
#11
BOX
$144.84¢72 421
#12
BOLT, WITH WASHER
$6.88¢3 439
#13
NUT, SPRING
$7.11¢3 553
#14
COLLAR
$4.97¢2 484
#15
WASHER, PLATE
$7.77¢3 887
#16
BOLT,FLANGE (replaces 95812-06040-00)
$4.98¢2 490
#17
RIVET
$6.23¢3 117
#18
PLUG
$1.78¢891
#19
SCREW, TAPPING
$0.38¢190
#20
CLAMP
$4.22¢2 110
#21
BAND
$8.28¢4 140
#22
FLAP
$22.18¢11 092
#23
GROMMET
No Disponible
#24
GROMMET
No Disponible
#25
COVER, REAR FENDER
$205.72¢102 862
#26
COVER, TAIL 1
$164.73¢82 363
#27
COVER, TAIL 2
$240.00¢120 002
#28
NUT, SPRING
$2.92¢1 461
#29
BOLT, HEX. SOCKET BUTTON
$7.11¢3 553
#30
WASHER, PLATE
$7.05¢3 525
#31
NUT, SPRING
$4.88¢2 438
#32
RIVET
$6.23¢3 117
#33
COVER, REAR FENDER
$36.12¢18 061
#34
COVER, REAR FENDER
$36.12¢18 061
#35
COVER, REAR FENDER
$35.89¢17 946
#36
COVER, REAR FENDER 1
$14.55¢7 274
#37
RIVET
$6.23¢3 117
#38
SCREW, TAPPING
$2.23¢1 116
#39
TOOL KIT
$17.01¢8 504
#40
PLATE, ROUTING | FOR CALIFORNIA
$9.37¢4 686
#41
PLATE, ROUTING 2 | FOR CALIFORNIA
$9.91¢4 956
