WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

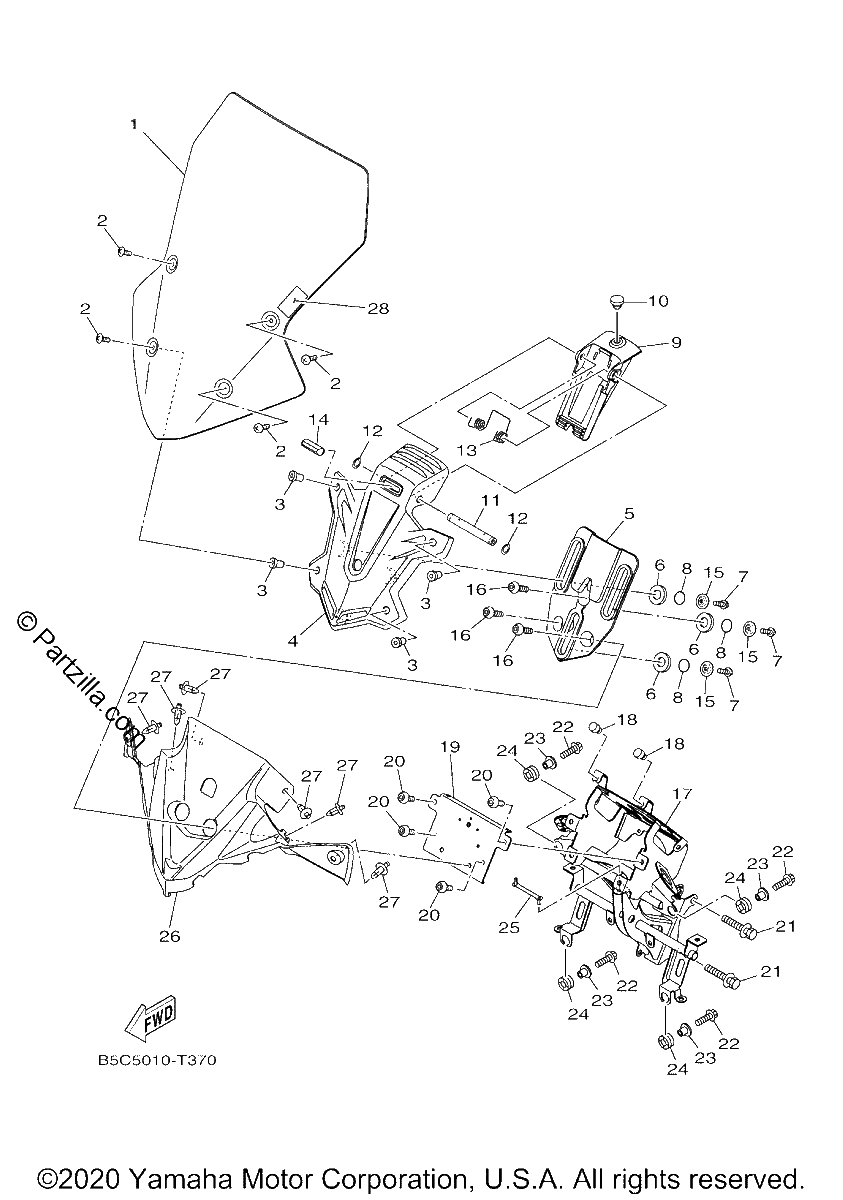

Diagrama de WINDSHIELD

Repuestos

#1
B5C-28381-00-00
Windshield
$443.82¢221 913
1
#2
90150-05024-00
SCREW, ROUND HEAD
$3.40¢1 700
1
#3
90179-05003-00
NUT
$5.84¢2 919
1
#4
B5C-2831R-00-00
STAY, MAIN 1
$99.40¢49 700
1
#5
B5C-2831T-00-00
STAY, SUPPORT 1
$53.96¢26 981
1
#6
B5C-28319-00-00
WASHER
$4.00¢2 000
1
#7
92017-05016-00
bolt
$6.40¢3 200
1
#8
93210-14MF4-00
O-Ring
$7.21¢3 606
1
#9
B5C-2836X-00-00
KNOB, 1
$24.96¢12 481
1
#10
90338-07010-00
PLUG
$5.56¢2 781
1
#11
B5C-2835B-00-00
SHAFT, 1
$35.69¢17 844
1
#12
99009-09800-00
Circlip
$0.59¢294
1
#13
B5C-28388-00-00
SPRING
$5.40¢2 700
1
#14
B5C-2836T-00-00
DAMPER, locating 1
$6.04¢3 019
1
#15
B5C-28373-00-00
Collar
$16.90¢8 450
1
#16
90111-06029-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#17
B5C-28356-00-00
STAY 1
$168.34¢84 169
1
#18
90338-06007-00
PLUG
$9.91¢4 956
1
#19
B5C-28361-00-00
PLATE, FRONT
$26.18¢13 088
1
#20
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#21
90119-08062-00
BOLT, WITH WASHER
$6.94¢3 469
1
#22
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
1
#23
90387-07391-00
COLLAR
$9.22¢4 613
1
#24
3C3-83513-00-00
Damper
$7.65¢3 825
1
#25
90464-09026-00
CLAMP
$4.81¢2 406
1
#26
B5C-2836M-00-00
PANEL, INNER 3
$23.56¢11 781
1
#27
90269-07007-00
RIVET
$4.00¢2 000
1
#28
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
1
