REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

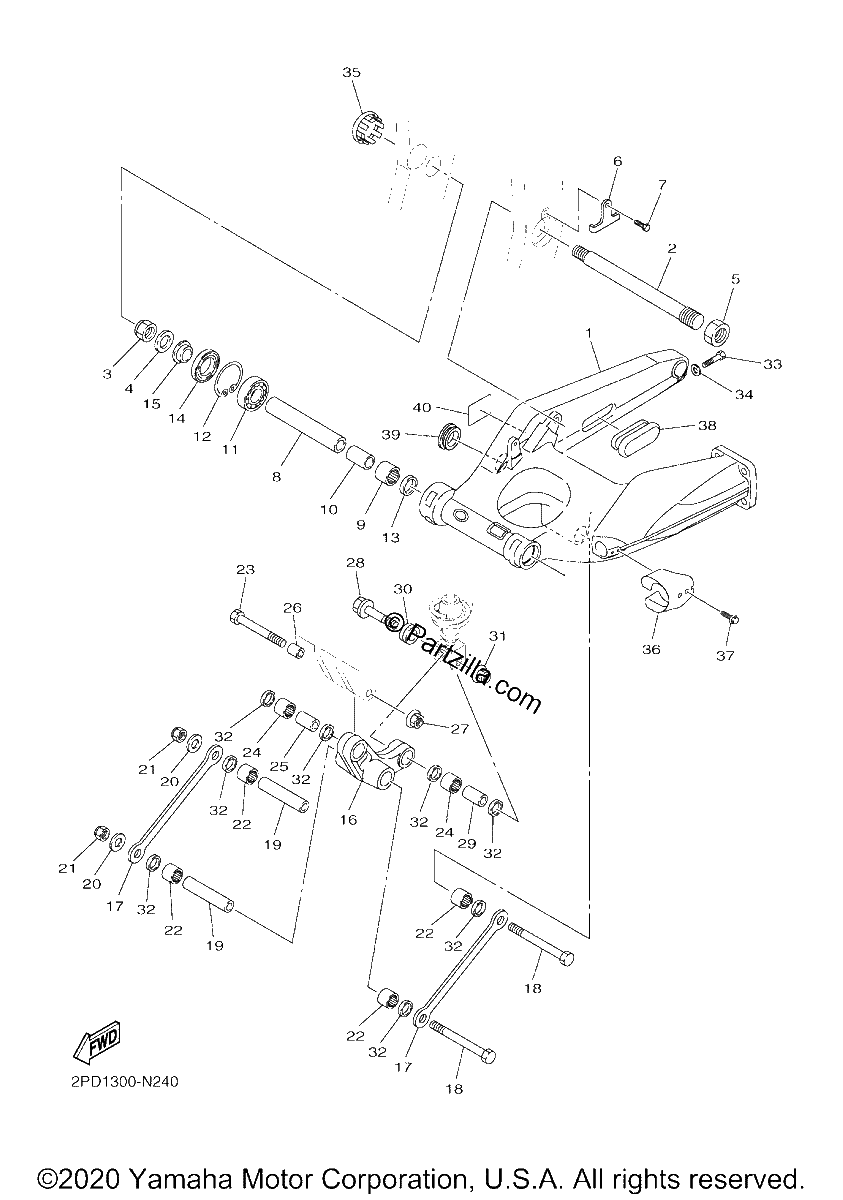

Diagrama de REAR ARM

Repuestos

#1
3P6-22110-21-00
REAR ARM COMP.
$999.34¢499 669
1
#2
5JW-22141-00-00
SHAFT, PIVOT
$81.21¢40 607
1
#3
90185-18009-00
NUT, SELF-LOCKING
$17.39¢8 694
1
#4
90201-18020-00
WASHER, PLATE
$2.68¢1 340
1
#5
90170-28011-00
NUT
$14.48¢7 239
1
#6
5JW-22128-00-00
COVER, THRUST 1
$4.51¢2 254
1
#7
97017-06010-00
BOLT
$2.86¢1 432
1
#8
90387-20011-00
COLLAR
$25.00¢12 500
1
#9
93317-42592-00
BEARING
$53.03¢26 513
1
#10
5JW-25383-00-00
COLLAR, WHEEL
$38.67¢19 337
1
#11
93306-30446-00
BEARING
$69.61¢34 805
1
#12
99009-52500-00
CIRCLIP
$11.76¢5 882
1
#13
93102-25270-00
OIL SEAL
$13.01¢6 503
1
#14
93102-28023-00
OIL SEAL
$16.09¢8 044
1
#15
90387-207V6-00
COLLAR
$14.06¢7 032
1
#16
1MD-2217A-00-00
ARM, RELAY
$300.05¢150 023
1
#17
1MD-2217M-00-00
ARM 1
$40.51¢20 257
1
#18
90101-10658-00
BOLT
$11.73¢5 865
1
#19
90387-122R5-00
COLLAR
$19.86¢9 930
1
#20
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#21
95617-10100-00
NUT, U
$6.76¢3 381
1
#22
93317-31771-00
BEARING
$34.84¢17 423
1
#23
90101-10011-00
BOLT
$10.99¢5 497
1
#24
93315-31759-00
BEARING
$36.70¢18 348
1
#25
90387-10104-00
COLLAR
$42.07¢21 033
1
#26
90387-10009-00
COLLAR
$7.92¢3 962
1
#27
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#28
90105-10378-00
BOLT, FLANGE
$13.39¢6 693
1
#29
90387-10104-00
COLLAR
$42.07¢21 033
1
#30
90387-10105-00
COLLAR
$32.95¢16 474
1
#31
95607-10200-00
NUT,SELF-LOCKING
$3.65¢1 823
1
#32
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#33
97012-08040-00
BOLT
$5.76¢2 881
1
#34
92990-08600-00
WASHER, PLATE
$2.54¢1 271
1
#35
B88-2219X-00-00
Cover
$11.09¢5 543
1
#36
5JW-2217H-00-00
COVER, DUST
$22.48¢11 241
1
#37
90119-05062-00
BOLT, WITH WASHER
$6.14¢3 070
1
#38
5JW-2219X-00-00
COVER
$13.22¢6 613
1
#39
90338-30267-00
PLUG
$4.69¢2 346
1
#40
5VY-21668-00-00
LABEL, TIRE
$7.31¢3 657
1
