REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

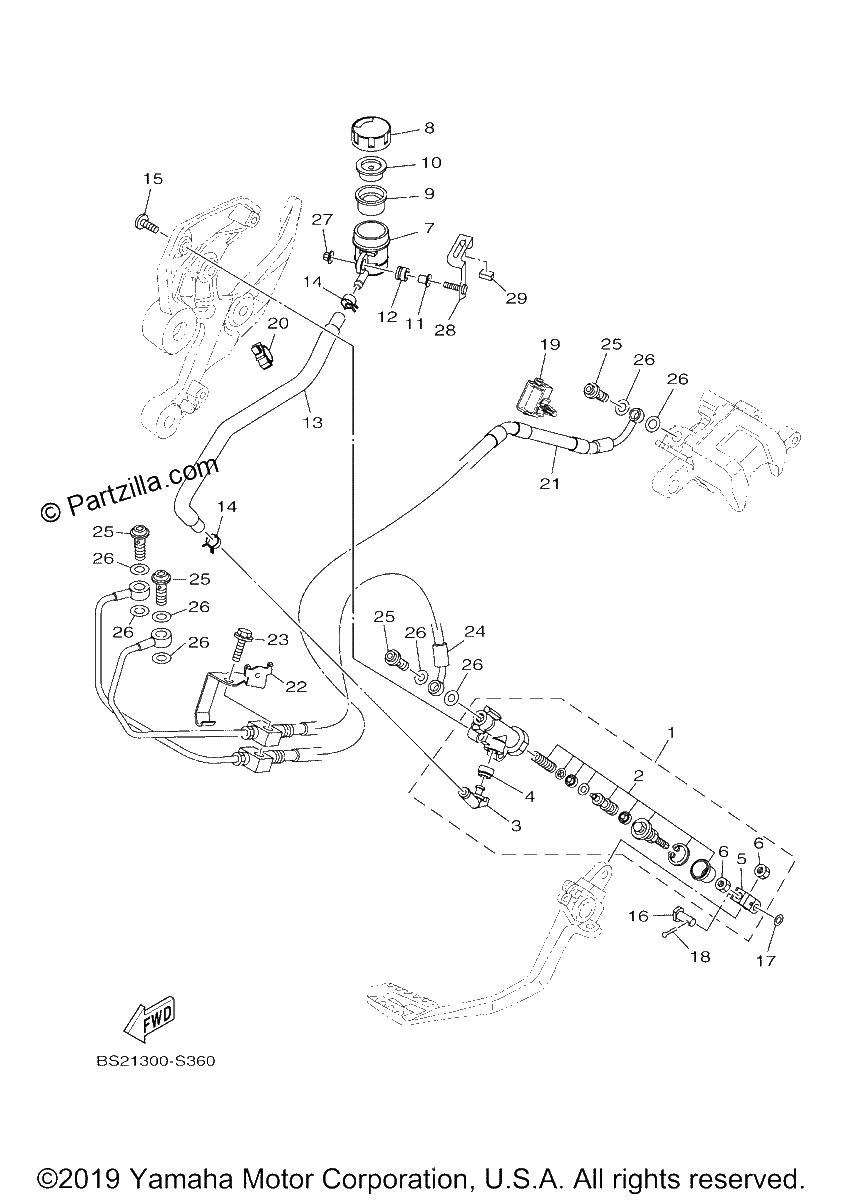

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
56P-2583V-00-00
REAR MASTER CYLINDER ASSY.
$160.45¢80 225
1
#2
56P-25808-50-00
CYLINDER KIT, MASTER
$100.86¢50 431
1
#3
2D1-2582A-00-00
JOINT
$121.80¢60 900
1
#4
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#5
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#6
90170-08010-00
NUT
$7.49¢3 744
1
#7
14B-25894-00-00
TANK, RESERVOIR
$66.19¢33 094
1
#8
2C0-25852-00-00
CAP, RESERVOIR
$6.84¢3 419
1
#9
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$23.38¢11 688
1
#10
2VN-25855-00-00
BUSH,DIAPHRAGM
$11.34¢5 669
1
#11
90387-05028-00
COLLAR
$6.95¢3 475
1
#12
2C0-26326-00-00
GROMMET
$6.42¢3 213
1
#13
1RC-25895-00-00
HOSE, RESERVOIR
$25.04¢12 519
1
#14
90467-120A3-00
CLIP
$6.99¢3 494
1
#15
90111-08038-00
BOLT, HEX. SOCKET BUTTON
$10.86¢5 431
1
#16
90240-08005-00
PIN, CLEVIS
$7.34¢3 669
1
#17
90201-08066-00
WASHER, PLATE
$7.55¢3 775
1
#18
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#19
90464-20023-00
CLAMP
$3.89¢1 944
1
#20
90464-18007-00
CLAMP
$3.57¢1 787
1
#21
2DR-2581K-00-00
HOSE, BRAKE 5
$166.90¢83 450
1
#22
2DR-85142-00-00
BRACKET, REFLECTOR 2
$16.25¢8 125
1
#23
90105-06192-00
BOLT, FLANGE
$5.51¢2 756
1
#24
2DR-2581J-00-00
HOSE, BRAKE 4
$116.99¢58 494
1
#25
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#26
90430-10005-00
GASKET
$8.39¢4 194
1
#27
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#28
1RC-2582E-00-00
HOLDER, RESERVE TANK
$7.86¢3 931
1
#29
90520-02005-00
DAMPER, PLATE
$6.47¢3 238
1
