ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

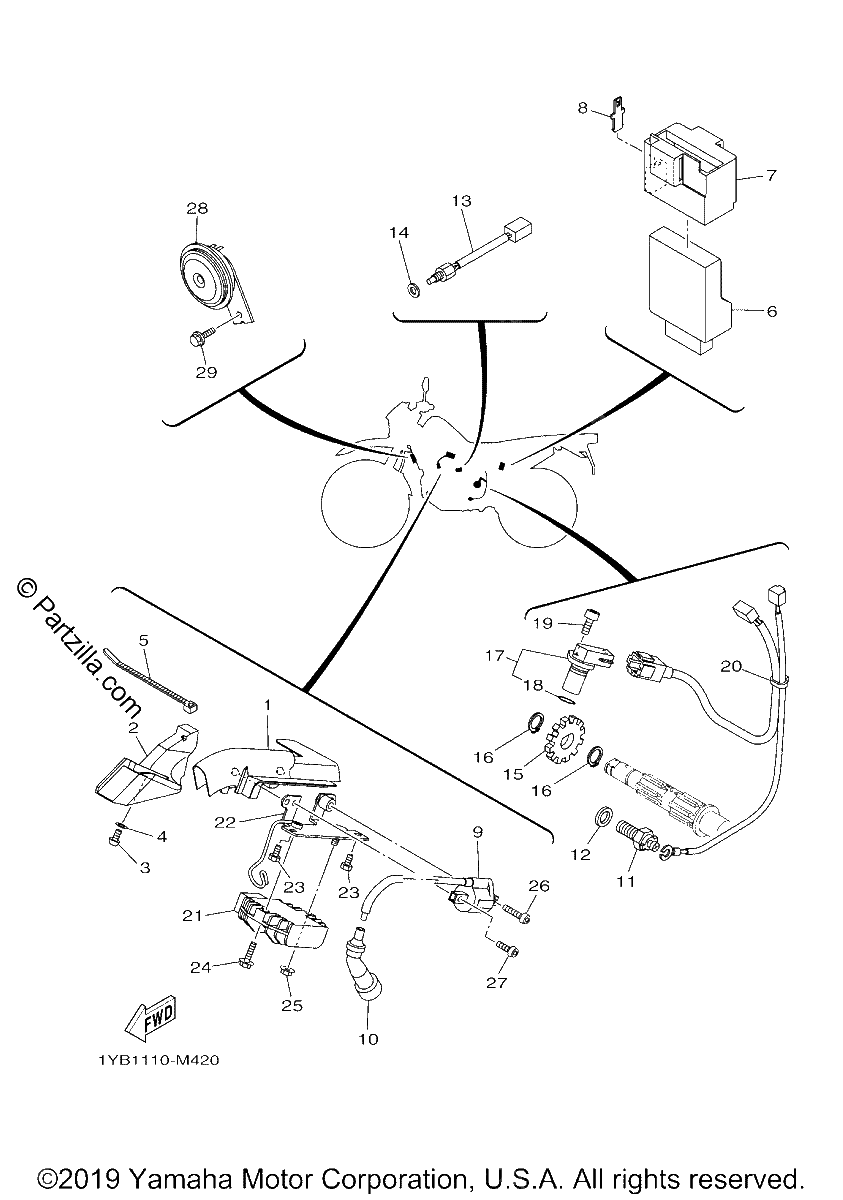

Diagrama de ELECTRICAL 2

Repuestos

#1
5XT-2117N-00-00
COVER 3
$50.32¢25 162
1
#2
5XT-2117R-00-00
COVER 4
$29.38¢14 688
1
#3
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#4
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$7.48¢3 738
1
#5
1UA-82591-00-00
BAND
$4.91¢2 456
1
#6
1YB-8591A-00-00
ENGINE CONTROL UNIT
$432.09¢216 044
1
#7
5XT-85546-10-00
BAND
$18.57¢9 288
1
#8
5XT-82171-00-00
STAY, FUSE BOX
$14.78¢7 388
1
#9
1S4-82310-01-00
IGNITION COIL ASSY (replaces 1S4-82310-00-00)
$53.90¢26 950
1
#10
5VK-82370-00-00
PLUG CAP ASSY
$70.10¢35 050
1
#11
4KM-82540-00-00
NEUTRAL SWITCH ASSY
$39.93¢19 963
1
#12
90430-10148-00
Gasket
$5.66¢2 831
1
#13
5XT-83591-00-00
THERMO UNIT
$84.64¢42 319
1
#14
90430-08204-00
Gasket
$7.79¢3 894
1
#15
3C5-8354W-00-00
ROTOR This item has been discontinued and may not be available. Contact us for more information.
$109.04¢54 519
1
#16
99009-17400-00
Circlip
$4.65¢2 325
1
#17
1S4-83755-01-00
SENSOR, SPEED
$121.58¢60 788
1
#18
1S4-81168-00-00
O-Ring
$6.91¢3 456
1
#19
91312-06014-00
bolt
$5.65¢2 825
1
#20
3C5-82309-00-00
WIRE, SUB LEAD This item has been discontinued and may not be available. Contact us for more information.
$47.21¢23 606
1
#21
5GT-81960-00-00
RECTIFIER/REG. ASSY
$267.64¢133 819
1
#22
5XT-21359-10-00
BRACKET, COIL
$37.71¢18 856
1
#22
1YB-21359-00-00
BRACKET, COIL
$49.77¢24 888
1
#23
97012-06010-00
bolt
$0.56¢281
1
#24
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
1
#25
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#26
92012-06025-00
BOLT, BUTTON HEAD
$3.44¢1 719
1
#27
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#28
3C5-83371-00-00
HORN
$60.34¢30 169
1
#29
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
