COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

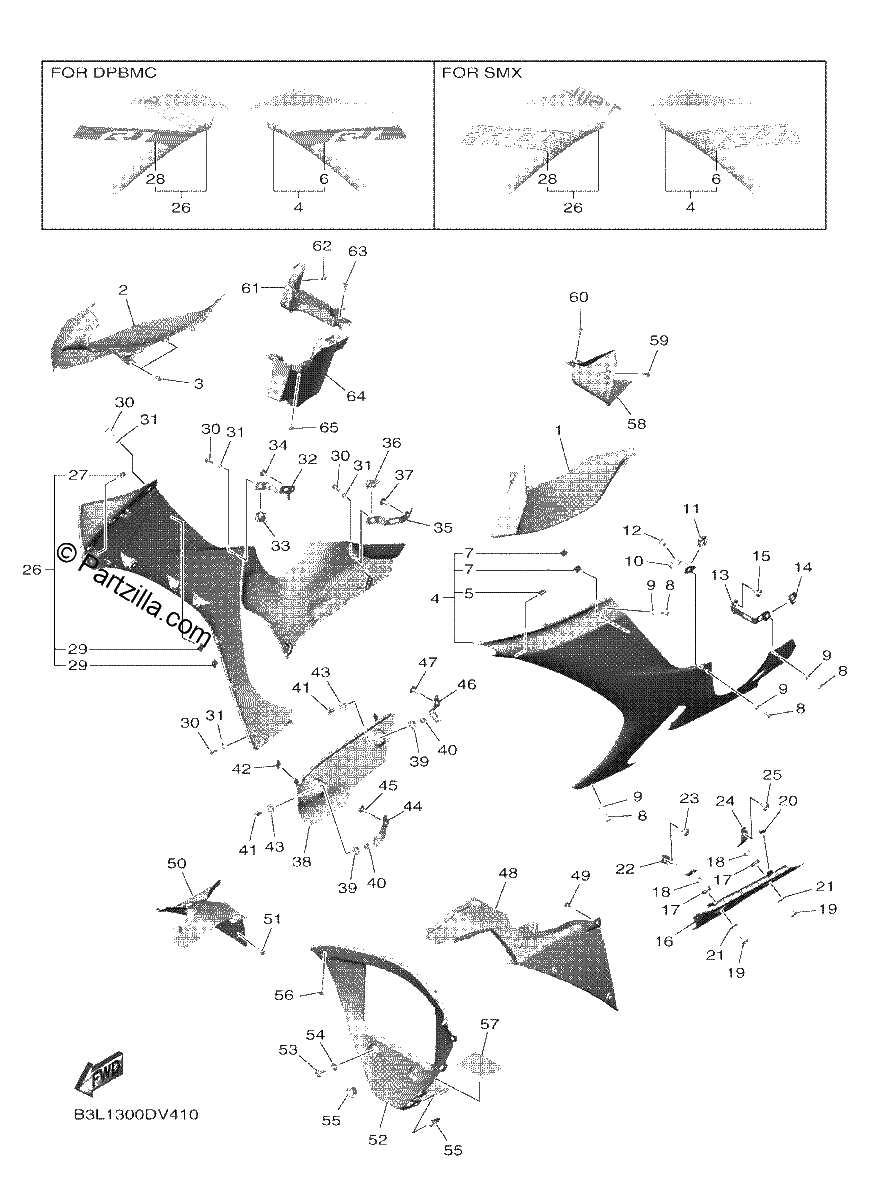

Diagrama de COWLING 2

Repuestos

#1
B3L-2842A-00-P0
COVER 5
$140.53¢70 265
1
#2
B3L-2843C-00-P0
COVER 6
$123.54¢61 772
1
#3
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#4
B3L-Y283U-00-P0
PANEL ASSEMBLY 1
$475.93¢237 964
1
#5
90464-07018-00
Clamp
$0.67¢333
1
#6
B3L-28391-00-00
GRAPHIC 1
$26.76¢13 380
1
#7
B3L-24595-00-00
Protector
$1.61¢805
1
#8
2CR-28386-00-00
HEAD
$13.48¢6 739
1
#9
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#10
B3L-2833K-00-00
BRACKET 13
$5.62¢2 812
1
#11
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#12
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#13
B3L-2833L-00-00
BRACKET 14
$10.90¢5 451
1
#14
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#15
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#16
B3L-2834V-00-00
PROTECTOR 1
$201.22¢100 608
1
#17
90480-14477-00
GROMMET
$3.53¢1 765
1
#18
90387-06307-00
COLLAR
$4.38¢2 191
1
#19
90149-06302-00
SCREW
$4.70¢2 352
1
#20
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#21
90201-06063-00
WASHER, PLATE
$6.89¢3 444
1
#22
B3L-2833R-00-00
BRKT., 17
$15.02¢7 510
1
#23
90111-06182-00
BOLT,HEX. SOCKET BUTTON
$6.88¢3 439
1
#24
B3L-2833T-00-00
BRKT.,18
$13.28¢6 641
1
#25
90111-06182-00
BOLT,HEX. SOCKET BUTTON
$6.88¢3 439
1
#26
B3L-Y283V-00-P0
PANEL ASSEMBLY 2
$475.93¢237 964
1
#27
90464-07018-00
Clamp
$0.67¢333
1
#28
B3L-28392-00-00
GRAPHIC 2
$22.36¢11 178
1
#29
B3L-24595-00-00
Protector
$1.61¢805
1
#30
2CR-28386-00-00
HEAD
$13.48¢6 739
1
#31
8HG-21757-00-00
WASHER, SPECIAL 1
$0.98¢489
1
#32
B3L-2833M-00-00
BRACKET 15
$7.11¢3 553
1
#33
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#34
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#35
B3L-2833N-00-00
BRACKET 16
$9.51¢4 755
1
#36
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#37
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#38
B3L-2834W-00-00
PROTECTOR 2
$195.60¢97 802
1
#39
90480-14477-00
GROMMET
$3.53¢1 765
1
#40
90387-06307-00
COLLAR
$4.38¢2 191
1
#41
90149-06302-00
SCREW
$4.70¢2 352
1
#42
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.04¢3 519
1
#43
90201-06063-00
WASHER, PLATE
$6.89¢3 444
1
#44
B3L-2833U-00-00
BRKT.,19
$9.61¢4 807
1
#45
90111-06182-00
BOLT,HEX. SOCKET BUTTON
$6.88¢3 439
1
#46
B3L-2833V-00-00
BRKT.,20
$8.29¢4 146
1
#47
90111-06182-00
BOLT,HEX. SOCKET BUTTON
$6.88¢3 439
1
#48
B3L-2836K-00-00
PANEL, INNER 1
$28.24¢14 122
1
#49
90269-06008-00
RIVET
$8.10¢4 048
1
#50
B3L-2836L-00-00
PANEL, INNER 2
$26.35¢13 173
1
#51
90269-06008-00
RIVET
$8.10¢4 048
1
#52
B3L-2836M-00-00
PANEL, INNER 3
$39.10¢19 550
1
#53
90149-06302-00
SCREW
$4.70¢2 352
1
#54
90387-06309-00
COLLAR
$6.80¢3 398
1
#55
2CR-2177L-00-00
PLATE, SPRING
$5.26¢2 628
1
#56
90269-06008-00
RIVET
$8.10¢4 048
1
#57
B3L-23472-00-00
Protector
$6.19¢3 093
1
#58
B3L-2837L-00-00
PANEL, console 1
$18.26¢9 131
1
#59
90109-05018-00
bolt
$2.40¢1 202
1
#60
90269-06008-00
RIVET
$8.10¢4 048
1
#61
B3L-2837M-00-00
PANEL, CONSOLE 2
$21.55¢10 775
1
#62
90109-05018-00
bolt
$2.40¢1 202
1
#63
90269-06008-00
RIVET
$8.10¢4 048
1
#64
B3L-2838K-00-00
BOX 1
$12.45¢6 227
1
#65
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
