EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

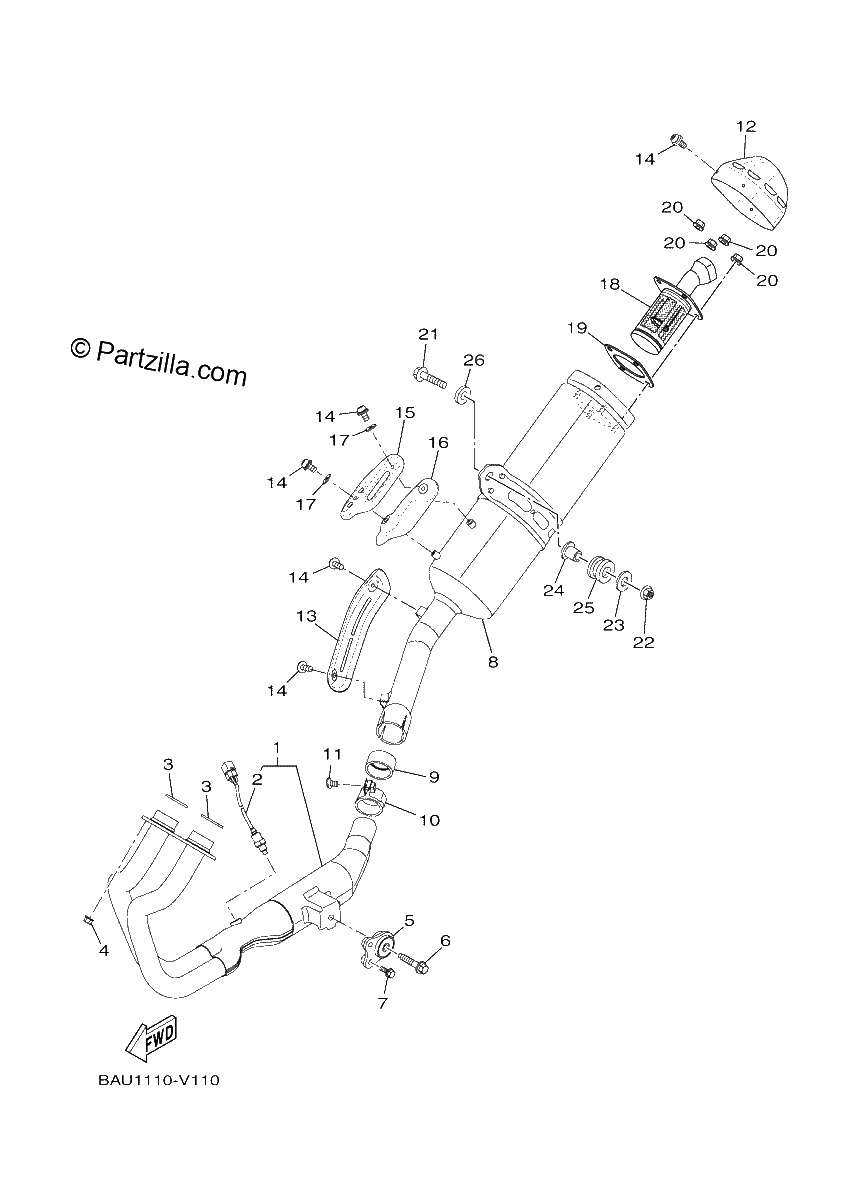

Diagrama de EXHAUST

Repuestos

#1
BAU-14610-01-00
EXHAUST PIPE ASSY 1
$1151.24¢575 619
1
#2
BW3-8592A-10-00
. .SENSOR, OXYGEN
$299.26¢149 631
1
#3
3YF-14613-01-00
GASKET,EXST PIPE
$13.81¢6 906
1
#4
90179-08410-00
NUT
$5.99¢2 994
1
#5
BW3-21445-00-00
STAY, MUFFLER 1
$60.10¢30 050
1
#6
90105-08164-00
Bolt, Flange
$7.48¢3 738
1
#7
95814-06020-00
BOLT, FLANGE
$7.94¢3 969
1
#8
BAU-14711-00-00
MUFFLER 1
$711.24¢355 619
1
#9
B71-14755-00-00
GASKET, SILENCER
$15.94¢7 969
1
#10
5S7-14715-00-00
BAND, MUFFLER
$57.98¢28 988
1
#11
91314-08040-00
BOLT (3JP)
$6.25¢3 125
1
#12
BW3-E4799-00-00
CAP
$115.06¢57 531
1
#13
BW3-E471C-00-00
PROTECTOR ASSY 1
$98.35¢49 175
1
#14
90111-06060-00
BOLT HEX. SOCKET BUTTON
$4.59¢2 294
1
#15
BW3-E472C-00-00
PROTECTOR ASSY., 2
$100.26¢50 131
1
#16
BW3-E4738-00-00
PROTECTOR, MUFFLER 3
$99.81¢49 906
1
#17
4BD-14766-00-00
WASHER,PROTECTER (replaces 4BD-E4766-00-00)
$6.54¢3 269
1
#18
BAU-14780-00-00
SPARK ARRESTER ASSY
$247.16¢123 581
1
#19
BAU-14755-00-00
GASKET, SILENCER
$24.35¢12 175
1
#20
95780-06500-00
NUT, FLANGE
$2.35¢1 175
1
#21
90111-10007-00
BOLT, HEX. SOCKET BUTTON
$6.50¢3 250
1
#22
95604-10200-00
NUT, SELF-LOCKING
$9.51¢4 756
1
#23
90201-10043-00
WASHER, plate
$2.23¢1 113
1
#24
90387-10636-00
COLLAR
$13.93¢6 963
1
#25
36Y-27424-01-00
DAMPER, FOOTREST 2
$18.69¢9 344
1
#26
BW3-14779-00-00
COLLAR
$25.11¢12 556
1
