FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

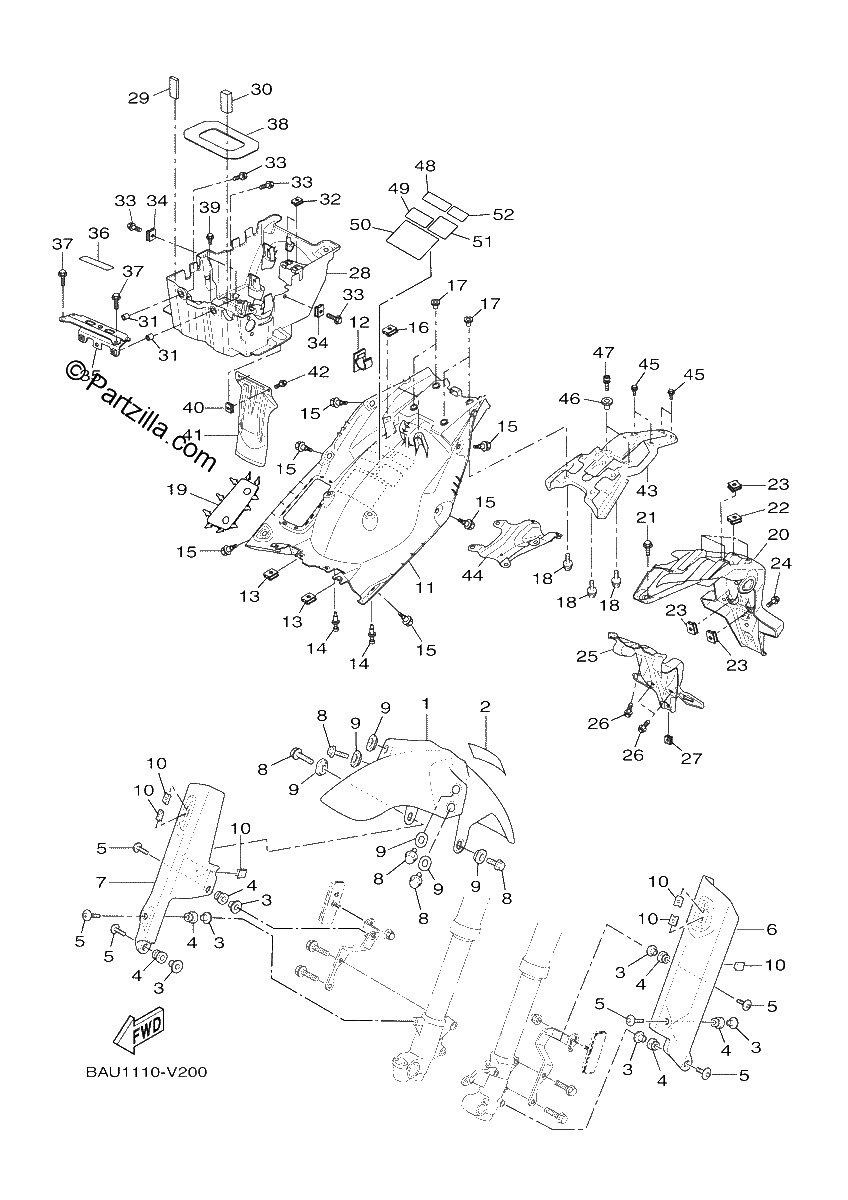

Diagrama de FENDER

Repuestos

#1
BAU-21511-00-P0
FENDER, FRONT
$338.46¢169 228
1
#2
BAU-2414G-00-00
SEAL
$4.62¢2 311
1
#3
90387-06265-00
COLLAR
$8.79¢4 393
1
#4
90480-12072-00
GROMMET
$7.30¢3 651
1
#5
90111-06155-00
BOLT, HEX. SOCKET BUTTON
$1.91¢954
1
#6
BW3-F315H-00-00
PROTECTOR 1
$44.37¢22 184
1
#7
BW3-F315J-00-00
PROTECTOR 2
$44.37¢22 184
1
#8
90105-06170-00
BOLT, FLANGE
$4.65¢2 323
1
#9
17D-21749-00-00
Collar
$15.65¢7 826
1
#10
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#11
BW3-F1629-00-00
GUARD, MUD
$81.35¢40 675
1
#12
90464-13185-00
CLAMP
$4.22¢2 110
1
#13
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#14
90269-08010-00
RIVET
$2.96¢1 478
1
#15
90149-05042-00
SCREW
$3.06¢1 529
1
#16
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#17
90387-08073-00
COLLAR
$8.71¢4 353
1
#18
90119-06179-00
BOLT, WITH WASHER
$7.30¢3 651
1
#19
BW3-F1669-00-00
SEAL
$11.63¢5 813
1
#20
BW3-F1685-00-00
BRACKET, LICENSE
$67.15¢33 574
1
#21
90149-05042-00
SCREW
$3.06¢1 529
1
#22
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#23
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#24
90149-05042-00
SCREW
$3.06¢1 529
1
#25
BW3-F163A-00-00
COVER, REAR FENDER 1
$57.37¢28 687
1
#26
90149-05042-00
SCREW
$3.06¢1 529
1
#27
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#28
BW3-H212B-00-00
BOX, BATTERY 1
$133.97¢66 988
1
#29
90520-06X02-00
DAMPER, PLATE
$1.09¢546
1
#30
90520-10X06-00
DAMPER, PLATE
$1.09¢546
1
#31
90387-07015-00
Collar
$1.09¢546
1
#32
90183-04039-00
NUT, SPRING
$6.46¢3 231
1
#33
90105-06080-00
BOLT, FLANGE
$5.97¢2 984
1
#34
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#35
BW3-21617-20-00
BRACKET, FENDER
$32.06¢16 031
1
#36
3HA-24141-00-00
PROTECTOR, FUEL TANK
$12.62¢6 308
1
#37
95827-06012-00
BOLT, FLANGE
$1.64¢822
1
#38
BW3-21639-00-00
DAMPER 2
$8.28¢4 140
1
#39
90149-05042-00
SCREW
$3.06¢1 529
1
#40
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#41
BW3-F1642-00-00
GUARD, FLAP
$46.55¢23 276
1
#42
90149-05045-00
SCREW
$4.81¢2 403
1
#43
BW3-F1613-00-00
STAY, FENDER 1
$70.69¢35 345
1
#44
BW3-21671-00-00
REINF., REAR FENDER
$38.58¢19 291
1
#45
90149-05042-00
SCREW
$3.06¢1 529
1
#46
90387-06X68-00
COLLAR
$10.26¢5 129
1
#47
90110-06340-00
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 455
1
#48
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
#49
BAU-21668-00-00
LABEL, TIRE
$2.74¢1 368
1
#50
BAU-2815P-00-00
LABEL, NOTICE 1
$10.58¢5 290
1
#51
4B5-21686-00-00
PLATE, ROUTING 2 | FOR CAL
$6.12¢3 059
1
#52
3SA-24877-A0-00
LABEL, CAUTION
No Disponible
1
