FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

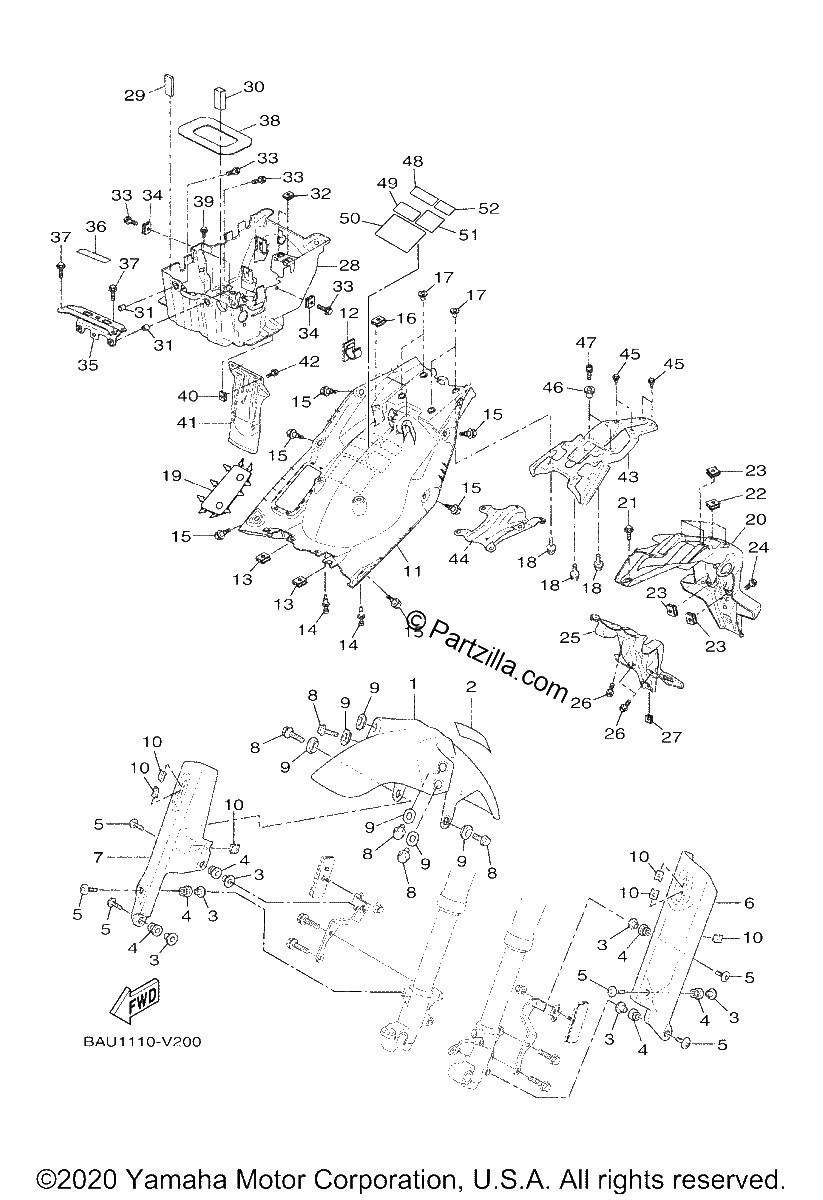

Diagrama de FENDER

Repuestos

#1
BAU-21511-00-P0
FENDER, FRONT
$367.89¢183 944
1
#2
BAU-2414G-00-00
SEAL
$5.02¢2 512
1
#3
90387-06265-00
COLLAR
$9.55¢4 775
1
#4
90480-12072-00
GROMMET
$7.94¢3 969
1
#5
90111-06155-00
BOLT, HEX. SOCKET BUTTON
$2.07¢1 037
1
#6
BW3-F315H-00-00
PROTECTOR 1
$48.22¢24 112
1
#7
BW3-F315J-00-00
PROTECTOR 2
$48.22¢24 112
1
#8
90105-06170-00
BOLT, FLANGE
$5.05¢2 525
1
#9
17D-21749-00-00
Collar
$17.01¢8 506
1
#10
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#11
BW3-F1629-00-00
GUARD, MUD
$88.42¢44 213
1
#12
90464-13185-00
CLAMP
$4.59¢2 294
1
#13
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#14
90269-08010-00
RIVET
$3.21¢1 606
1
#15
90149-05042-00
SCREW
$3.33¢1 663
1
#16
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#17
90387-08073-00
COLLAR
$9.46¢4 731
1
#18
90119-06179-00
BOLT, WITH WASHER
$7.94¢3 969
1
#19
BW3-F1669-00-00
SEAL
$12.64¢6 319
1
#20
BW3-F1685-00-00
BRACKET, LICENSE
$72.99¢36 494
1
#21
90149-05042-00
SCREW
$3.33¢1 663
1
#22
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#23
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#24
90149-05042-00
SCREW
$3.33¢1 663
1
#25
BW3-F163A-00-00
COVER, REAR FENDER 1
$62.36¢31 181
1
#26
90149-05042-00
SCREW
$3.33¢1 663
1
#27
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#28
BW3-H212B-00-00
BOX, BATTERY 1
$145.63¢72 813
1
#29
90520-06X02-00
DAMPER, PLATE
$1.19¢594
1
#30
90520-10X06-00
DAMPER, PLATE
$1.19¢594
1
#31
90387-07015-00
Collar
$1.19¢594
1
#32
90183-04039-00
NUT, SPRING
$7.03¢3 513
1
#33
95812-06014-00
BOLT, FLANGE
$6.49¢3 244
1
#34
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#35
BW3-21617-20-00
BRACKET, FENDER
$34.85¢17 425
1
#36
3HA-24141-00-00
PROTECTOR, FUEL TANK
$13.71¢6 856
1
#37
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#38
BW3-21639-00-00
DAMPER 2
$9.00¢4 500
1
#39
90149-05042-00
SCREW
$3.33¢1 663
1
#40
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#41
BW3-F1642-00-00
GUARD, FLAP
$50.60¢25 300
1
#42
90149-05045-00
SCREW
$5.22¢2 613
1
#43
BW3-F1613-00-00
STAY, FENDER 1
$76.84¢38 419
1
#44
BW3-21671-00-00
REINF., REAR FENDER
$41.94¢20 969
1
#45
90149-05042-00
SCREW
$3.33¢1 663
1
#46
90387-06X68-00
COLLAR
$11.15¢5 575
1
#47
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$3.16¢1 581
1
#48
3JJ-28446-A1-00
LABEL, CAUTION
$4.94¢2 469
1
#49
BAU-21668-00-00
LABEL, TIRE
$2.97¢1 487
1
#50
BAU-2815P-00-00
LABEL, NOTICE 1
$11.50¢5 750
1
#51
4B5-21686-00-00
PLATE, ROUTING 2 | FOR CAL
$6.65¢3 325
1
#52
3SA-24877-A0-00
LABEL, CAUTION
No Disponible
1
