SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

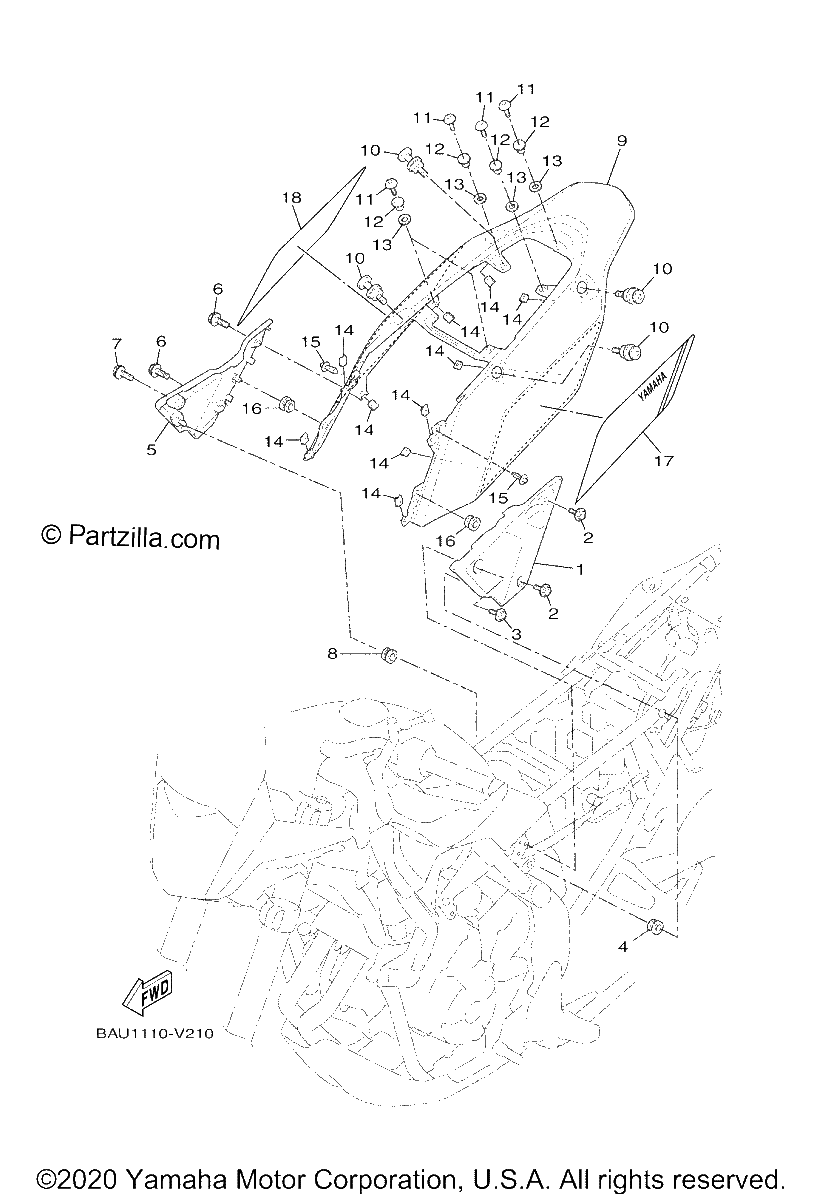

Diagrama de SIDE COVER

Repuestos

#1
BW3-F1711-00-00
COVER, SIDE 1
$42.04¢21 022
1
#2
90149-05042-00
SCREW
$3.06¢1 529
1
#3
90149-05045-00
SCREW
$4.81¢2 403
1
#4
90480-01558-00
Grommet
$4.31¢2 156
1
#5
BW3-F1721-00-00
COVER, SIDE 2
$42.04¢21 022
1
#6
90149-05042-00
SCREW
$3.06¢1 529
1
#7
90149-05045-00
SCREW
$4.81¢2 403
1
#8
90480-01558-00
Grommet
$4.31¢2 156
1
#9
BAU-21731-00-P0
COVER, SIDE 3
$459.67¢229 833
1
#9
BAU-21731-00-P2
COVER, SIDE 3
$409.39¢204 694
1
#9
BAU-21731-00-P1
COVER, SIDE 3
$459.99¢229 994
1
#10
BW3-F162A-00-00
HOOK
$38.73¢19 366
1
#11
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#12
90387-06255-00
COLLAR
$6.69¢3 347
1
#13
90202-08006-00
WASHER, PLATE
$1.91¢954
1
#14
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#15
90269-06019-00
RIVET
$3.19¢1 593
1
#16
90480-13567-00
GROMMET
$4.25¢2 128
1
#17
BAU-2173E-00-00
GRAPHIC 1
$31.36¢15 680
1
#17
BAU-2173E-10-00
GRAPHIC 1
$37.35¢18 676
1
#18
BAU-2173F-00-00
GRAPHIC 2
$31.36¢15 680
1
#18
BAU-2173F-10-00
GRAPHIC 2
$37.35¢18 676
1
