ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

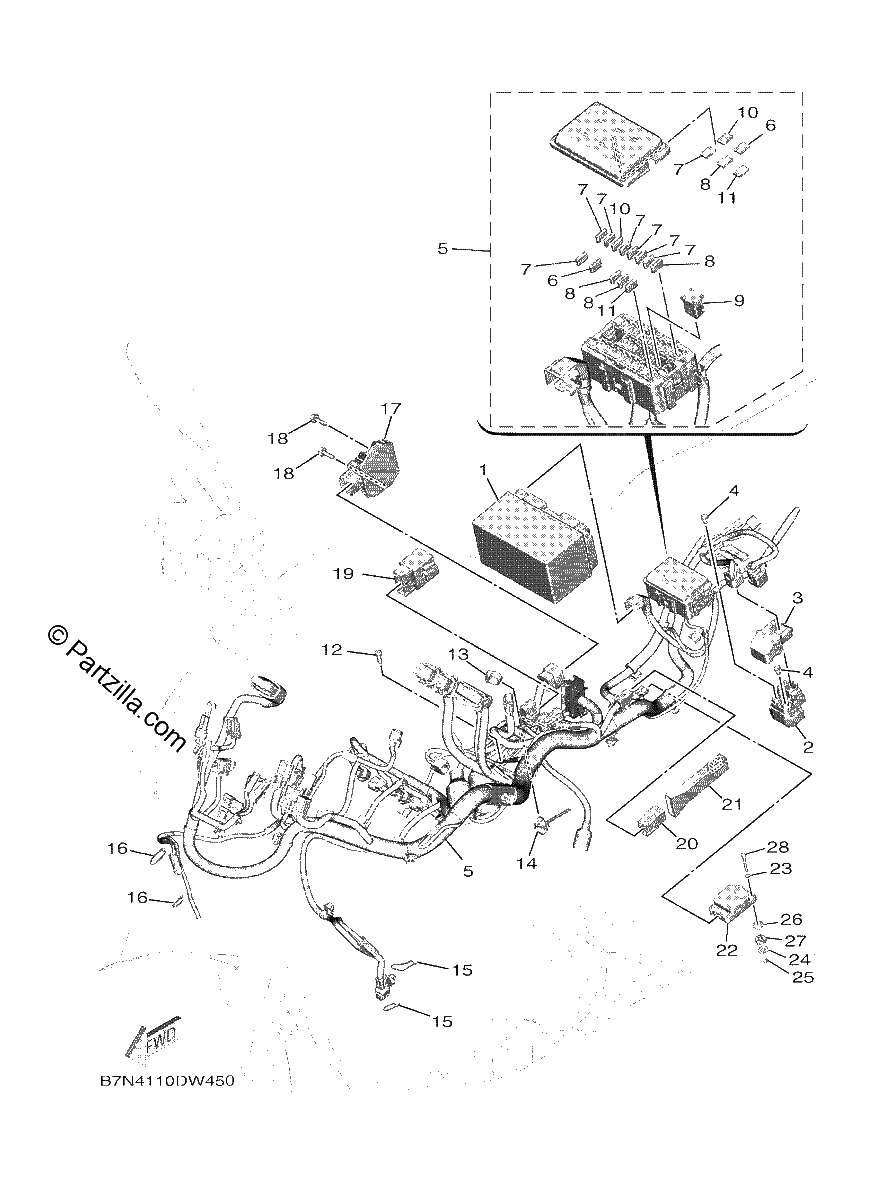

Diagrama de ELECTRICAL 1

Repuestos

#1
5VY-82100-00-00
BATTERY ASSY (YUASA YTZ10S)
$235.21¢117 606
1
#2
B7N-81940-00-00
STARTER RELAY ASSY
$62.16¢31 081
1
#3
5SL-82119-30-00
COVER, LEAD WIRE
$5.06¢2 531
1
#4
90105-06230-00
BOLT, FLANGE
$0.45¢225
1
#5
B7N-82590-10-00
WIRE HARNESS ASSY
$1063.74¢531 869
1
#6
B7N-82151-80-00
. FUSE (2A)
$13.77¢6 887
1
#7
B7N-82151-00-00
. FUSE (75A)
$13.77¢6 887
1
#8
B7N-82151-10-00
. FUSE (15A)
$13.77¢6 887
1
#9
B7N-82151-B0-00
. FUSE (50A)
$17.56¢8 781
1
#10
B7N-82151-30-00
. FUSE (10A)
$13.77¢6 887
1
#11
B7N-82151-60-00
. FUSE (30A)
$13.77¢6 887
1
#12
91312-06016-00
BOLT
$5.84¢2 919
1
#13
90464-16003-00
CLAMP
$7.46¢3 731
1
#14
90464-25009-00
CLAMP
$7.56¢3 781
1
#15
90465-10098-00
CLAMP
$2.78¢1 388
1
#16
90465-10098-00
CLAMP
$2.78¢1 388
1
#17
2CR-81960-00-00
RECTIFIER REGULATOR ASSY
$178.46¢89 231
1
#18
95D37-06020-00
BOLT, FLANGE DEEP RECESS
$0.47¢238
1
#19
5VK-81950-41-00
RELAY ASSY (replaces 5VK-81950-40-00)
$70.70¢35 350
1
#20
5UM-81950-E0-00
RELAY ASSY (5UM-E0)
$21.74¢10 869
1
#21
B5U-82599-00-00
COVER, CONNECTOR
$10.65¢5 325
1
#22
B7N-8593A-00-00
INERTIAL MEASURE, UNIT ASSY
$529.81¢264 906
1
#23
92902-04600-00
WASHER, PLATE
$1.20¢600
1
#24
90201-04034-00
WASHER, PLATE
$1.39¢694
1
#25
95607-04100-00
.. NUT, U
$8.53¢4 263
1
#26
B7N-83522-00-00
COLLAR
$2.82¢1 412
1
#27
B7N-8A8D0-00-00
GROMMET
$3.86¢1 931
1
#28
91317-04030-00
BOLT,HEX.SOCKET HEAD
$4.35¢2 175
1
