CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

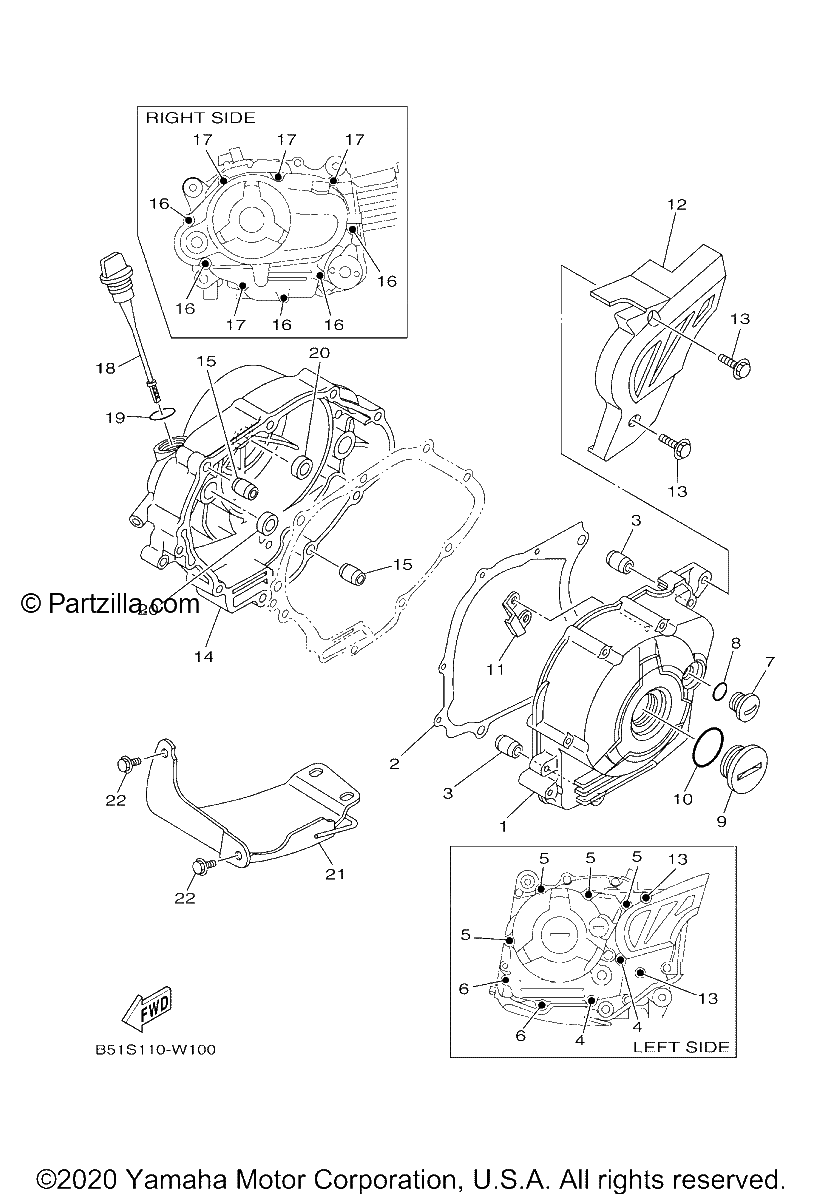

Diagrama de CRANKCASE COVER 1

Repuestos

#1
5B6-E5411-00-00
COVER, CRANKCASE 1
$439.39¢219 696
1
#2
3S0-E5451-00-00
GASKET, CRANKCASE COVER 1
$9.56¢4 778
1
#3
91810-14809-00
PIN, DOWEL
$2.77¢1 386
1
#4
95022-06040-00
Bolt, Flange
$3.29¢1 644
1
#5
95022-06050-00
BOLT, FLANGE
$1.56¢782
1
#6
95022-06080-00
BOLT, FLANGE (replaces 9502L-06080-00)
$3.86¢1 932
1
#7
90340-14812-00
PLUG, STRAIGHT SCREW
$9.00¢4 502
1
#8
93210-14369-00
O-Ring
$6.36¢3 180
1
#9
90340-32806-00
PLUG, STRAIGHT SCREW
$8.75¢4 376
1
#10
93210-32172-00
O-Ring
$6.32¢3 162
1
#11
5TP-E5113-00-00
PLATE
$0.70¢351
1
#12
5B6-15418-00-00
COVER, CHAIN CASE
$45.08¢22 540
1
#13
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#14
5B6-E5421-00-00
COVER, CRANKCASE 2
$163.51¢81 754
1
#15
91810-14809-00
PIN, DOWEL
$2.77¢1 386
1
#16
95022-06040-00
Bolt, Flange
$3.29¢1 644
1
#17
95022-06050-00
BOLT, FLANGE
$1.56¢782
1
#18
5B6-E5362-00-00
PLUG, OIL LEVEL
$9.60¢4 801
1
#19
93210-19522-00
O-RING
$6.43¢3 214
1
#20
93101-10142-00
OIL SEAL
$6.73¢3 364
1
#21
5B6-E5436-00-00
COVER, STARTING MOTOR
$64.85¢32 424
1
#22
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
