GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

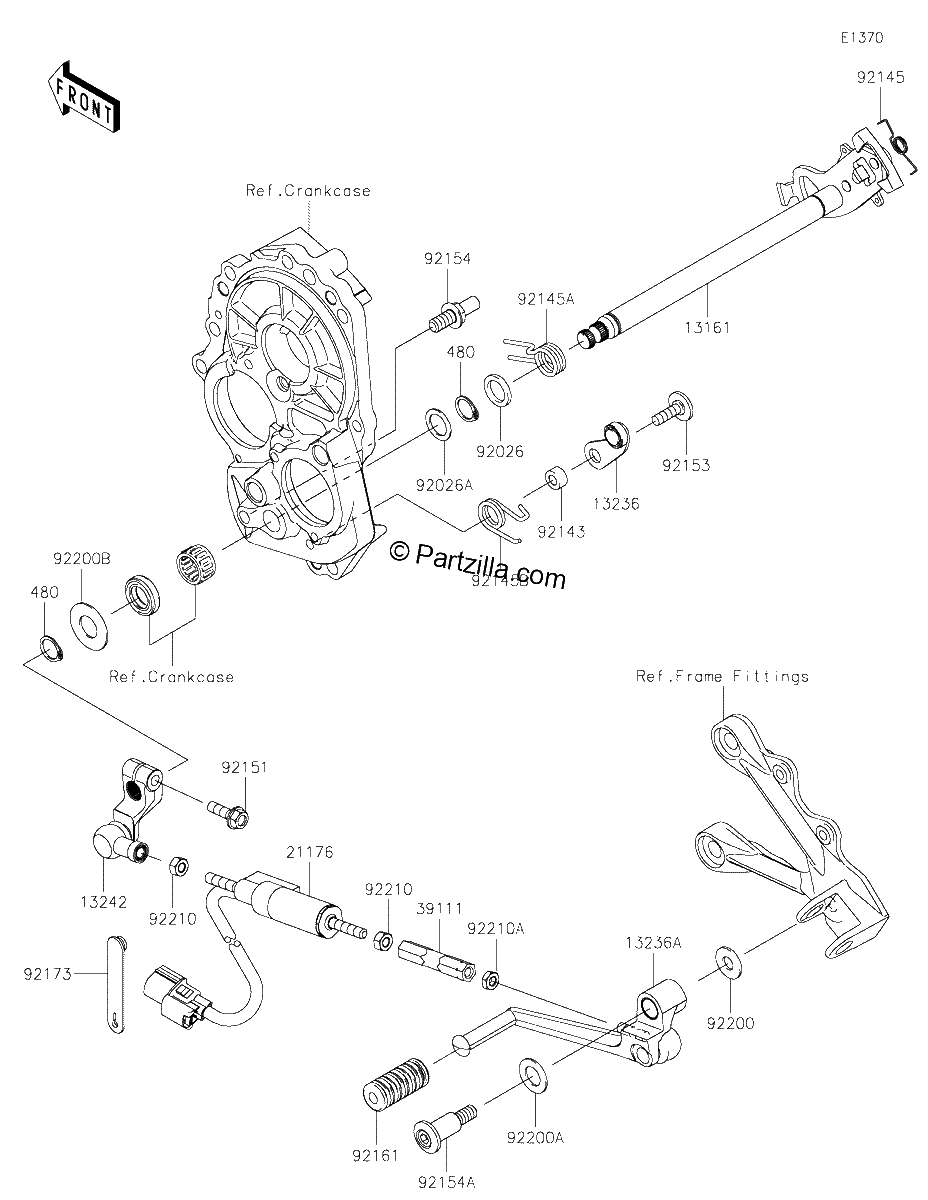

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.96¢2 481
1
#13161
13161-0611
LEVER COMP CHANGE SHAFT
$107.60¢53 800
1
#13236
13236-0114
LEVER-COMP,POSITION
$14.63¢7 313
1
#13236A
13236-0809
LEVER COMP,CHANGE PEDAL
$128.44¢64 219
1
#13242
13242-0155
LEVER Assembly CHANGE
$60.39¢30 194
1
#21176
21176-0901
SENSOR,QUICK SHIFTER
$257.47¢128 737
1
#39111
39111-0360
ROD TIE
$34.99¢17 494
1
#92026A
92026-1534
SPACER,14X20X1.0
$4.50¢2 250
1
#92026
92026-0107
SPACER,14X20X2.3
$5.47¢2 738
1
#92143
92143-1595
COLLAR
$10.79¢5 394
1
#92145B
92145-0717
SPRING,DRUM POSITION
$5.27¢2 637
1
#92145A
92145-0415
SPRING,RETURN
$13.25¢6 625
1
#92145
92145-0414
SPRING
$10.51¢5 256
1
#92151
92151-1226
BOLT,FLANGED,6X20
$2.29¢1 144
1
#92153
92153-1505
BOLT,6X20
$8.91¢4 456
1
#92154A
92154-4342
BOLT,SOCKET,8X37
$10.91¢5 456
1
#92154
92154-1838
BOLT,RETURN SPRING
$10.31¢5 156
1
#92161
92161-2389
DAMPER,CHANGE PEDAL
$6.05¢3 025
1
#92173
92173-1526
CLAMP
$4.16¢2 081
1
#92200B
92200-0265
WASHER
$2.41¢1 206
1
#92200A
92200-0199
WASHER,12.5X22X1.2
$3.01¢1 506
1
#92200
92200-0198
WASHER,8.5X20X1.5
$3.01¢1 506
1
#92210
92210-1100
NUT,6MM
$2.19¢1 094
1
#92210A
92210-1101
NUT,LEFT HANDED,6MM
$1.56¢781
1
