RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

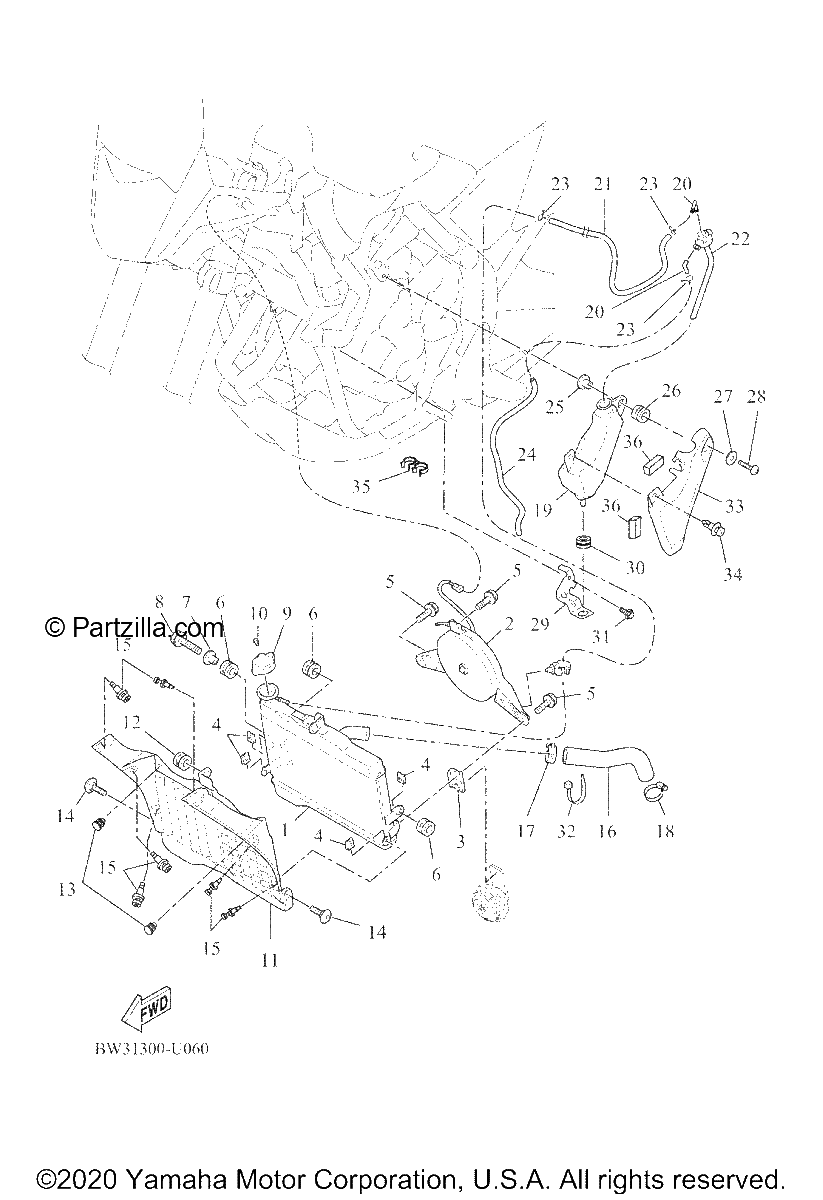

Diagrama de RADIATOR HOSE

Repuestos

#1
BW3-12461-00-00
RADIATOR COMP
$293.51¢146 757
1
#2
BW3-12405-00-00
BLOWER ASSY
$293.34¢146 671
1
#3
BW3-21343-00-00
BRACKET, HORN
$15.59¢7 797
1
#4
1WS-12671-00-00
NUT 1
$3.29¢1 644
1
#5
2S3-12675-00-00
BOLT, BLOWER HOLDING
$7.23¢3 617
1
#6
90480-15363-00
GROMMET
$6.75¢3 375
1
#7
90387-07391-00
COLLAR
$8.49¢4 244
1
#8
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#9
B67-12462-10-00
Cap, Radiator
$47.75¢23 874
1
#10
91317-03006-00
bolt
$8.08¢4 042
1
#11
BW3-E2498-00-00
PROTECTOR
$254.22¢127 110
1
#12
90480-15363-00
GROMMET
$6.75¢3 375
1
#13
90338-07043-00
PLUG
$6.03¢3 013
1
#14
90109-06320-00
bolt
$7.42¢3 709
1
#15
90269-08010-00
RIVET
$2.96¢1 478
1
#16
BW3-12578-00-00
HOSE 3
$12.52¢6 262
1
#17
90467-290A0-00
CLIP
$16.09¢8 044
1
#18
90450-35001-00
HOSE CLAMP ASSY
$5.76¢2 881
1
#19
BW3-F1871-10-00
TANK, RECOVERY
$57.13¢28 566
1
#20
26H-21828-00-00
ELBOW
$24.05¢12 023
1
#21
90445-08X13-00
HOSE
$7.34¢3 669
1
#22
2C0-21875-00-00
CAP
$15.65¢7 826
1
#23
90467-08021-00
CLIP
$6.75¢3 375
1
#24
90445-08X12-00
HOSE
$5.04¢2 519
1
#25
90387-06236-00
COLLAR
$7.10¢3 548
1
#26
90480-18411-00
GROMMET
$9.79¢4 893
1
#27
90201-06029-00
WASHER, PLATE
$5.09¢2 547
1
#28
90111-06068-00
BOLT
$2.82¢1 409
1
#29
BW3-21873-00-00
BRACKET, RECOVERY TANK
$34.02¢17 008
1
#30
90480-01559-00
Grommet
$5.27¢2 633
1
#31
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 455
1
#32
90464-07M40-00
CLAMP
$15.25¢7 624
1
#33
BW3-F172W-00-00
COVER
$31.03¢15 513
1
#34
90269-08010-00
RIVET
$2.96¢1 478
1
#35
90464-06008-00
CLAMP
$1.78¢891
1
#36
90520-05018-00
DAMPER, PLATE
$0.80¢402
1
