CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

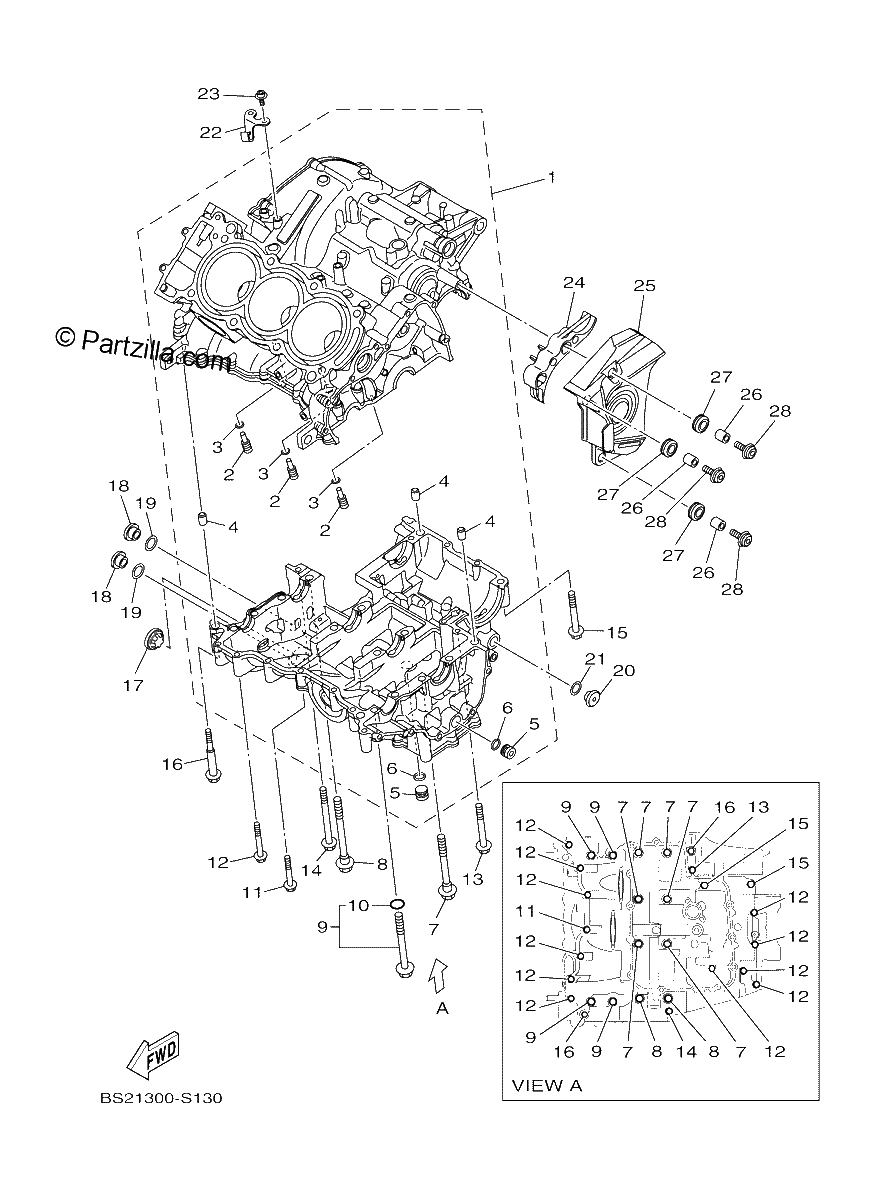

Diagrama de CRANKCASE

Repuestos

#1
BS2-15100-09-00
Crankcase Assy
$3744.99¢1 872 494
1
#2
5EB-15155-00-00
NOZZLE 3
$14.65¢7 325
1
#3
93210-04092-00
O-RING
$3.44¢1 719
1
#4
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#5
90338-16262-00
PLUG
$13.77¢6 887
1
#6
93210-12790-00
O-RING
$6.85¢3 425
1
#7
90119-09013-00
BOLT, WITH WASHER
$12.75¢6 375
1
#8
90119-09010-00
BOLT, WITH WASHER
$13.70¢6 850
1
#9
23P-15156-00-00
BOLT, CRANKCASE JOURNAL
$11.34¢5 669
1
#10
93210-07540-00
O-RING
$6.88¢3 438
1
#11
95812-06040-00
BOLT, FLANGE
$5.41¢2 706
1
#12
95812-06050-00
BOLT, FLANGE
$1.80¢900
1
#13
95812-06065-00
BOLT, FLANGE
$6.14¢3 069
1
#14
90105-06202-00
BOLT, FLANGE
$1.95¢975
1
#15
95812-08060-00
BOLT, FLANGE
$3.89¢1 944
1
#16
90109-06100-00
BOLT
$9.06¢4 531
1
#17
2H7-15361-00-00
GAUGE, LEVEL
$102.81¢51 406
1
#18
36Y-15189-00-00
PLUG
$14.34¢7 169
1
#19
93210-16325-00
O-RING
$6.99¢3 494
1
#20
90340-14011-00
PLUG, STRAIGHT SCREW
$23.49¢11 744
1
#21
93210-14369-00
O-Ring
$6.91¢3 456
1
#22
1RC-15441-00-00
HOLDER, CLUTCH CABLE
$9.60¢4 800
1
#23
90110-06108-00
BOLT, HEXAGON SOCKET HEAD
$3.09¢1 544
1
#24
1RC-15377-00-00
GUIDE, INLET
$30.65¢15 325
1
#25
BS2-15418-00-00
COVER, CHAIN CASE
$27.69¢13 844
1
#26
90387-06286-00
COLLAR
$1.95¢975
1
#27
90480-13018-00
GROMMET
$7.43¢3 713
1
#28
90111-06130-00
BOLT, HEX. SOCKET BUTTON
$4.49¢2 244
1
