SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

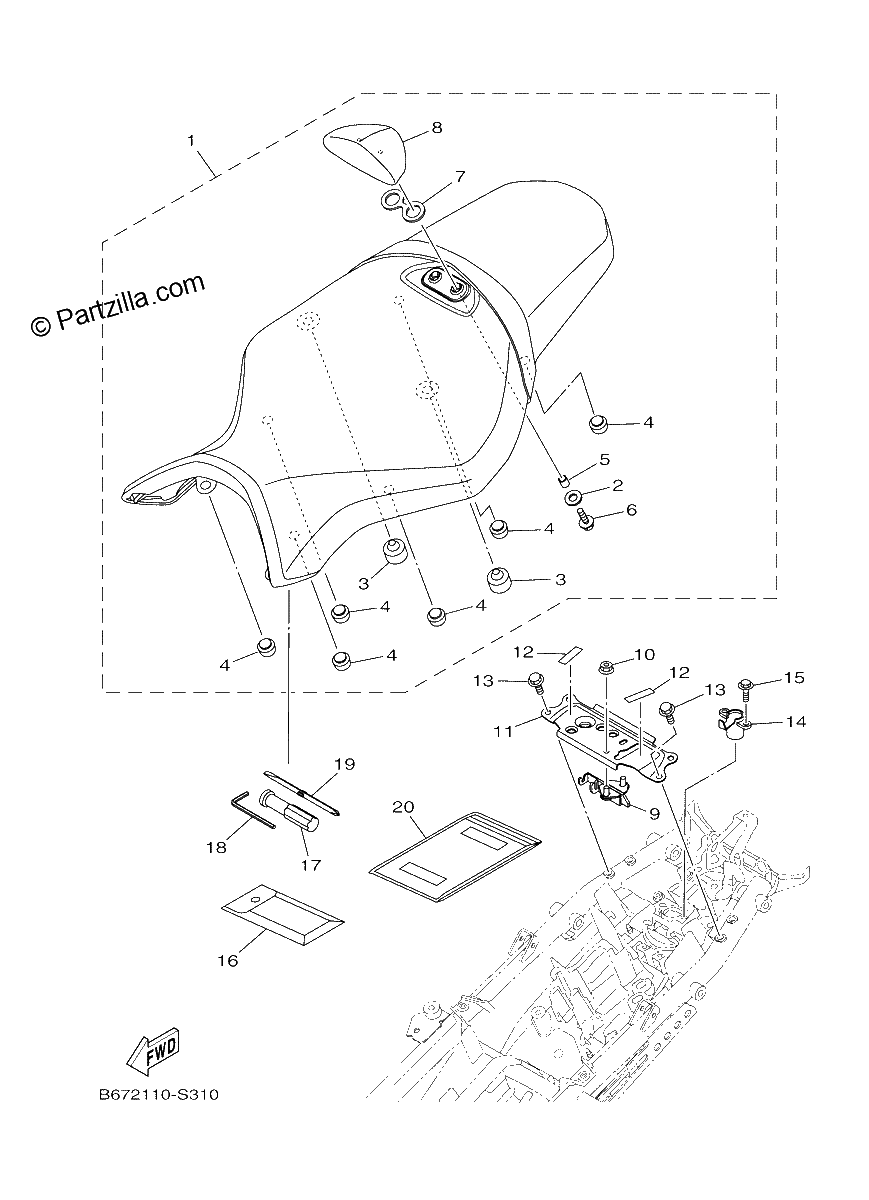

Diagrama de SEAT

Repuestos

#1
B67-24730-02-00
DOUBLE SEAT ASSY
$334.68¢167 342
1
#2
90201-06085-00
WASHER, PLATE
$3.04¢1 518
1
#3
4GL-27114-00-00
STOPPER, MAIN STAND
$15.65¢7 826
1
#4
157-27114-00-00
STOPPER, MAIN STAND
$9.49¢4 744
1
#5
5BN-2475Y-00-00
. COLLAR
$3.22¢1 610
1
#6
95822-06020-00
Bolt, Flange
$3.05¢1 524
1
#7
B67-28429-00-00
SEAL 2
$2.82¢1 409
1
#8
B67-24790-01-00
. SEAT BACK ASSY
$61.49¢30 745
1
#9
4BP-24780-00-00
SEAT LOCK ASSY
$104.11¢52 055
1
#10
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#11
B67-2478X-00-00
BRACKET, SEAT LOCK
$33.66¢16 830
1
#12
3P6-28228-00-00
SEAL 2
$10.19¢5 094
1
#13
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#14
1RC-W2470-00-00
ROTOR SET
$77.72¢38 859
1
#15
95022-06014-00
BOLT, FLANGE
$2.89¢1 443
1
#16
B67-28100-00-00
Tool Kit
$58.99¢29 497
1
#17
2H7-28151-00-00
GRIP, DRIVER
$6.51¢3 254
1
#18
23P-28164-00-00
WRENCH, HEXAGON 8
$2.99¢1 495
1
#19
137-28152-00-00
DRIVER
$3.78¢1 892
1
#20
4KG-28186-11-00
POUCH
$7.81¢3 904
1
